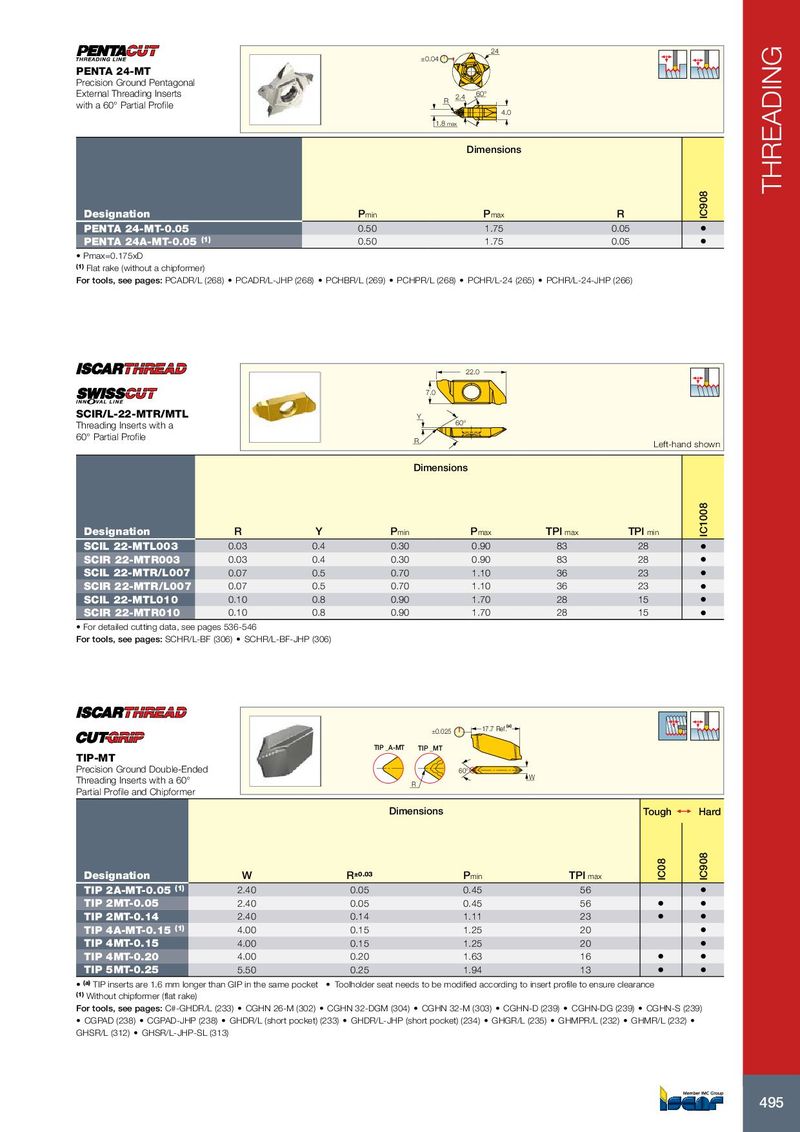

Каталог Iscar токарный инструмент 2017 - страница 499

THREADING
24
±0.04
PENTA 24-MT
Precision Ground Pentagonal
External Threading Inserts 2.4 60°
R
with a 60° Partial Profile
4.0
1.8 max

Dimensions


IC908
Designation Pmin Pmax R
PENTA 24-MT-0.05 0.50 1.75 0.05 •
PENTA 24A-MT-0.05 (1) 0.50 1.75 0.05 •
• Pmax=0.175xD
(1) Flat rake (without a chipformer)
For tools, see pages: PCADR/L (268) • PCADR/L-JHP (268) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-24 (265) • PCHR/L-24-JHP (266)


22.0
7.0

SCIR/L-22-MTR/MTL Y
Threading Inserts with a 60°
60° Partial Profile R
Left-hand shown
Dimensions


IC1008
Designation R Y Pmin Pmax TPI max TPI min
SCIL 22-MTL003 0.03 0.4 0.30 0.90 83 28 •
SCIR 22-MTR003 0.03 0.4 0.30 0.90 83 28 •
SCIL 22-MTR/L007 0.07 0.5 0.70 1.10 36 23 •
SCIR 22-MTR/L007 0.07 0.5 0.70 1.10 36 23 •
SCIL 22-MTL010 0.10 0.8 0.90 1.70 28 15 •
SCIR 22-MTR010 0.10 0.8 0.90 1.70 28 15 •
• For detailed cutting data, see pages 536-546
For tools, see pages: SCHR/L-BF (306) • SCHR/L-BF-JHP (306)


±0.025 17.7 Ref.(a)
TIP _A-MT TIP _MT
TIP-MT
Precision Ground Double-Ended 60°
W
Threading Inserts with a 60° R
Partial Profile and Chipformer
Dimensions Tough 1 Hard
IC908
IC08


Designation W R±0.03 Pmin TPI max
TIP 2A-MT-0.05 (1) 2.40 0.05 0.45 56 •
TIP 2MT-0.05 2.40 0.05 0.45 56 • •
TIP 2MT-0.14 2.40 0.14 1.11 23 • •
TIP 4A-MT-0.15 (1) 4.00 0.15 1.25 20 •
TIP 4MT-0.15 4.00 0.15 1.25 20 •
TIP 4MT-0.20 4.00 0.20 1.63 16 • •
TIP 5MT-0.25 5.50 0.25 1.94 13 • •
• (a) TIP inserts are 1.6 mm longer than GIP in the same pocket • Toolholder seat needs to be modified according to insert profile to ensure clearance
(1) Without chipformer (flat rake)
For tools, see pages: C#-GHDR/L (233) • CGHN 26-M (302) • CGHN 32-DGM (304) • CGHN 32-M (303) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239)
• CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233) • GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) •
GHSR/L (312) • GHSR/L-JHP-SL (313)


495
