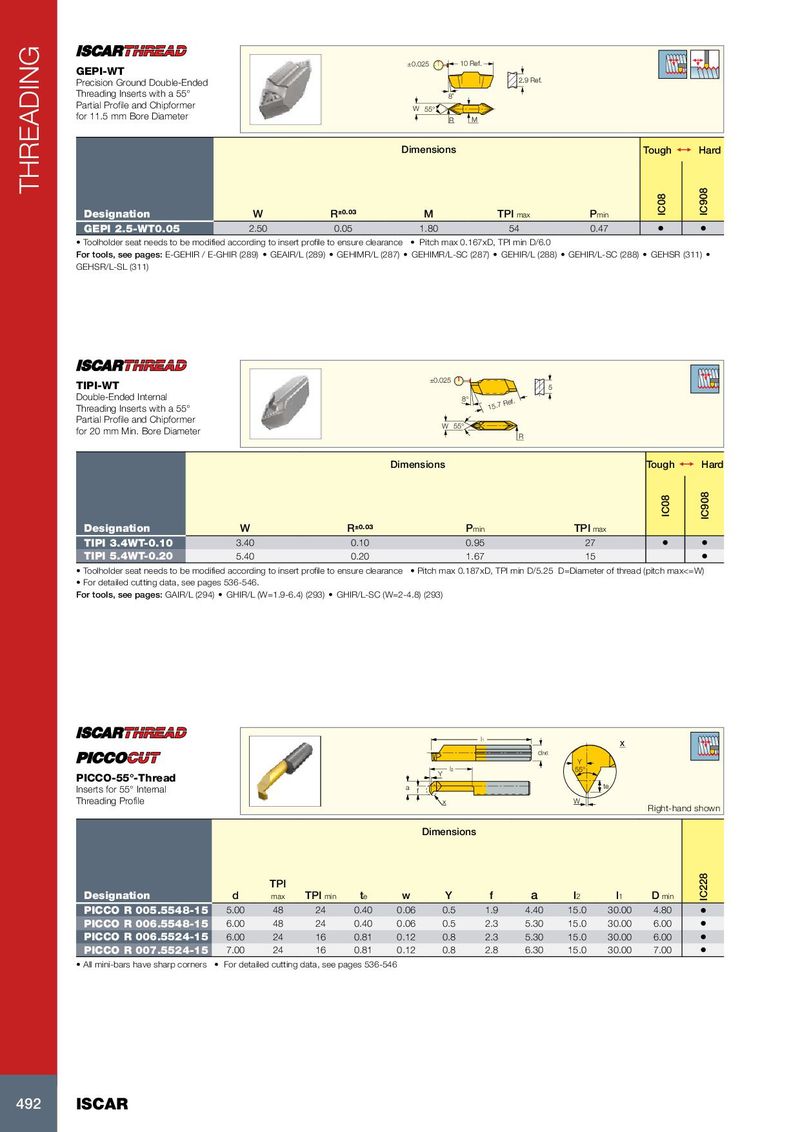

THREADING
±0.025 10 Ref.
GEPI-WT
Precision Ground Double-Ended 2.9 Ref.
Threading Inserts with a 55° 8˚
Partial Profile and Chipformer W 55°
for 11.5 mm Bore Diameter R M

Dimensions Tough 1 Hard


IC908
IC08
Designation W R±0.03 M TPI max Pmin
GEPI 2.5-WT0.05 2.50 0.05 1.80 54 0.47 • •
• Toolholder seat needs to be modified according to insert profile to ensure clearance • Pitch max 0.167xD, TPI min D/6.0
For tools, see pages: E-GEHIR / E-GHIR (289) • GEAIR/L (289) • GEHIMR/L (287) • GEHIMR/L-SC (287) • GEHIR/L (288) • GEHIR/L-SC (288) • GEHSR (311) •
GEHSR/L-SL (311)


±0.025
TIPI-WT 5
Double-Ended Internal 8° f.
Re
Threading Inserts with a 55° 15.7
Partial Profile and Chipformer
W 55°
for 20 mm Min. Bore Diameter R

Dimensions Tough 1 Hard


IC908
IC08
Designation W R±0.03 Pmin TPI max
TIPI 3.4WT-0.10 3.40 0.10 0.95 27 • •
TIPI 5.4WT-0.20 5.40 0.20 1.67 15 •
• Toolholder seat needs to be modified according to insert profile to ensure clearance • Pitch max 0.187xD, TPI min D/5.25 D=Diameter of thread (pitch max<=W)
• For detailed cutting data, see pages 536-546.
For tools, see pages: GAIR/L (294) • GHIR/L (W=1.9-6.4) (293) • GHIR/L-SC (W=2-4.8) (293)


l1
X
dh6
Y
l2 55°
Y
PICCO-55°-Thread
a te
Inserts for 55° Internal f
Threading Profile x W
Right-hand shown
Dimensions
IC228


TPI
Designation d max TPI min te w Y f a l2 l1 D min
PICCO R 005.5548-15 5.00 48 24 0.40 0.06 0.5 1.9 4.40 15.0 30.00 4.80 •
PICCO R 006.5548-15 6.00 48 24 0.40 0.06 0.5 2.3 5.30 15.0 30.00 6.00 •
PICCO R 006.5524-15 6.00 24 16 0.81 0.12 0.8 2.3 5.30 15.0 30.00 6.00 •
PICCO R 007.5524-15 7.00 24 16 0.81 0.12 0.8 2.8 6.30 15.0 30.00 7.00 •
• All mini-bars have sharp corners • For detailed cutting data, see pages 536-546
