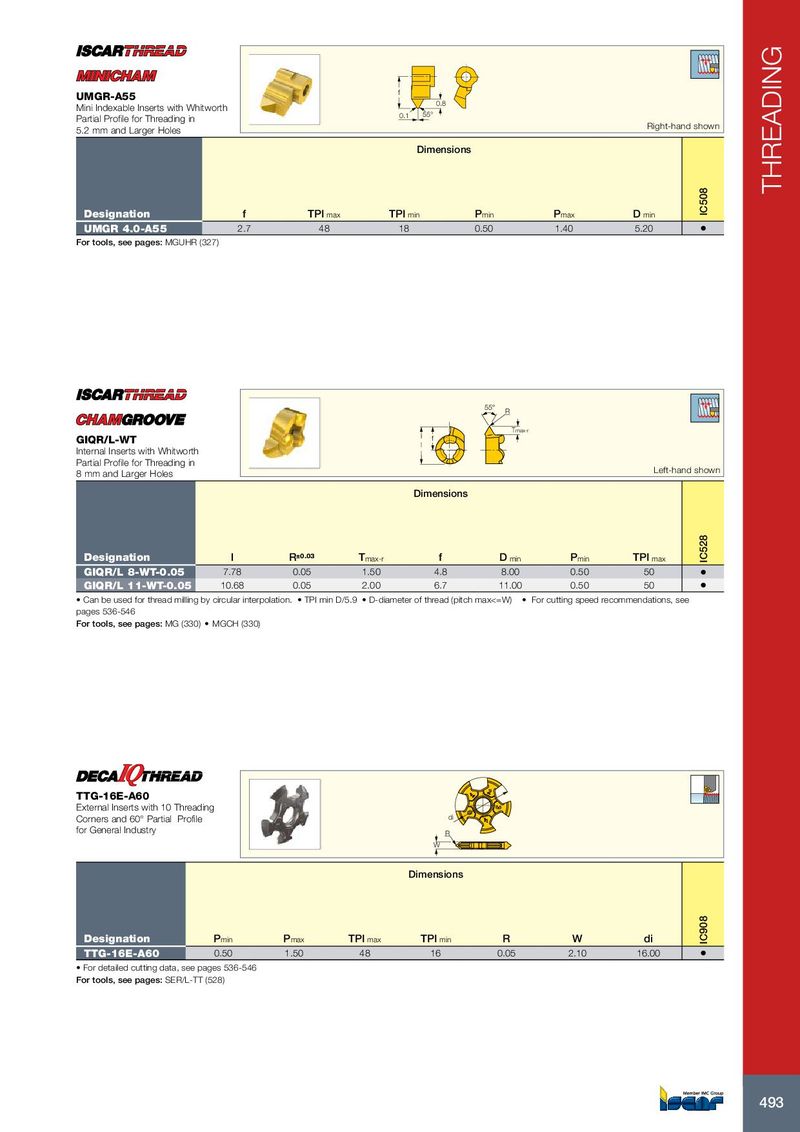

UMGR-A55 f Mini Indexable Inserts with Whitworth 0.8
Partial Profile for Threading in 0.1 55°
5.2 mm and Larger Holes Right-hand shown Dimensions
| Designation | f | TPI max | TPI min | Pmin | Pmax | D min | |
| UMGR 4.0-A55 | 2.7 | 48 | 18 | 0.50 | 1.40 | 5.20 | • |
For tools, see pages: MGUHR (327)
GIQR/L-WT f l Internal Inserts with Whitworth Partial Profile for Threading in 8 mm and Larger Holes Dimensions
55° R Tmax-r
Left-hand shown
| Designation | l | R ±0.03 | Tmax-r | f | D min | Pmin | TPI max | ||
| GIQR/L 8-WT-0.05 | 7.78 | 0.05 | 1.50 | 4.8 | 8.00 | 0.50 | 50 | • | |
| GIQR/L 11-WT-0.05 | 10.68 | 0.05 | 2.00 | 6.7 | 11.00 | 0.50 | 50 | • |
- Can be used for thread milling by circular interpolation.
- TPI min D/5.9
- D-diameter of thread (pitch max<=W)
- For cutting speed recommendations, see
pages 536-546 For tools, see pages: MG (330) MGCH (330)
TTG-16E-A60
External Inserts with 10 Threading Corners and 60° Partial Profile for General Industry
di R W Dimensions
| Designation | Pmin | Pmax | TPI max | TPI min | R | W | di | |
| TTG-16E-A60 | 0.50 | 1.50 | 48 | 16 | 0.05 | 2.10 | 16.00 | • |
- For detailed cutting data, see pages 536-546
For tools, see pages: SER/L-TT (528)
