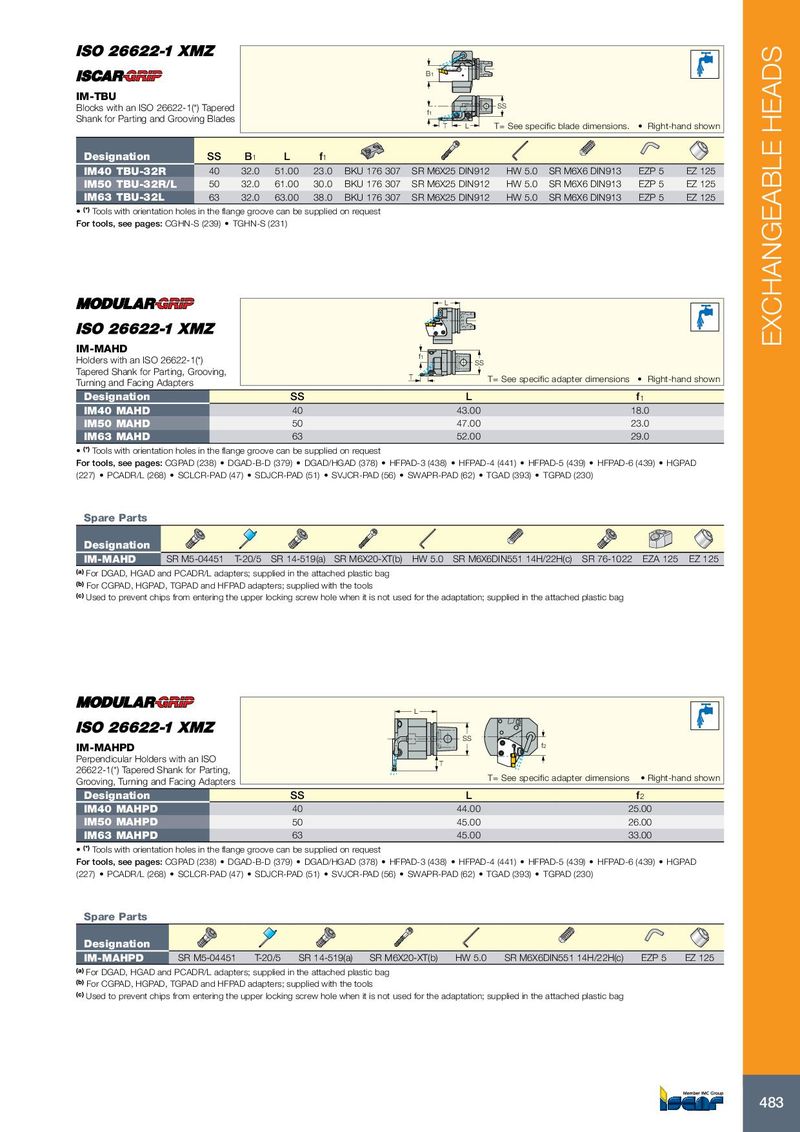

| B1 | ||||||||||
| IM-TBU Blocks with an ISO 26622-1() Shank for Parting and Groovin | Tapered g Blades | L T f1 | SS T= See spec | ific blade dimensions. | • Right- | hand shown | ||||
| Designation | SS | B1 | L | f1 | ||||||
| IM40 TBU-32R | 40 | 32.0 | 51.00 | 23.0 | BKU 176 307 | SR M6X25 DIN912 | HW 5.0 | SR M6X6 DIN913 | EZP 5 | EZ 125 |
| IM50 TBU-32R/L | 50 | 32.0 | 61.00 | 30.0 | BKU 176 307 | SR M6X25 DIN912 | HW 5.0 | SR M6X6 DIN913 | EZP 5 | EZ 125 |
| IM63 TBU-32L | 63 | 32.0 | 63.00 | 38.0 | BKU 176 307 | SR M6X25 DIN912 | HW 5.0 | SR M6X6 DIN913 | EZP 5 | EZ 125 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
For tools, see pages: CGHN-S (239) TGHN-S (231)
| L | |||
| IM-MAHD Holders with an ISO 26622-1() Tapered Shank for Parting, Grooving, Turningand FacingAdapters | SS f1 T T= See specific a | dapter dimensions • Right-hand shown | |
| Designation | SS | L | f1 |
| IM40 MAHD | 40 | 43.00 | 18.0 |
| IM50 MAHD | 50 | 47.00 | 23.0 |
| IM63 MAHD | 63 | 52.00 | 29.0 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
For tools, see pages: CGPAD (238) DGAD-B-D (379) DGAD/HGAD (378) HFPAD-3 (438) HFPAD-4 (441) HFPAD-5 (439) HFPAD-6 (439) HGPAD (227) PCADR/L (268) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62) TGAD (393) TGPAD (230)
| Spare Parts | ||||||||
| Designation | ||||||||
| IM-MAHD | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 SR M6X6DIN551 14H/22H(c) | SR 76-1022 | EZA 125 | EZ 125 |
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
| L | ||||
| IM-MAHPD | SS | f2 | ||
| Perpendicular Holders with an ISO 26622-1() Tapered Shank for Parting, Grooving, Turningand FacingAdapters | T | T= See specific adapter | dimensions • Right-hand shown | |
| Designation | SS | L | f2 | |
| IM40 MAHPD | 40 | 44.00 | 25.00 | |
| IM50 MAHPD | 50 | 45.00 | 26.00 | |
| IM63 MAHPD | 63 | 45.00 | 33.00 |
- (*) Tools with orientation holes in the flange groove can be supplied on request
For tools, see pages: CGPAD (238) DGAD-B-D (379) DGAD/HGAD (378) HFPAD-3 (438) HFPAD-4 (441) HFPAD-5 (439) HFPAD-6 (439) HGPAD (227) PCADR/L (268) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62) TGAD (393) TGPAD (230)
| Spare Parts | ||||||||
| Designation | ||||||||
| IM-MAHPD | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 | SR M6X6DIN551 14H/22H(c) | EZP 5 | EZ 125 |
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
