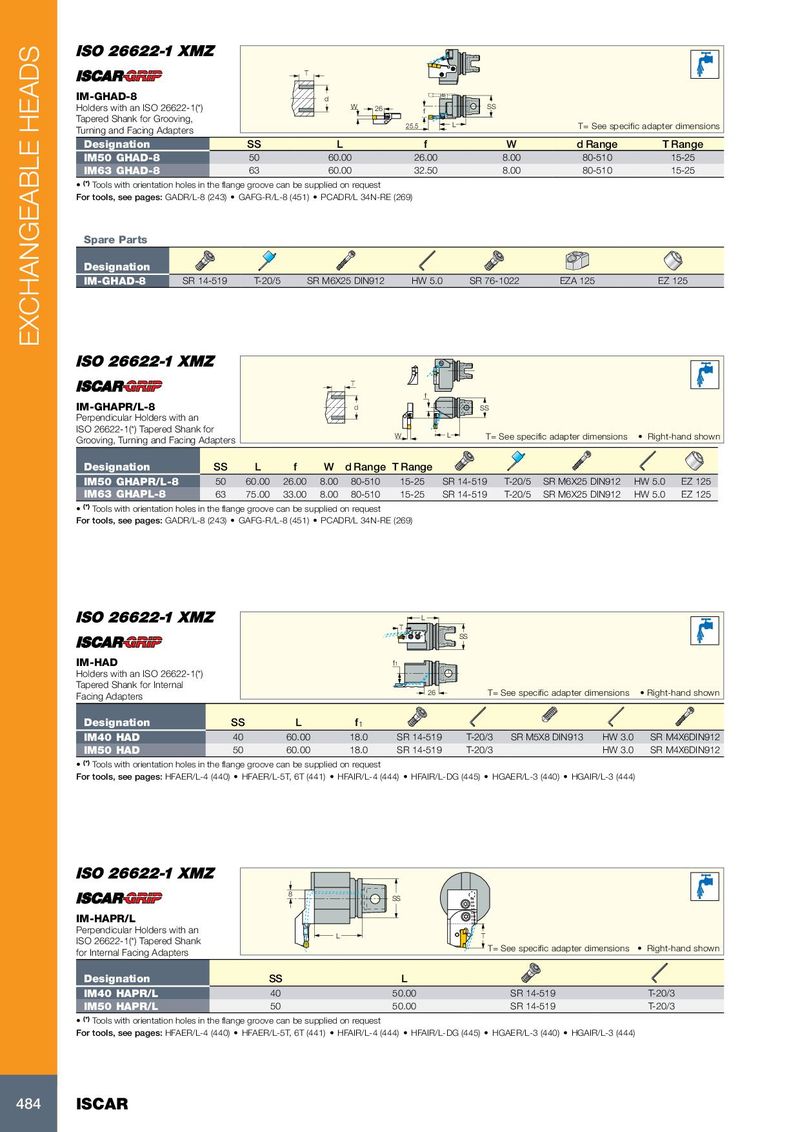

T IM-GHAD-8 d Holders with an ISO 26622-1(*) W 26 SS f Tapered Shank for Grooving, 25.5 L T= See specific adapter dimensions Turning and Facing Adapters Designation SS L f W d Range T Range IM50 GHAD-8 50 60.00 26.00 8.00 80-510 15-25 IM63 GHAD-8 63 60.00 32.50 8.00 80-510 15-25 • (*) Tools with orientation holes in the flange groove can be supplied on request For tools, see pages: GADR/L-8 (243) • GAFG-R/L-8 (451) • PCADR/L 34N-RE (269) Spare Parts Designation IM-GHAD-8 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 SR 76-1022 EZA 125 EZ 125 EXCHANGEABLE HEADS T f IM-GHAPR/L-8 d SS Perpendicular Holders with an ISO 26622-1(*) Tapered Shank for W L T= See specific adapter dimensions • Right-hand shown Grooving, Turning and Facing Adapters Designation SS L f W d Range T Range IM50 GHAPR/L-8 50 60.00 26.00 8.00 80-510 15-25 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 EZ 125 IM63 GHAPL-8 63 75.00 33.00 8.00 80-510 15-25 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 EZ 125 • (*) Tools with orientation holes in the flange groove can be supplied on request For tools, see pages: GADR/L-8 (243) • GAFG-R/L-8 (451) • PCADR/L 34N-RE (269) L T SS IM-HAD f1 Holders with an ISO 26622-1(*) Tapered Shank for Internal 26 T= See specific adapter dimensions • Right-hand shown Facing Adapters Designation SS L f 1 IM40 HAD 40 60.00 18.0 SR 14-519 T-20/3 SR M5X8 DIN913 HW 3.0 SR M4X6DIN912 IM50 HAD 50 60.00 18.0 SR 14-519 T-20/3 HW 3.0 SR M4X6DIN912 • (*) Tools with orientation holes in the flange groove can be supplied on request For tools, see pages: HFAER/L-4 (440) • HFAER/L-5T, 6T (441) • HFAIR/L-4 (444) • HFAIR/L-DG (445) • HGAER/L-3 (440) • HGAIR/L-3 (444) 8 SS IM-HAPR/L Perpendicular Holders with an L T ISO 26622-1(*) Tapered Shank T= See specific adapter dimensions • Right-hand shown for Internal Facing Adapters Designation SS L IM40 HAPR/L 40 50.00 SR 14-519 T-20/3 IM50 HAPR/L 50 50.00 SR 14-519 T-20/3 • (*) Tools with orientation holes in the flange groove can be supplied on request For tools, see pages: HFAER/L-4 (440) • HFAER/L-5T, 6T (441) • HFAIR/L-4 (444) • HFAIR/L-DG (445) • HGAER/L-3 (440) • HGAIR/L-3 (444) 484 ISCAR
