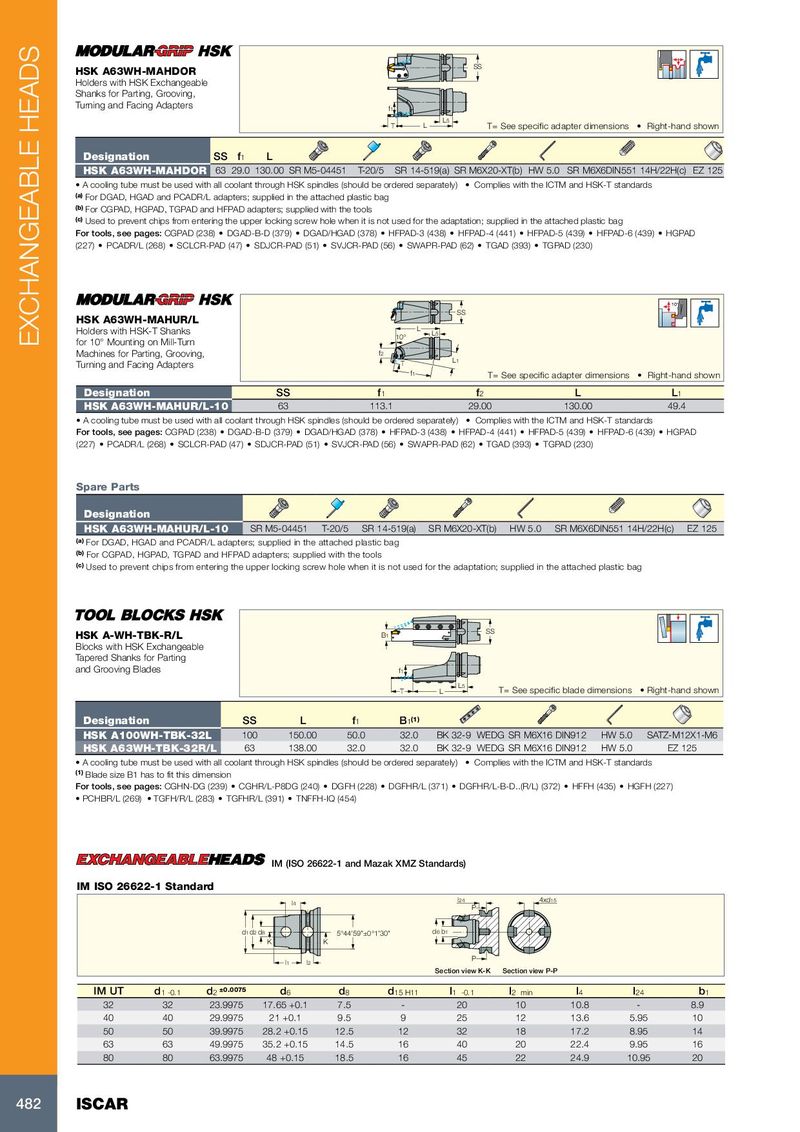

| HSK A63WH-MAHDOR Holders with HSK Exchangeable | SS | |||
| Shanks for Parting, Grooving, | ||||
| Turning and Facing Adapters | f1 | |||
| L5 T L | T= See specific adapter dimensions • Right-hand shown | |||
| Designation | SS f1 L | |||
| HSK A63WH-MAHDOR | 63 29.0 130.00 | SR M5-04451 | T-20/5 SR 14-519(a) SR | M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with the ICTM and HSK-T standards
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag For tools, see pages: CGPAD (238) DGAD-B-D (379) DGAD/HGAD (378) HFPAD-3 (438) HFPAD-4 (441) HFPAD-5 (439) HFPAD-6 (439) HGPAD (227) PCADR/L (268) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62) TGAD (393) TGPAD (230)
| HSK A63WH-MAHUR/L | SS 10° | |
| Holders with HSK-T Shanks | L L5 10° | |
| for 10° Mounting on Mill-Turn Machines for Parting, Grooving, | L1 f2 | |
| Turning and Facing Adapters | T f1 T= See specific adapter dimensions • Right-hand shown | |
| Designation | SS | f1 f2 L L1 |
| HSK A63WH-MAHUR/L-10 | 63 | 113.1 29.00 130.00 49.4 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with the ICTM and HSK-T standards
For tools, see pages: CGPAD (238) DGAD-B-D (379) DGAD/HGAD (378) HFPAD-3 (438) HFPAD-4 (441) HFPAD-5 (439) HFPAD-6 (439) HGPAD (227) PCADR/L (268) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62) TGAD (393) TGPAD (230)
Spare Parts
| Designation | |||||
| HSK A63WH-MAHUR/L-10 | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 |
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
| HSK A-WH-TBK-R/L | B1 | SS | ||||||
| Blocks with HSK Exchangeable Tapered Shanks for Parting | ||||||||
| and Grooving Blades | T f1 | L L5 | T= See specific blade d | imensions | • Right-hand shown | |||
| Designation | SS | L | f1 | B1(1) | ||||
| HSK A100WH-TBK-32L | 100 | 150.00 | 50.0 | 32.0 | BK 32-9 W | EDG SR M6X16 DIN912 | HW 5.0 | SATZ-M12X1-M6 |
| HSK A63WH-TBK-32R/L | 63 | 138.00 | 32.0 | 32.0 | BK 32-9 W | EDG SR M6X16 DIN912 | HW 5.0 | EZ 125 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with the ICTM and HSK-T standards
(1) Blade size B1 has to fit this dimension For tools, see pages: CGHN-DG (239) CGHR/L-P8DG (240) DGFH (228) DGFHR/L (371) DGFHR/L-B-D..(R/L) (372) HFFH (435) HGFH (227)
- PCHBR/L (269)
- TGFH/R/L (283)
- TGFHR/L (391)
- TNFFH-IQ (454)
IM (ISO 26622-1 and Mazak XMZ Standards)
IM ISO 26622-1 Standard
| d1 | l1 l2 d8 K d2 l4 | K 5°44’59”±0 | °1’30” | d6 l24 Section view K-K P P b1 | Section view P-P 4xd15 | |||||
| IMUT | d1 -0.1 | d2±0.0075 | d6 | d8 | d15 H11 | l1 -0.1 | l2 min | l4 | l24 | b1 |
| 32 | 32 | 23.9975 | 17.65 +0.1 | 7.5 | - | 20 | 10 | 10.8 | - | 8.9 |
| 40 | 40 | 29.9975 | 21 +0.1 | 9.5 | 9 | 25 | 12 | 13.6 | 5.95 | 10 |
| 50 | 50 | 39.9975 | 28.2 +0.15 | 12.5 | 12 | 32 | 18 | 17.2 | 8.95 | 14 |
| 63 | 63 | 49.9975 | 35.2 +0.15 | 14.5 | 16 | 40 | 20 | 22.4 | 9.95 | 16 |
| 80 | 80 | 63.9975 | 48 +0.15 | 18.5 | 16 | 45 | 22 | 24.9 | 10.95 | 20 |
