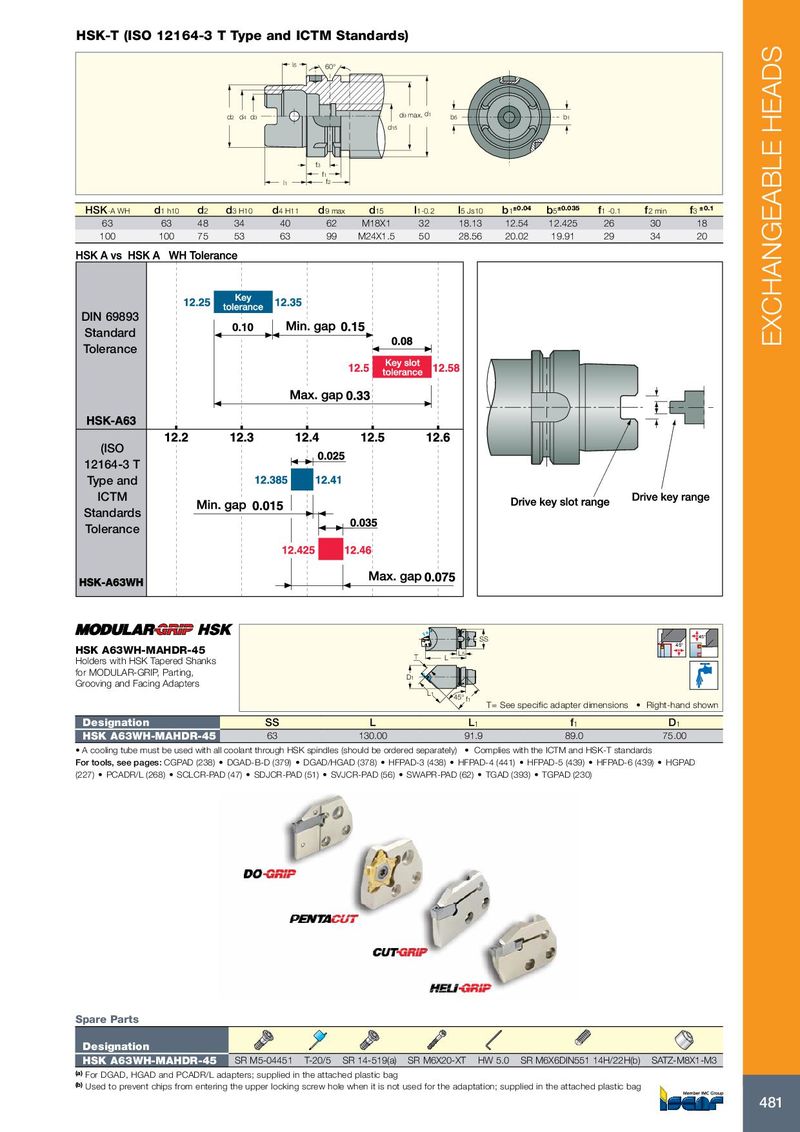

HSK-T (ISO 12164-3 T Type and ICTM Standards)
| d | d | d | d9 max. d1 | b | b |
| 2 4 | 3 | 5 | 1 |
d 15
f3 f 1 l 1 f 2
| HSK-A WH | d1 h10 | d 2 | d3 H10 | d4 H11 | d 9 max | d15 | l1-0.2 | l5 Js10 | b 1±0.04 | b5±0.035 | f1 -0.1 | f2 min | f3 ±0.1 | ||
| 63 | 63 | 48 | 34 | 40 | 62 | M18X1 | 32 | 18.13 | 12.54 | 12.425 | 26 | 30 | 18 | ||
| 100 | 100 | 75 | 53 | 63 | 99 | M24X1.5 | 50 | 28.56 | 20.02 | 19.91 | 29 | 34 | 20 |
DIN 69893
Standard
Tolerance
(ISO
12164-3 T
Type and
ICTM
Standards
Tolerance
SS 45° HSK A63WH-MAHDR-45 45° L5
Holders with HSK Tapered Shanks T L
for MODULAR-GRIP, Parting, Grooving and Facing Adapters D1 L1 45° f
1 T= See specific adapter dimensions Right-hand shown
| Designation | SS | L | L1 | f1 | D1 | |
| HSK A63WH-MAHDR-45 | 63 | 130.00 | 91.9 | 89.0 | 75.00 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately)
- Complies with the ICTM and HSK-T standards
For tools, see pages: CGPAD (238) DGAD-B-D (379) DGAD/HGAD (378) HFPAD-3 (438) HFPAD-4 (441) HFPAD-5 (439) HFPAD-6 (439) HGPAD (227) PCADR/L (268) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62) TGAD (393) TGPAD (230)
Spare Parts
HSK A63WH-MAHDR-45 SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT HW 5.0 SR M6X6DIN551 14H/22H(b) SATZ-M8X1-M3
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) Used to prevent chips from entering the upper locking screw hole when it is not used for the adaptation; supplied in the attached plastic bag
