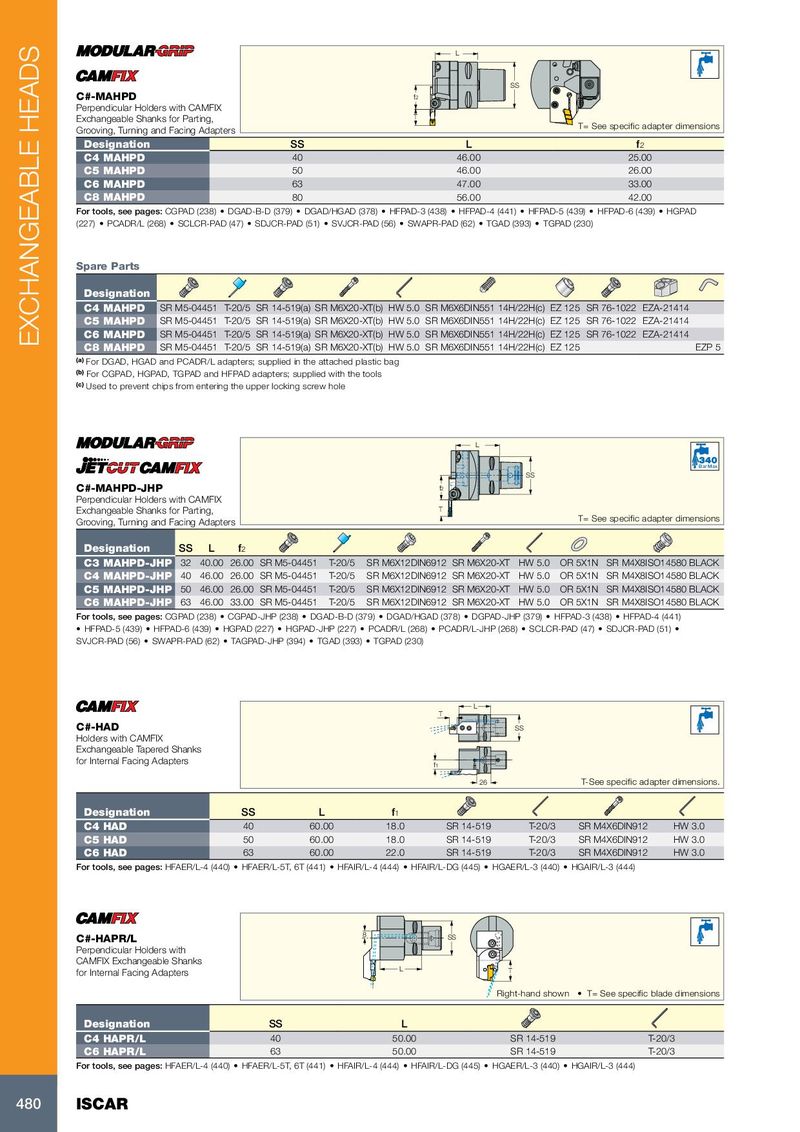

| L | ||||
| SS | ||||
| C#-MAHPD Perpendicular Holders with CAMFIX Exchangeable Shanks for Parting, Grooving, Turningand FacingAdapters | f2 T | T= See s | pecific adapter dimensions | |
| Designation | SS | L | f2 | |
| C4 MAHPD | 40 | 46.00 | 25.00 | |
| C5 MAHPD | 50 | 46.00 | 26.00 | |
| C6 MAHPD | 63 | 47.00 | 33.00 | |
| C8 MAHPD | 80 | 56.00 | 42.00 |
For tools, see pages: CGPAD (238) DGAD-B-D (379) DGAD/HGAD (378) HFPAD-3 (438) HFPAD-4 (441) HFPAD-5 (439) HFPAD-6 (439) HGPAD (227) PCADR/L (268) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62) TGAD (393) TGPAD (230)
Spare Parts
Designation
C4 MAHPD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 SR 76-1022 EZA-21414 C5 MAHPD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 SR 76-1022 EZA-21414 C6 MAHPD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 SR 76-1022 EZA-21414
C8 MAHPD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 EZP 5
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole
L
Bar Max SS C#-MAHPD-JHP f 2 Perpendicular Holders with CAMFIX Exchangeable Shanks for Parting, T Grooving, Turning and Facing Adapters T= See specific adapter dimensions
| Designation | SS | L | f2 | ||
| C3 MAHPD-JHP | 32 40.00 26.00 SR M5-04451 | T-20/5 | SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK | ||
| C4 MAHPD-JHP | 40 46.00 26.00 SR M5-04451 | T-20/5 | SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK | ||
| C5 MAHPD-JHP | 50 46.00 26.00 SR M5-04451 | T-20/5 | SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK | ||
| C6 MAHPD-JHP | 63 46.00 33.00 SR M5-04451 | T-20/5 | SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK |
For tools, see pages: CGPAD (238) CGPAD-JHP (238) DGAD-B-D (379) DGAD/HGAD (378) DGPAD-JHP (379) HFPAD-3 (438) HFPAD-4 (441)
- HFPAD-5 (439)
- HFPAD-6 (439)
- HGPAD (227)
- HGPAD-JHP (227)
- PCADR/L (268)
- PCADR/L-JHP (268)
- SCLCR-PAD (47)
- SDJCR-PAD (51)
SVJCR-PAD (56) SWAPR-PAD (62) TAGPAD-JHP (394) TGAD (393) TGPAD (230)
L T
C#-HAD
SS Holders with CAMFIX Exchangeable Tapered Shanks for Internal Facing Adapters f1 26 T-See specific adapter dimensions.
| Designation | SS | L | f1 | ||||
| C4 HAD | 40 | 60.00 | 18.0 | SR 14-519 | T-20/3 | SR M4X6DIN912 | HW 3.0 |
| C5 HAD | 50 | 60.00 | 18.0 | SR 14-519 | T-20/3 | SR M4X6DIN912 | HW 3.0 |
| C6 HAD | 63 | 60.00 | 22.0 | SR 14-519 | T-20/3 | SR M4X6DIN912 | HW 3.0 |
For tools, see pages: HFAER/L-4 (440) HFAER/L-5T, 6T (441) HFAIR/L-4 (444) HFAIR/L-DG (445) HGAER/L-3 (440) HGAIR/L-3 (444)
| C#-HAPR/L | 8 | SS |
| Perpendicular Holders with | ||
| CAMFIX Exchangeable Shanks |
| for Internal Facing Adapters | L | T | |||
| Right-hand shown • T= See specific blade dimensions | |||||
| Designation | SS | L | |||
| C4 HAPR/L | 40 | 50.00 | SR 14-519 | T-20/3 | |
| C6 HAPR/L | 63 | 50.00 | SR 14-519 | T-20/3 |
For tools, see pages: HFAER/L-4 (440) HFAER/L-5T, 6T (441) HFAIR/L-4 (444) HFAIR/L-DG (445) HGAER/L-3 (440) HGAIR/L-3 (444)
