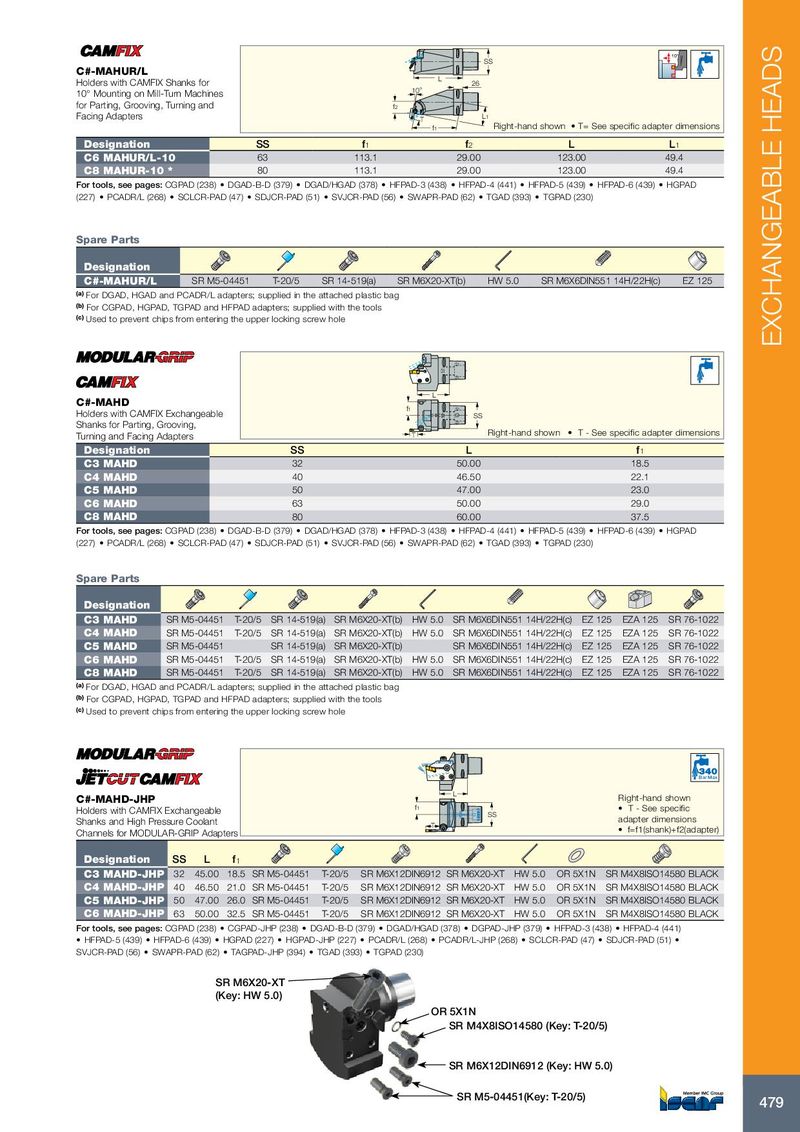

10° SS C#-MAHUR/L L Holders with CAMFIX Shanks for 26 10 ° 10° Mounting on Mill-Turn Machines for Parting, Grooving, Turning and f2 Facing Adapters T L1 f1 Right-hand shown • T= See specific adapter dimensions Designation SS f 1 f 2 L L 1 C6 MAHUR/L-10 63 113.1 29.00 123.00 49.4 C8 MAHUR-10 * 80 113.1 29.00 123.00 49.4 For tools, see pages: CGPAD (238) • DGAD-B-D (379) • DGAD/HGAD (378) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGPAD (227) • PCADR/L (268) • SCLCR-PAD (47) • SDJCR-PAD (51) • SVJCR-PAD (56) • SWAPR-PAD (62) • TGAD (393) • TGPAD (230) Spare Parts Designation C#-MAHUR/L SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole EXCHANGEABLE HEADS L C#-MAHD f 1 Holders with CAMFIX Exchangeable SS Shanks for Parting, Grooving, Turning and Facing Adapters T Right-hand shown • T - See specific adapter dimensions Designation SS L f 1 C3 MAHD 32 50.00 18.5 C4 MAHD 40 46.50 22.1 C5 MAHD 50 47.00 23.0 C6 MAHD 63 50.00 29.0 C8 MAHD 80 60.00 37.5 For tools, see pages: CGPAD (238) • DGAD-B-D (379) • DGAD/HGAD (378) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGPAD (227) • PCADR/L (268) • SCLCR-PAD (47) • SDJCR-PAD (51) • SVJCR-PAD (56) • SWAPR-PAD (62) • TGAD (393) • TGPAD (230) Spare Parts Designation C3 MAHD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 EZA 125 SR 76-1022 C4 MAHD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 EZA 125 SR 76-1022 C5 MAHD SR M5-04451 SR 14-519(a) SR M6X20-XT(b) SR M6X6DIN551 14H/22H(c) EZ 125 EZA 125 SR 76-1022 C6 MAHD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 EZA 125 SR 76-1022 C8 MAHD SR M5-04451 T-20/5 SR 14-519(a) SR M6X20-XT(b) HW 5.0 SR M6X6DIN551 14H/22H(c) EZ 125 EZA 125 SR 76-1022 (a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole Bar Max L C#-MAHD-JHP Right-hand shown Holders with CAMFIX Exchangeable f1 • T - See specific SS Shanks and High Pressure Coolant adapter dimensions T Channels for MODULAR-GRIP Adapters • f=f1(shank)+f2(adapter) Designation SS L f 1 C3 MAHD-JHP 32 45.00 18.5 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C4 MAHD-JHP 40 46.50 21.0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C5 MAHD-JHP 50 47.00 26.0 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK C6 MAHD-JHP 63 50.00 32.5 SR M5-04451 T-20/5 SR M6X12DIN6912 SR M6X20-XT HW 5.0 OR 5X1N SR M4X8ISO14580 BLACK For tools, see pages: CGPAD (238) • CGPAD-JHP (238) • DGAD-B-D (379) • DGAD/HGAD (378) • DGPAD-JHP (379) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGPAD (227) • HGPAD-JHP (227) • PCADR/L (268) • PCADR/L-JHP (268) • SCLCR-PAD (47) • SDJCR-PAD (51) • SVJCR-PAD (56) • SWAPR-PAD (62) • TAGPAD-JHP (394) • TGAD (393) • TGPAD (230) SR M6X20-XT (Key: HW 5.0) OR 5X1N SR M4X8ISO14580 (Key: T-20/5) SR M6X12DIN6912 (Key: HW 5.0) SR M5-04451(Key: T-20/5) 479
