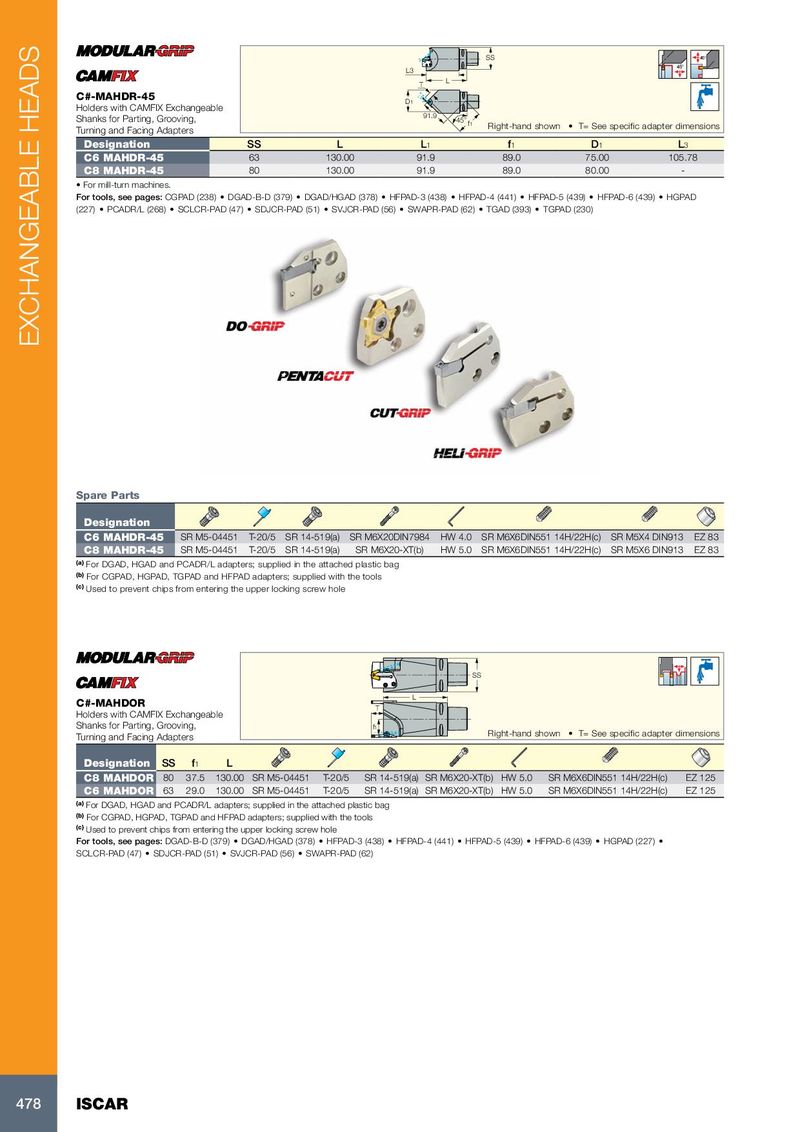

| L3 L T | SS | 45° 45° | |||
| C#-MAHDR-45 | D1 | ||||
| Holders with CAMFIX Exchangeable | |||||
| Shanks for Parting, Grooving, Turningand FacingAdapters | f1 91.9 45° | Right-hand shown • T= See specif | ic adapter dimensions | ||
| Designation | SS | L | L1 | f1 D1 | L3 |
| C6 MAHDR-45 | 63 | 130.00 | 91.9 | 89.0 75.00 | 105.78 |
| C8 MAHDR-45 | 80 | 130.00 | 91.9 | 89.0 80.00 | - |
- For mill-turn machines.
For tools, see pages: CGPAD (238) DGAD-B-D (379) DGAD/HGAD (378) HFPAD-3 (438) HFPAD-4 (441) HFPAD-5 (439) HFPAD-6 (439) HGPAD (227) PCADR/L (268) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62) TGAD (393) TGPAD (230)
Spare Parts
| Designation | |||||||
| C6 MAHDR-45 | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20DIN7984 | HW 4.0 | SR M6X6DIN551 14H/22H(c) | SR M5X4 DIN913 EZ 83 |
| C8 MAHDR-45 | SR M5-04451 | T-20/5 | SR 14-519(a) | SR M6X20-XT(b) | HW 5.0 | SR M6X6DIN551 14H/22H(c) | SR M5X6 DIN913 EZ 83 |
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole
| SS | ||||||
| C#-MAHDOR Holders with CAMFI | X Exchangeable | L T | ||||
| Shanks for Parting, Turningand Facing | Grooving, Adapters | f1 Right-hand s | hown • T= See specific adapter | dimensions | ||
| Designation | SS f1 L | |||||
| C8 MAHDOR | 80 37.5 130.00 | SR M5-04451 | T-20/5 | SR 14-519(a) SR M6X20-XT(b) HW 5.0 | SR M6X6DIN551 14H/22H(c) | EZ 125 |
| C6 MAHDOR | 63 29.0 130.00 | SR M5-04451 | T-20/5 | SR 14-519(a) SR M6X20-XT(b) HW 5.0 | SR M6X6DIN551 14H/22H(c) | EZ 125 |
(a) For DGAD, HGAD and PCADR/L adapters; supplied in the attached plastic bag (b) For CGPAD, HGPAD, TGPAD and HFPAD adapters; supplied with the tools (c) Used to prevent chips from entering the upper locking screw hole For tools, see pages: DGAD-B-D (379) DGAD/HGAD (378) HFPAD-3 (438) HFPAD-4 (441) HFPAD-5 (439) HFPAD-6 (439) HGPAD (227) SCLCR-PAD (47) SDJCR-PAD (51) SVJCR-PAD (56) SWAPR-PAD (62)
