C
CAMFIX ISO 26623-1
| Toolholder Standard | l 8 | A | |
| 2e | |||
| d4 |
| d 2 | d 1 | Dm | |||
| d 5 | b | ||||
| l | 2 | ||||
| 1 | |||||
| l11 | A |
| l 6 | A-A | C-C | |
| l 2 | l 3 | ||
| C |
| CAMFIX | b2 | d1 ±0.1 | d2 | d 4 | d5 ±0.1 | Dm | e | l1 | l2 ±0.1 | l3 min | l6 ±0.15 | l7 ±0.15 | l8 min | l11 ±0.1 | |
| C3 | 28,3 | 32 | 15 | M12x1.5 | 3,6 | 22 | 0,7 | 2,5 | 19 | 15 | 6 | 13 | 25 | 8 | |
| C4 | 35,3 | 40 | 18 | M14x1.5 | 4,6 | 28 | 0,9 | 2,5 | 24 | 20 | 8 | 15 | 30 | 11,5 | |
| C5 | 44,4 | 50 | 21 | M16x1.5 | 6,1 | 35 | 1,12 | 3 | 30 | 20 | 10 | 20 | 37 | 14 | |
| C6 | 55,8 | 63 | 28 | M20x2 | 8,1 | 44 | 1,4 | 3 | 38 | 22 | 12 | 27 | 47 | 15,5 | |
| C8 | 71,1 | 80 | 32 | M20x2 | 9,1 | 55 | 2 | 3 | 48 | 30 | 12 | 28 | 48 | 25 | |
| C8X | 88,7 | 100 | 32 | M20x2 | 9,1 | 55 | 2 | 3 | 48 | 32 | 16 | 28 | 48 | 25 | |
| C10 | 88,3 | 100 | 43 | M24x2 | 12 | 72 | 2,8 | 3 | 60 | 36 | 16 | 40 | 70 | 26,5 |

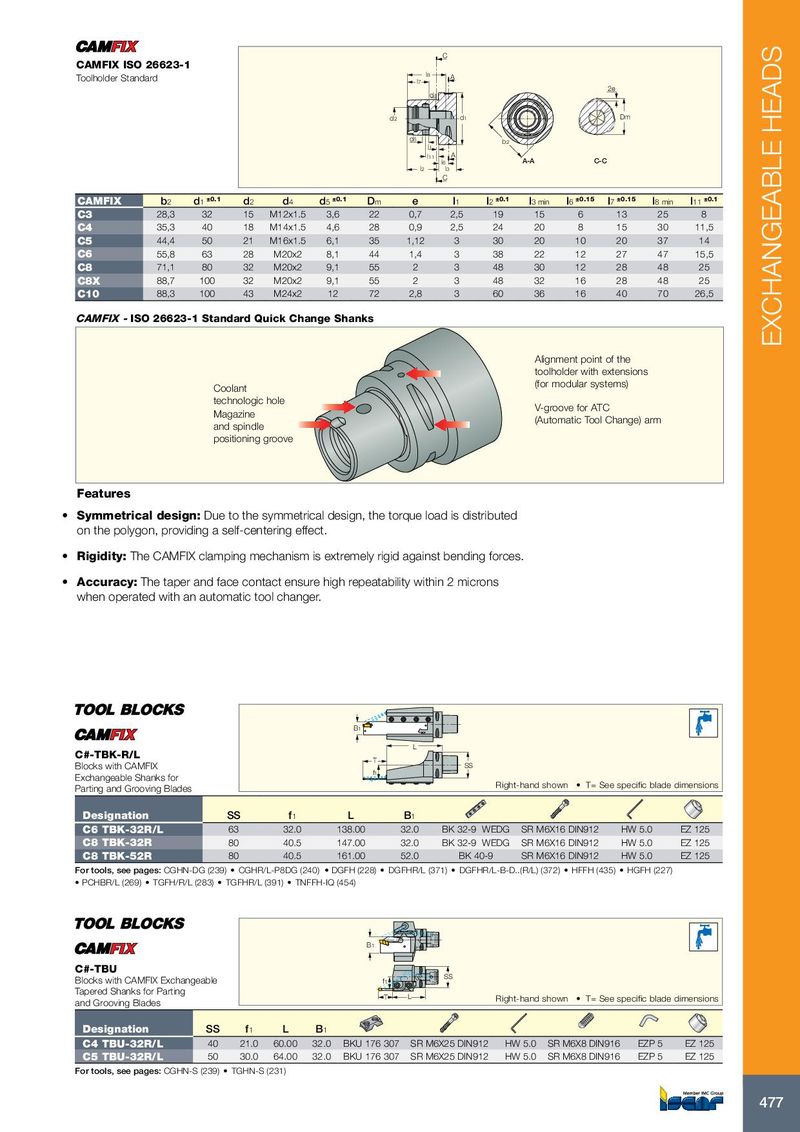

CAMFIX - ISO 26623-1 Standard Quick Change Shanks
Alignment point of the toolholder with extensions Coolant (for modular systems) technologic hole V-groove for ATC Magazine (Automatic Tool Change) arm and spindle positioning groove
Features
- Symmetrical design: Due to the symmetrical design, the torque load is distributed on the polygon, providing a self-centering effect.
- Rigidity: The CAMFIX clamping mechanism is extremely rigid against bending forces.
- Accuracy: The taper and face contact ensure high repeatability within 2 microns when operated with an automatic tool changer.
B 1 L
C#-TBK-R/L
Blocks with CAMFIX T SS Exchangeable Shanks for f1 Parting and Grooving Blades Right-hand shown T= See specific blade dimensions
| Designation | SS | f1 | L | B 1 | |||||
| C6 TBK-32R/L | 63 | 32.0 | 138.00 | 32.0 | BK 32-9 WEDG | SR M6X16 DIN912 | HW 5.0 | EZ 125 | |
| C8 TBK-32R | 80 | 40.5 | 147.00 | 32.0 | BK 32-9 WEDG | SR M6X16 DIN912 | HW 5.0 | EZ 125 | |
| C8 TBK-52R | 80 | 40.5 | 161.00 | 52.0 | BK 40-9 | SR M6X16 DIN912 | HW 5.0 | EZ 125 |
For tools, see pages: CGHN-DG (239) CGHR/L-P8DG (240) DGFH (228) DGFHR/L (371) DGFHR/L-B-D..(R/L) (372) HFFH (435) HGFH (227)
- PCHBR/L (269)
- TGFH/R/L (283)
- TGFHR/L (391)
- TNFFH-IQ (454)
B1
C#-TBU
Blocks with CAMFIX Exchangeable SS f1 Tapered Shanks for Parting
and Grooving Blades T L Right-hand shown T= See specific blade dimensions
| Designation | SS | f1 | L | B 1 | ||||||
| C4 TBU-32R/L | 40 | 21.0 | 60.00 | 32.0 | BKU 176 307 | SR M6X25 DIN912 | HW 5.0 | SR M6X8 DIN916 | EZP 5 | EZ 125 |
| C5 TBU-32R/L | 50 | 30.0 | 64.00 | 32.0 | BKU 176 307 | SR M6X25 DIN912 | HW 5.0 | SR M6X8 DIN916 | EZP 5 | EZ 125 |
For tools, see pages: CGHN-S (239) TGHN-S (231)
