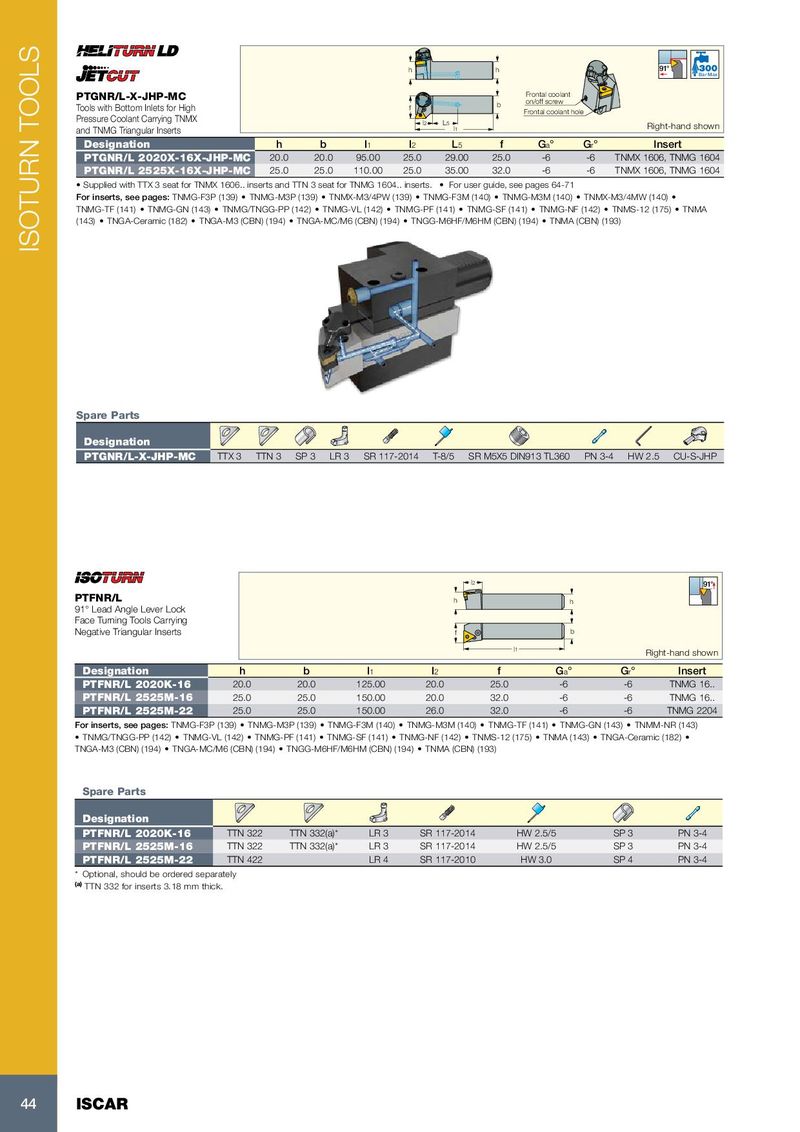

PTGNR/L-X-JHP-MC Frontal coolant
| Tools with Bottom Inlets for High | b | on/off screw | |
| f | |||
| Frontal coolant hole | |||
| Pressure Coolant Carrying TNMX |
| l 2 | L5 | Right-hand shown | |
| and TNMG Triangular Inserts | l1 |
| Designation | h | b | l1 | l2 | L5 | f | Ga° | Gr° | Insert | |
| PTGNR/L 2020X-16X-JHP-MC | 20.0 | 20.0 | 95.00 | 25.0 | 29.00 | 25.0 | -6 | -6 | TNMX 1606, TNMG 1604 | |
| PTGNR/L 2525X-16X-JHP-MC | 25.0 | 25.0 | 110.00 | 25.0 | 35.00 | 32.0 | -6 | -6 | TNMX 1606, TNMG 1604 |
- Supplied with TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts.
- For user guide, see pages 64-71
For inserts, see pages: TNMG-F3P (139) TNMG-M3P (139) TNMX-M3/4PW (139) TNMG-F3M (140) TNMG-M3M (140) TNMX-M3/4MW (140) TNMG-TF (141) TNMG-GN (143) TNMG/TNGG-PP (142) TNMG-VL (142) TNMG-PF (141) TNMG-SF (141) TNMG-NF (142) TNMS-12 (175) TNMA (143) TNGA-Ceramic (182) TNGA-M3 (CBN) (194) TNGA-MC/M6 (CBN) (194) TNGG-M6HF/M6HM (CBN) (194) TNMA (CBN) (193)
Spare Parts
Designation
PTGNR/L-X-JHP-MC TTX 3 TTN 3 SP 3 LR 3 SR 117-2014 T-8/5 SR M5X5 DIN913 TL360 PN 3-4 HW 2.5 CU-S-JHP
l 2 91°
PTFNR/L
h h 91° Lead Angle Lever Lock Face Turning Tools Carrying
| Negative Triangular Inserts | f | b | ||
| l 1 | Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |
| PTFNR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 20.0 | 25.0 | -6 | -6 | TNMG 16.. | |
| PTFNR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 20.0 | 32.0 | -6 | -6 | TNMG 16.. | |
| PTFNR/L 2525M-22 | 25.0 | 25.0 | 150.00 | 26.0 | 32.0 | -6 | -6 | TNMG 2204 |
For inserts, see pages: TNMG-F3P (139) TNMG-M3P (139) TNMG-F3M (140) TNMG-M3M (140) TNMG-TF (141) TNMG-GN (143) TNMM-NR (143)
- TNMG/TNGG-PP (142)
- TNMG-VL (142)
- TNMG-PF (141)
- TNMG-SF (141)
- TNMG-NF (142)
- TNMS-12 (175)
- TNMA (143)
- TNGA-Ceramic (182)
TNGA-M3 (CBN) (194) TNGA-MC/M6 (CBN) (194) TNGG-M6HF/M6HM (CBN) (194) TNMA (CBN) (193)
Spare Parts
| Designation | |||||||
| PTFNR/L 2020K-16 | TTN 322 | TTN 332(a) | LR 3 | SR 117-2014 | HW 2.5/5 | SP 3 | PN 3-4 |
| PTFNR/L 2525M-16 | TTN 322 | TTN 332(a) | LR 3 | SR 117-2014 | HW 2.5/5 | SP 3 | PN 3-4 |
| PTFNR/L 2525M-22 | TTN 422 | LR 4 | SR 117-2010 | HW 3.0 | SP 4 | PN 3-4 |
* Optional, should be ordered separately (a) TTN 332 for inserts 3.18 mm thick.
