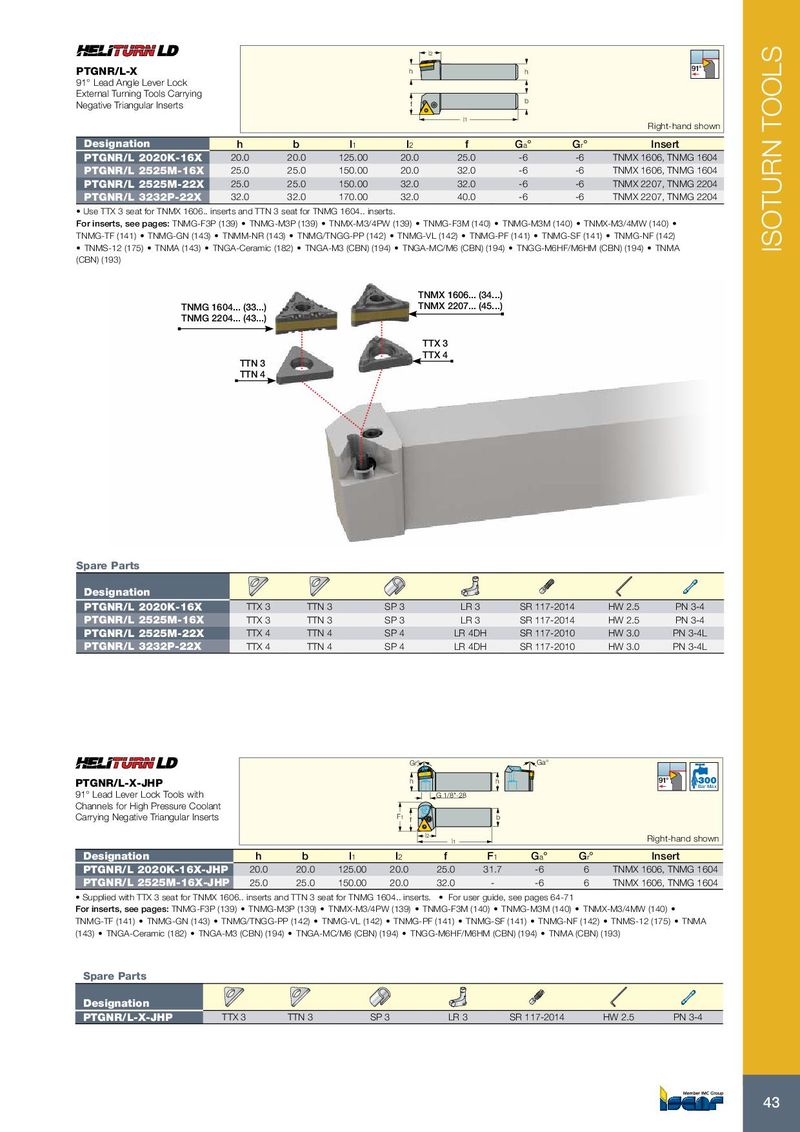

Каталог Iscar токарный инструмент 2017 - страница 47
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| l2 | ||||||||
| TGNR/L-X | h | h | 91° | |||||
| 1° Lead Angle Lever Lock xternal Turning Tools Carrying egative Triangular Inserts | f | b | ||||||
| l1 | Right-hand shown | |||||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert |
| PTGNR/L 2020K-16X | 20.0 | 20.0 | 125.00 | 20.0 | 25.0 | -6 | -6 | TNMX 1606, TNMG 1604 |
| PTGNR/L 2525M-16X | 25.0 | 25.0 | 150.00 | 20.0 | 32.0 | -6 | -6 | TNMX 1606, TNMG 1604 |
| PTGNR/L 2525M-22X | 25.0 | 25.0 | 150.00 | 32.0 | 32.0 | -6 | -6 | TNMX 2207, TNMG 2204 |
| PTGNR/L 3232P-22X | 32.0 | 32.0 | 170.00 | 32.0 | 40.0 | -6 | -6 | TNMX 2207,TNMG 2204 |
- Use TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts.
For inserts, see pages: TNMG-F3P (139) TNMG-M3P (139) TNMX-M3/4PW (139) TNMG-F3M (140) TNMG-M3M (140) TNMX-M3/4MW (140) TNMG-TF (141) TNMG-GN (143) TNMM-NR (143) TNMG/TNGG-PP (142) TNMG-VL (142) TNMG-PF (141) TNMG-SF (141) TNMG-NF (142)
- TNMS-12 (175)
- TNMA (143)
- TNGA-Ceramic (182)
- TNGA-M3 (CBN) (194)
- TNGA-MC/M6 (CBN) (194)
- TNGG-M6HF/M6HM (CBN) (194)
- TNMA
(CBN) (193)
TNMX 1606... (34...) TNMG 1604... (33...) TNMX 2207... (45...) TNMG 2204... (43...) TTX 3 TTX 4 TTN 3 TTN 4
Spare Parts
| Designation | |||||||
| PTGNR/L 2020K-16X | TTX 3 | TTN 3 | SP 3 | LR 3 | SR 117-2014 | HW 2.5 | PN 3-4 |
| PTGNR/L 2525M-16X | TTX 3 | TTN 3 | SP 3 | LR 3 | SR 117-2014 | HW 2.5 | PN 3-4 |
| PTGNR/L 2525M-22X | TTX 4 | TTN 4 | SP 4 | LR 4DH | SR 117-2010 | HW 3.0 | PN 3-4L |
| PTGNR/L 3232P-22X | TTX 4 | TTN 4 | SP 4 | LR 4DH | SR 117-2010 | HW 3.0 | PN 3-4L |
Gr° Ga°
| PTGNR/L-X-JHP | h | h | 91° | |||||
| Bar Max | ||||||||
| 91° Lead Lever Lock Tools with | G 1/8"-28 | |||||||
| Channels for High Pressure Coolant | ||||||||
| Carrying Negative Triangular Inserts | F1 | b | ||||||
| f | ||||||||
| l 2 | Right-hand shown | |||||||
| l 1 | ||||||||
| Designation | h | b | l1 | l2 | f F1 | Ga° | Insert Gr° | |
| PTGNR/L 2020K-16X-JHP | 20.0 | 20.0 | 125.00 | 20.0 | 25.0 | 31.7 | -6 | TNMX 1606, TNMG 1604 6 |
| PTGNR/L 2525M-16X-JHP | 25.0 | 25.0 | 150.00 | 20.0 | 32.0 | - | -6 | TNMX 1606, TNMG 1604 6 |
- Supplied with TTX 3 seat for TNMX 1606.. inserts and TTN 3 seat for TNMG 1604.. inserts.
- For user guide, see pages 64-71
For inserts, see pages: TNMG-F3P (139) TNMG-M3P (139) TNMX-M3/4PW (139) TNMG-F3M (140) TNMG-M3M (140) TNMX-M3/4MW (140) TNMG-TF (141) TNMG-GN (143) TNMG/TNGG-PP (142) TNMG-VL (142) TNMG-PF (141) TNMG-SF (141) TNMG-NF (142) TNMS-12 (175) TNMA (143) TNGA-Ceramic (182) TNGA-M3 (CBN) (194) TNGA-MC/M6 (CBN) (194) TNGG-M6HF/M6HM (CBN) (194) TNMA (CBN) (193)
| Spare Parts | ||||||
| Designation | ||||||
| PTGNR/L-X-JHP | TTX 3 | TTN 3 | SP 3 | LR 3 | SR 117-2014 | HW 2.5 PN 3-4 |
