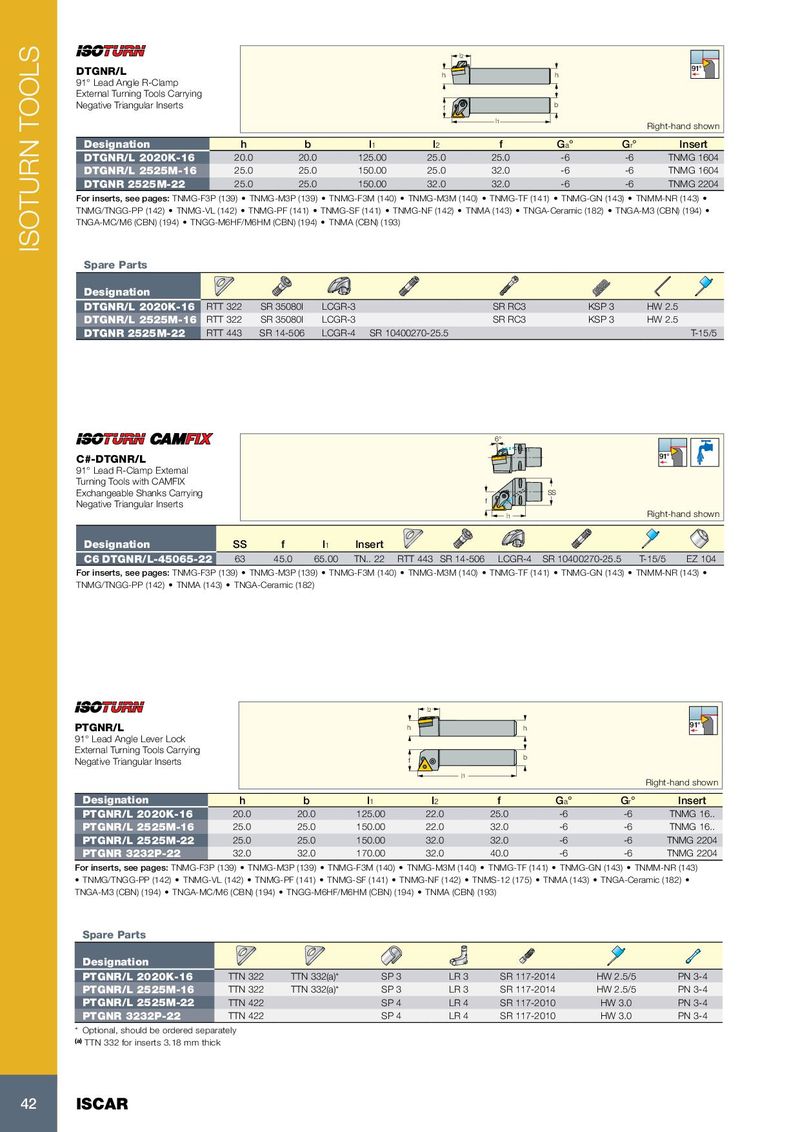

| DTGNR/L 91° Lead Angle R-Clamp | l2 h | h | 91° | ||||
| External Turning Tools Carrying | |||||||
| Negative Triangular Inserts | f | l1 | b | Right-hand shown | |||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° Insert |
| DTGNR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 25.0 | 25.0 | -6 | -6 TNMG 1604 |
| DTGNR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 25.0 | 32.0 | -6 | -6 TNMG 1604 |
| DTGNR 2525M-22 | 25.0 | 25.0 | 150.00 | 32.0 | 32.0 | -6 | -6 TNMG 2204 |
For inserts, see pages: TNMG-F3P (139) TNMG-M3P (139) TNMG-F3M (140) TNMG-M3M (140) TNMG-TF (141) TNMG-GN (143) TNMM-NR (143) TNMG/TNGG-PP (142) TNMG-VL (142) TNMG-PF (141) TNMG-SF (141) TNMG-NF (142) TNMA (143) TNGA-Ceramic (182) TNGA-M3 (CBN) (194) TNGA-MC/M6 (CBN) (194) TNGG-M6HF/M6HM (CBN) (194) TNMA (CBN) (193)
Spare Parts
| Designation | |||||||
| DTGNR/L 2020K-16 | RTT 322 | SR 35080I | LCGR-3 | SR RC3 | KSP 3 | HW 2.5 | |
| DTGNR/L 2525M-16 | RTT 322 | SR 35080I | LCGR-3 | SR RC3 | KSP 3 | HW 2.5 | |
| DTGNR 2525M-22 | RTT 443 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 |
6° C#-DTGNR/L 91° 91° Lead R-Clamp External Turning Tools with CAMFIX Exchangeable Shanks Carrying SS Negative Triangular Inserts f l Right-hand shown 1
| Designation | SS | f | l1 | Insert | ||||
| C6 DTGNR/L-45065-22 | 63 | 45.0 | 65.00 | TN.. 22 | RTT 443 SR 14-506 | LCGR-4 SR 10400270-25.5 | T-15/5 | EZ 104 |
For inserts, see pages: TNMG-F3P (139) TNMG-M3P (139) TNMG-F3M (140) TNMG-M3M (140) TNMG-TF (141) TNMG-GN (143) TNMM-NR (143) TNMG/TNGG-PP (142) TNMA (143) TNGA-Ceramic (182)
l 2
| PTGNR/L | h | 91° |
| h | ||
| 91° Lead Angle Lever Lock | ||
| External Turning Tools Carrying | ||
| Negative Triangular Inserts | f | b |
| l1 | ||
| Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |
| PTGNR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 22.0 | 25.0 | -6 | -6 | TNMG 16.. | |
| PTGNR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 22.0 | 32.0 | -6 | -6 | TNMG 16.. | |
| PTGNR/L 2525M-22 | 25.0 | 25.0 | 150.00 | 32.0 | 32.0 | -6 | -6 | TNMG 2204 | |
| PTGNR 3232P-22 | 32.0 | 32.0 | 170.00 | 32.0 | 40.0 | -6 | -6 | TNMG 2204 |
For inserts, see pages: TNMG-F3P (139) TNMG-M3P (139) TNMG-F3M (140) TNMG-M3M (140) TNMG-TF (141) TNMG-GN (143) TNMM-NR (143)
- TNMG/TNGG-PP (142)
- TNMG-VL (142)
- TNMG-PF (141)
- TNMG-SF (141)
- TNMG-NF (142)
- TNMS-12 (175)
- TNMA (143)
- TNGA-Ceramic (182)
TNGA-M3 (CBN) (194) TNGA-MC/M6 (CBN) (194) TNGG-M6HF/M6HM (CBN) (194) TNMA (CBN) (193)
Spare Parts
| Designation | |||||||
| PTGNR/L 2020K-16 | TTN 322 | TTN 332(a) | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 |
| PTGNR/L 2525M-16 | TTN 322 | TTN 332(a) | SP 3 | LR 3 | SR 117-2014 | HW 2.5/5 | PN 3-4 |
| PTGNR/L 2525M-22 | TTN 422 | SP 4 | LR 4 | SR 117-2010 | HW 3.0 | PN 3-4 | |
| PTGNR 3232P-22 | TTN 422 | SP 4 | LR 4 | SR 117-2010 | HW 3.0 | PN 3-4 |
(a) TTN 332 for inserts 3.18 mm thick
