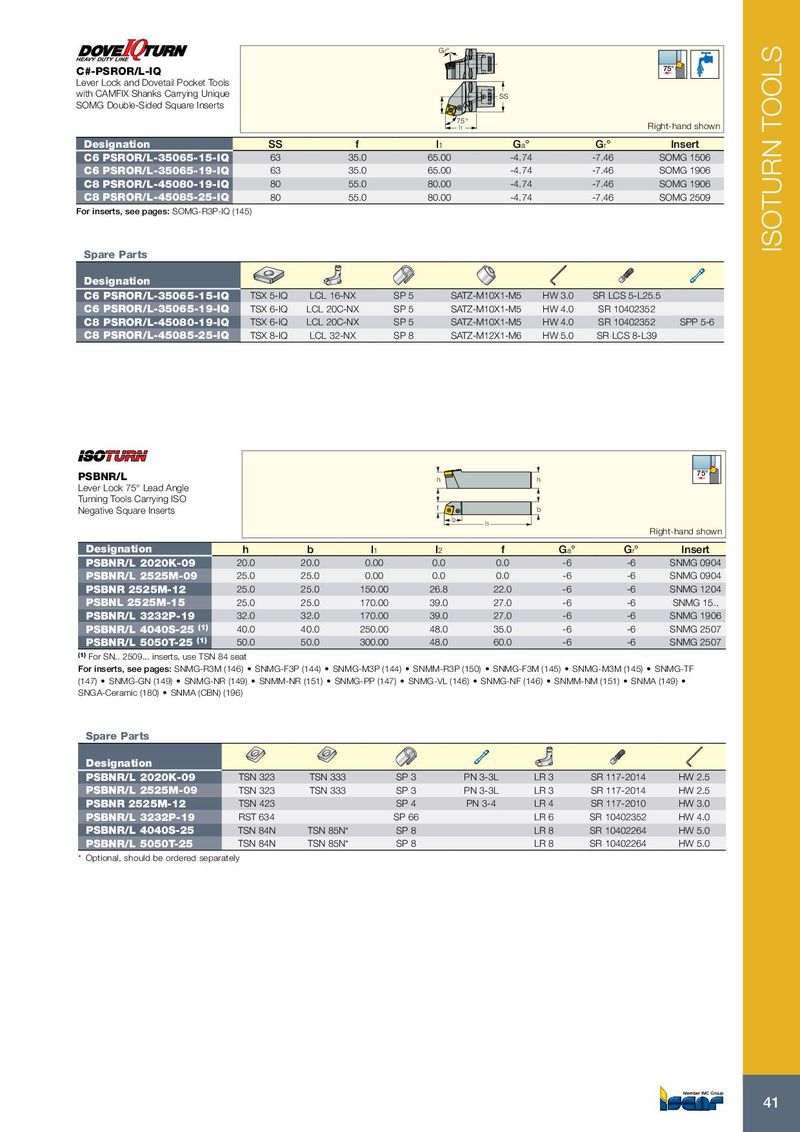

| #-PSROR/L-IQ ver Lock and Dovetail Pocket Tools ith CAMFIX Shanks Carrying Unique OMG Double-Sided Square Inserts | Gr° f 75° l1 | SS | Right-hand shown 75° | |||
| Designation | SS | f | l1 | Ga° | Gr° | Insert |
| C6 PSROR/L-35065-15-IQ | 63 | 35.0 | 65.00 | -4.74 | -7.46 | SOMG 1506 |
| C6 PSROR/L-35065-19-IQ | 63 | 35.0 | 65.00 | -4.74 | -7.46 | SOMG 1906 |
| C8 PSROR/L-45080-19-IQ | 80 | 55.0 | 80.00 | -4.74 | -7.46 | SOMG 1906 |
| C8 PSROR/L-45085-25-IQ | 80 | 55.0 | 80.00 | -4.74 | -7.46 | SOMG 2509 |
For inserts, see pages: SOMG-R3P-IQ (145)
Spare Parts
| Designation | |||||||
| C6 PSROR/L-35065-15-IQ | TSX 5-IQ | LCL 16-NX | SP 5 | SATZ-M10X1-M5 | HW 3.0 | SR LCS 5-L25.5 | |
| C6 PSROR/L-35065-19-IQ | TSX 6-IQ | LCL 20C-NX | SP 5 | SATZ-M10X1-M5 | HW 4.0 | SR 10402352 | |
| C8 PSROR/L-45080-19-IQ | TSX 6-IQ | LCL 20C-NX | SP 5 | SATZ-M10X1-M5 | HW 4.0 | SR 10402352 | SPP 5-6 |
| C8 PSROR/L-45085-25-IQ | TSX 8-IQ | LCL 32-NX | SP 8 | SATZ-M12X1-M6 | HW 5.0 | SR LCS 8-L39 |
| PSBNR/L | h | h | 75° | |||||
| Lever Lock 75° Lead Angle Turning Tools Carrying ISO | ||||||||
| Negative Square Inserts | f l2 | l1 | b | Right-hand shown | ||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert |
| PSBNR/L 2020K-09 | 20.0 | 20.0 | 0.00 | 0.0 | 0.0 | -6 | -6 | SNMG 0904 |
| PSBNR/L 2525M-09 | 25.0 | 25.0 | 0.00 | 0.0 | 0.0 | -6 | -6 | SNMG 0904 |
| PSBNR 2525M-12 | 25.0 | 25.0 | 150.00 | 26.8 | 22.0 | -6 | -6 | SNMG 1204 |
| PSBNL 2525M-15 | 25.0 | 25.0 | 170.00 | 39.0 | 27.0 | -6 | -6 | SNMG 15.. |
| PSBNR/L 3232P-19 | 32.0 | 32.0 | 170.00 | 39.0 | 27.0 | -6 | -6 | SNMG 1906 |
| PSBNR/L 4040S-25(1) | 40.0 | 40.0 | 250.00 | 48.0 | 35.0 | -6 | -6 | SNMG 2507 |
| PSBNR/L 5050T-25(1) | 50.0 | 50.0 | 300.00 | 48.0 | 60.0 | -6 | -6 | SNMG 2507 |
(1) For SN.. 2509... inserts, use TSN 84 seat For inserts, see pages: SNMG-R3M (146) • SNMG-F3P (144) • SNMG-M3P (144) • SNMM-R3P (150) • SNMG-F3M (145) • SNMG-M3M (145) • SNMG-TF (147) • SNMG-GN (149) • SNMG-NR (149) • SNMM-NR (151) • SNMG-PP (147) • SNMG-VL (146) • SNMG-NF (146) • SNMM-NM (151) • SNMA (149) • SNGA-Ceramic (180) • SNMA (CBN) (196)
Spare Parts
| Designation | |||||||
| PSBNR/L 2020K-09 | TSN 323 | TSN 333 | SP 3 | PN 3-3L | LR 3 | SR 117-2014 | HW 2.5 |
| PSBNR/L 2525M-09 | TSN 323 | TSN 333 | SP 3 | PN 3-3L | LR 3 | SR 117-2014 | HW 2.5 |
| PSBNR 2525M-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 | |
| PSBNR/L 3232P-19 | RST 634 | SP 66 | LR 6 | SR 10402352 | HW 4.0 | ||
| PSBNR/L 4040S-25 | TSN 84N | TSN 85N | SP 8 | LR 8 | SR 10402264 | HW 5.0 | |
| PSBNR/L 5050T-25 | TSN 84N | TSN 85N | SP 8 | LR 8 | SR 10402264 | HW 5.0 |
* Optional, should be ordered separately
