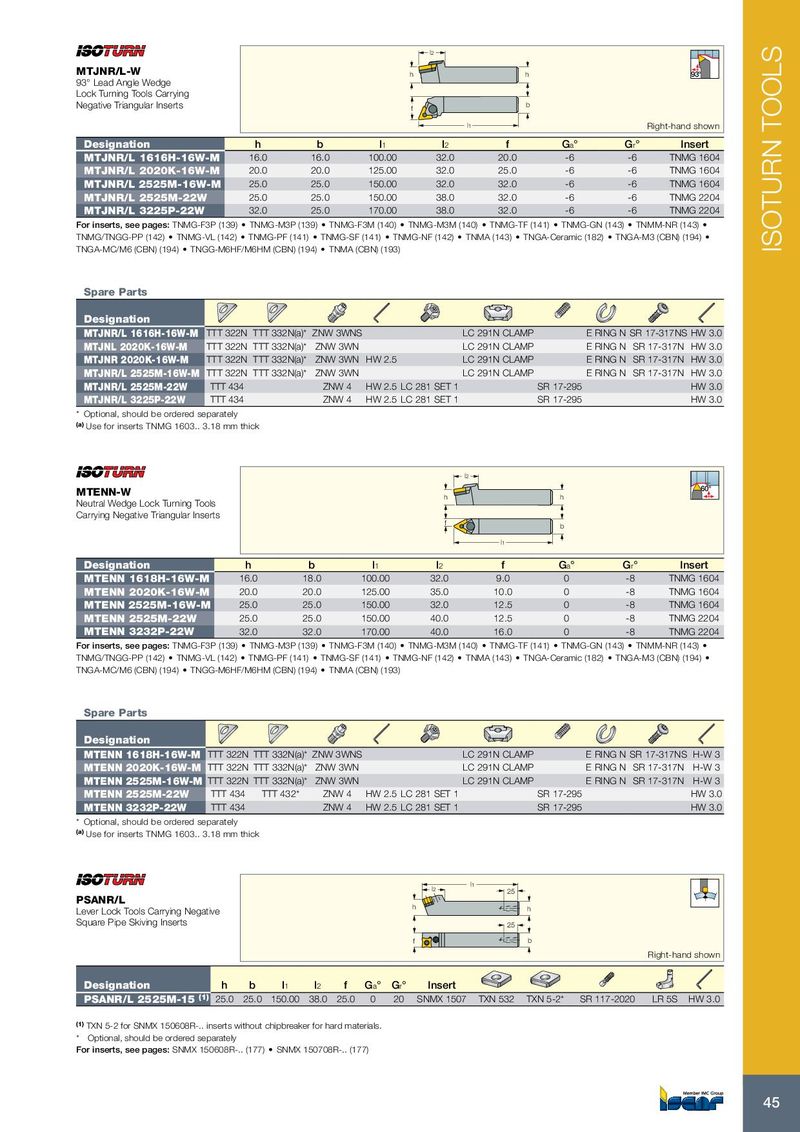

| MTJNR/L-W 93° Lead Angle Wedge Lock Turning Tools Carrying Negative Triangular Inserts | l2 h f l1 | h b | Right-hand shown 93° | ||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° Insert |
| MTJNR/L 1616H-16W-M | 16.0 | 16.0 | 100.00 | 32.0 | 20.0 | -6 | -6 TNMG 1604 |
| MTJNR/L 2020K-16W-M | 20.0 | 20.0 | 125.00 | 32.0 | 25.0 | -6 | -6 TNMG 1604 |
| MTJNR/L 2525M-16W-M | 25.0 | 25.0 | 150.00 | 32.0 | 32.0 | -6 | -6 TNMG 1604 |
| MTJNR/L 2525M-22W | 25.0 | 25.0 | 150.00 | 38.0 | 32.0 | -6 | -6 TNMG 2204 |
| MTJNR/L 3225P-22W | 32.0 | 25.0 | 170.00 | 38.0 | 32.0 | -6 | -6 TNMG 2204 |
For inserts, see pages: TNMG-F3P (139) • TNMG-M3P (139) • TNMG-F3M (140) • TNMG-M3M (140) • TNMG-TF (141) • TNMG-GN (143) • TNMM-NR (143) • TNMG/TNGG-PP (142) • TNMG-VL (142) • TNMG-PF (141) • TNMG-SF (141) • TNMG-NF (142) • TNMA (143) • TNGA-Ceramic (182) • TNGA-M3 (CBN) (194) • TNGA-MC/M6 (CBN) (194) • TNGG-M6HF/M6HM (CBN) (194) • TNMA (CBN) (193)
Spare Parts
| Designation | |||||||||
| MTJNR/L 1616H-16W-M | TTT 322N | TTT 332N(a) | ZNW 3WNS | LC 291N CLAMP | ERINGN | SR 17-317NS | HW 3.0 | ||
| MTJNL 2020K-16W-M | TTT 322N | TTT 332N(a) | ZNW 3WN | LC 291N CLAMP | ERINGN | SR 17-317N | HW 3.0 | ||
| MTJNR 2020K-16W-M | TTT 322N | TTT 332N(a) | ZNW 3WN | HW 2.5 | LC 291N CLAMP | ERINGN | SR 17-317N | HW 3.0 | |
| MTJNR/L 2525M-16W-M | TTT 322N | TTT 332N(a) | ZNW 3WN | LC 291N CLAMP | ERINGN | SR 17-317N | HW 3.0 | ||
| MTJNR/L 2525M-22W | TTT 434 | ZNW 4 | HW 2.5 LC 281 SET 1 | SR 17-295 | HW 3.0 | ||||
| MTJNR/L 3225P-22W | TTT 434 | ZNW 4 | HW 2.5 LC 281 SET 1 | SR 17-295 | HW 3.0 |
- Optional, should be ordered separately
(a) Use for inserts TNMG 1603.. 3.18 mm thick
| l2 | |||||||
| MTENN-W Neutral Wedge Lock Turning Tools Carrying Negative Triangular Inserts | h f | l1 | b h | 60° | |||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° Insert |
| MTENN 1618H-16W-M | 16.0 | 18.0 | 100.00 | 32.0 | 9.0 | 0 | -8 TNMG 1604 |
| MTENN 2020K-16W-M | 20.0 | 20.0 | 125.00 | 35.0 | 10.0 | 0 | -8 TNMG 1604 |
| MTENN 2525M-16W-M | 25.0 | 25.0 | 150.00 | 32.0 | 12.5 | 0 | -8 TNMG 1604 |
| MTENN 2525M-22W | 25.0 | 25.0 | 150.00 | 40.0 | 12.5 | 0 | -8 TNMG 2204 |
| MTENN 3232P-22W | 32.0 | 32.0 | 170.00 | 40.0 | 16.0 | 0 | -8 TNMG 2204 |
For inserts, see pages: TNMG-F3P (139) • TNMG-M3P (139) • TNMG-F3M (140) • TNMG-M3M (140) • TNMG-TF (141) • TNMG-GN (143) • TNMM-NR (143) • TNMG/TNGG-PP (142) • TNMG-VL (142) • TNMG-PF (141) • TNMG-SF (141) • TNMG-NF (142) • TNMA (143) • TNGA-Ceramic (182) • TNGA-M3 (CBN) (194) • TNGA-MC/M6 (CBN) (194) • TNGG-M6HF/M6HM (CBN) (194) • TNMA (CBN) (193)
Spare Parts
| Designation | ||||||||
| MTENN 1618H-16W-M | TTT 322N | TTT 332N(a) | ZNW 3WNS | LC 291N CLAMP | ERINGN | SR 17-317NS | H-W 3 | |
| MTENN 2020K-16W-M | TTT 322N | TTT 332N(a) | ZNW 3WN | LC 291N CLAMP | ERINGN | SR 17-317N | H-W 3 | |
| MTENN 2525M-16W-M | TTT 322N | TTT 332N(a) | ZNW 3WN | LC 291N CLAMP | ERINGN | SR 17-317N | H-W 3 | |
| MTENN 2525M-22W | TTT 434 | TTT 432 | ZNW 4 | HW 2.5 LC 281 SET 1 | SR 17-295 | HW 3.0 | ||
| MTENN 3232P-22W | TTT 434 | ZNW 4 | HW 2.5 LC 281 SET 1 | SR 17-295 | HW 3.0 |
- Optional, should be ordered separately
(a) Use for inserts TNMG 1603.. 3.18 mm thick
l1 l2 25
PSANR/L
| Lever Lock Tools Carrying Negative | h | h | ||
| Square Pipe Skiving Inserts | ||||
| 25 | ||||
| f | b | |||
| Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° Gr° | Insert | |||||
| PSANR/L 2525M-15 (1) | 25.0 25.0 150.00 38.0 25.0 | 0 | 20 | SNMX 1507 | TXN 532 | TXN 5-2* | SR 117-2020 | LR 5S HW 3.0 |
(1) TXN 5-2 for SNMX 150608R-.. inserts without chipbreaker for hard materials. For inserts, see pages: SNMX 150608R-.. (177) • SNMX 150708R-.. (177)
