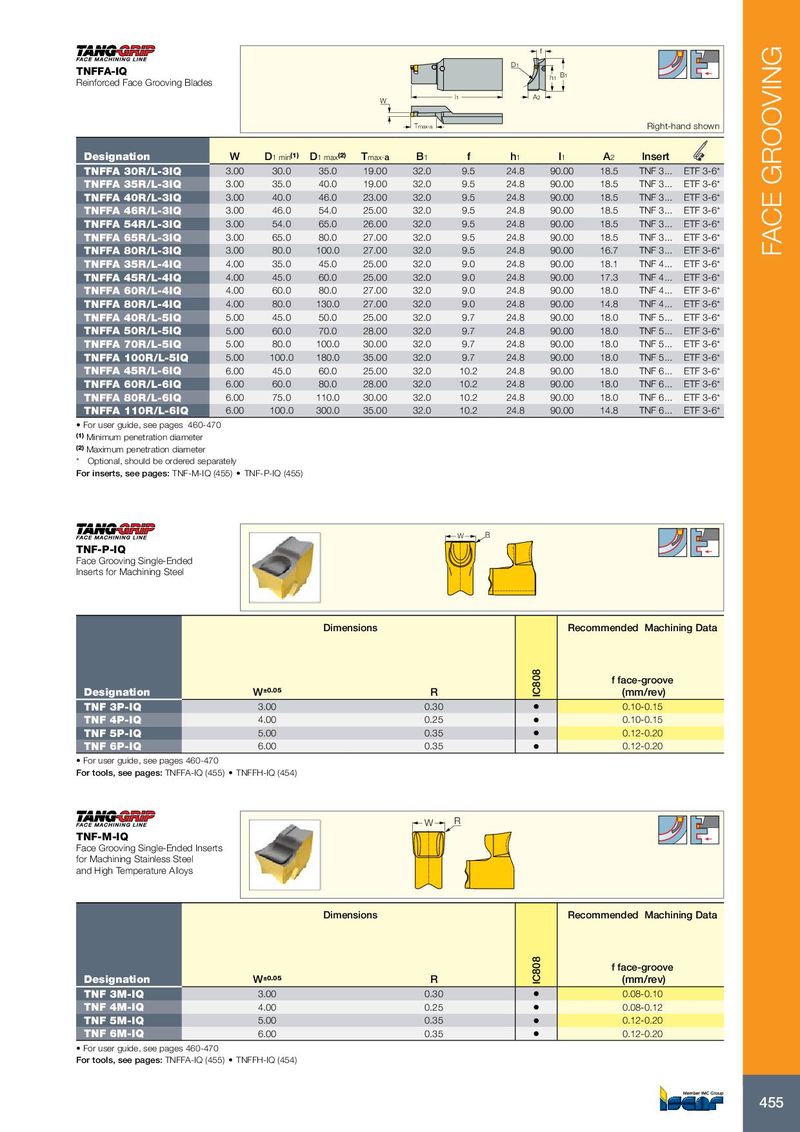

| D1 | f | ||||||||||
| TNFFA-IQ | B1 h | ||||||||||
| Reinforced Face Grooving Blades | 1 | ||||||||||
| W | l1 | A | 2 | ||||||||
| Tmax-a | Right-h | and shown | |||||||||
| Designation | W | D1 min(1) | D1 max(2) | Tmax-a | B1 | f | h1 | l1 | A2 | Insert | |
| TNFFA 30R/L-3IQ | 3.00 | 30.0 | 35.0 | 19.00 | 32.0 | 9.5 | 24.8 | 90.00 | 18.5 | TNF 3... | ETF 3-6 |
| TNFFA 35R/L-3IQ | 3.00 | 35.0 | 40.0 | 19.00 | 32.0 | 9.5 | 24.8 | 90.00 | 18.5 | TNF 3... | ETF 3-6 |
| TNFFA 40R/L-3IQ | 3.00 | 40.0 | 46.0 | 23.00 | 32.0 | 9.5 | 24.8 | 90.00 | 18.5 | TNF 3... | ETF 3-6 |
| TNFFA 46R/L-3IQ | 3.00 | 46.0 | 54.0 | 25.00 | 32.0 | 9.5 | 24.8 | 90.00 | 18.5 | TNF 3... | ETF 3-6 |
| TNFFA 54R/L-3IQ | 3.00 | 54.0 | 65.0 | 26.00 | 32.0 | 9.5 | 24.8 | 90.00 | 18.5 | TNF 3... | ETF 3-6 |
| TNFFA 65R/L-3IQ | 3.00 | 65.0 | 80.0 | 27.00 | 32.0 | 9.5 | 24.8 | 90.00 | 18.5 | TNF 3... | ETF 3-6 |
| TNFFA 80R/L-3IQ | 3.00 | 80.0 | 100.0 | 27.00 | 32.0 | 9.5 | 24.8 | 90.00 | 16.7 | TNF 3... | ETF 3-6 |
| TNFFA 35R/L-4IQ | 4.00 | 35.0 | 45.0 | 25.00 | 32.0 | 9.0 | 24.8 | 90.00 | 18.1 | TNF 4... | ETF 3-6 |
| TNFFA 45R/L-4IQ | 4.00 | 45.0 | 60.0 | 25.00 | 32.0 | 9.0 | 24.8 | 90.00 | 17.3 | TNF 4... | ETF 3-6 |
| TNFFA 60R/L-4IQ | 4.00 | 60.0 | 80.0 | 27.00 | 32.0 | 9.0 | 24.8 | 90.00 | 18.0 | TNF 4... | ETF 3-6 |
| TNFFA 80R/L-4IQ | 4.00 | 80.0 | 130.0 | 27.00 | 32.0 | 9.0 | 24.8 | 90.00 | 14.8 | TNF 4... | ETF 3-6 |
| TNFFA 40R/L-5IQ | 5.00 | 45.0 | 50.0 | 25.00 | 32.0 | 9.7 | 24.8 | 90.00 | 18.0 | TNF 5... | ETF 3-6 |
| TNFFA 50R/L-5IQ | 5.00 | 60.0 | 70.0 | 28.00 | 32.0 | 9.7 | 24.8 | 90.00 | 18.0 | TNF 5... | ETF 3-6 |
| TNFFA 70R/L-5IQ | 5.00 | 80.0 | 100.0 | 30.00 | 32.0 | 9.7 | 24.8 | 90.00 | 18.0 | TNF 5... | ETF 3-6 |
| TNFFA 100R/L-5IQ | 5.00 | 100.0 | 180.0 | 35.00 | 32.0 | 9.7 | 24.8 | 90.00 | 18.0 | TNF 5... | ETF 3-6 |
| TNFFA 45R/L-6IQ | 6.00 | 45.0 | 60.0 | 25.00 | 32.0 | 10.2 | 24.8 | 90.00 | 18.0 | TNF 6... | ETF 3-6 |
| TNFFA 60R/L-6IQ | 6.00 | 60.0 | 80.0 | 28.00 | 32.0 | 10.2 | 24.8 | 90.00 | 18.0 | TNF 6... | ETF 3-6 |
| TNFFA 80R/L-6IQ | 6.00 | 75.0 | 110.0 | 30.00 | 32.0 | 10.2 | 24.8 | 90.00 | 18.0 | TNF 6... | ETF 3-6 |
| TNFFA 110R/L-6IQ | 6.00 | 100.0 | 300.0 | 35.00 | 32.0 | 10.2 | 24.8 | 90.00 | 14.8 | TNF 6... | ETF 3-6 |
- For user guide, see pages 460-470
(1) Minimum penetration diameter (2) Maximum penetration diameter * Optional, should be ordered separately For inserts, see pages: TNF-M-IQ (455) TNF-P-IQ (455)
W R
TNF-P-IQ
Face Grooving Single-Ended Inserts for Machining Steel
Dimensions Recommended Machining Data
f face-groove
| Designation | W ±0.05 | R | (mm/rev) | |
| TNF 3P-IQ | 3.00 | 0.30 | • | 0.10-0.15 |
| TNF 4P-IQ | 4.00 | 0.25 | • | 0.10-0.15 |
| TNF 5P-IQ | 5.00 | 0.35 | • | 0.12-0.20 |
| TNF 6P-IQ | 6.00 | 0.35 | • | 0.12-0.20 |
- For user guide, see pages 460-470
For tools, see pages: TNFFA-IQ (455) TNFFH-IQ (454)
| NF-M-IQ ce Grooving Single-Ended Inserts r Machining Stainless Steel d High Temperature Alloys | W R | ||||
| Dimensions | Recommended Machining Data | ||||
| Designation | W±0.05 | R | IC808 | f face-groove (mm/rev) | |
| TNF 3M-IQ | 3.00 | 0.30 | • | 0.08-0.10 | |
| TNF 4M-IQ | 4.00 | 0.25 | • | 0.08-0.12 | |
| TNF 5M-IQ | 5.00 | 0.35 | • | 0.12-0.20 | |
| TNF 6M-IQ | 6.00 | 0.35 | • | 0.12-0.20 |
- For user guide, see pages 460-470
For tools, see pages: TNFFA-IQ (455) TNFFH-IQ (454)
