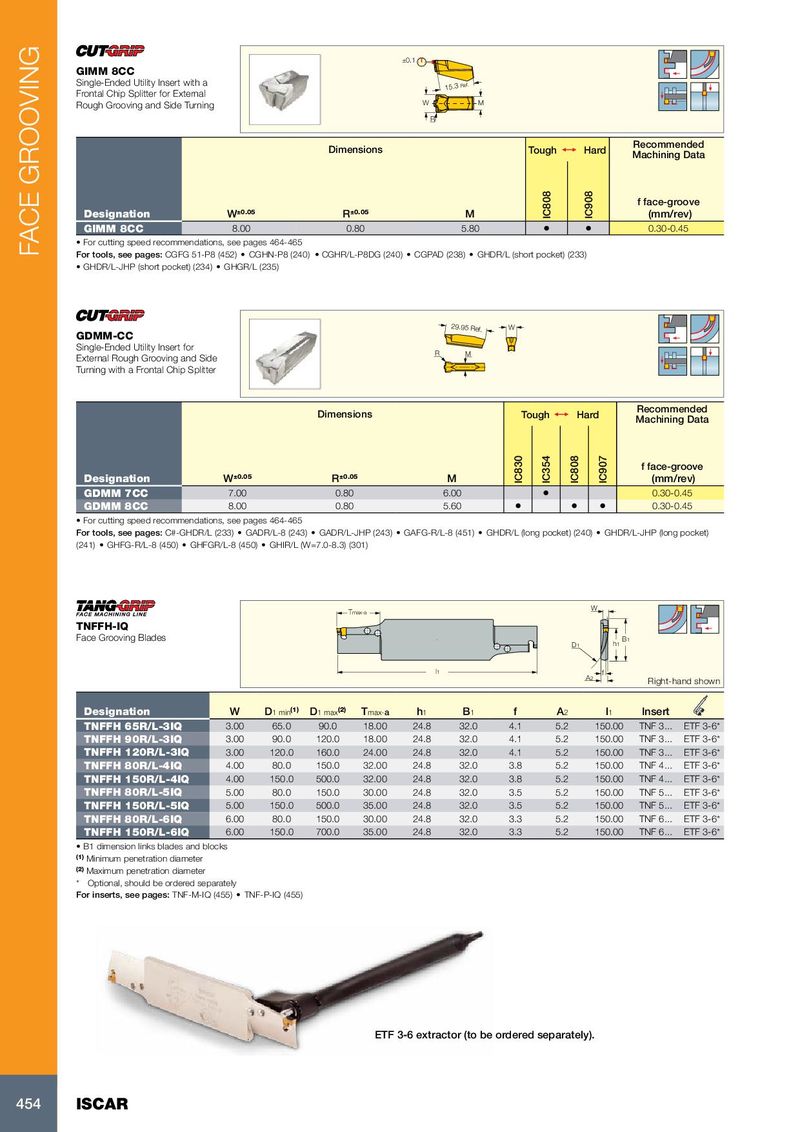

GIMM 8CC
Single-Ended Utility Insert with a Frontal Chip Splitter for External Rough Grooving and Side Turning
Dimensions
W M R
Tough 1 Hard
Recommended Machining Data
f face-groove
| Designation | W±0.05 | R ±0.05 | M | (mm/rev) | ||
| GIMM 8CC | 8.00 | 0.80 | 5.80 | • | • | 0.30-0.45 |
- For cutting speed recommendations, see pages 464-465
For tools, see pages: CGFG 51-P8 (452) CGHN-P8 (240) CGHR/L-P8DG (240) CGPAD (238) GHDR/L (short pocket) (233)
- GHDR/L-JHP (short pocket) (234)
- GHGR/L (235)
GDMM-CC
Single-Ended Utility Insert for External Rough Grooving and Side Turning with a Frontal Chip Splitter
Dimensions
29.95 Ref. W R M
Tough 1 Hard
Recommended Machining Data
f face-groove
| Designation | W±0.05 | R ±0.05 | M | (mm/rev) | ||||
| GDMM 7CC | 7.00 | 0.80 | 6.00 | • | 0.30-0.45 | |||
| GDMM 8CC | 8.00 | 0.80 | 5.60 | • | • | • | 0.30-0.45 |
- For cutting speed recommendations, see pages 464-465
For tools, see pages: C#-GHDR/L (233) GADR/L-8 (243) GADR/L-JHP (243) GAFG-R/L-8 (451) GHDR/L (long pocket) (240) GHDR/L-JHP (long pocket) (241) GHFG-R/L-8 (450) GHFGR/L-8 (450) GHIR/L (W=7.0-8.3) (301)
| T | max-a | W | |||||||||
| TNFFH-IQ | |||||||||||
| Face Grooving Blades | D1 | B1 h1 | |||||||||
| l1 | f A2 | Right-h | and shown | ||||||||
| Designation | W | D1 min(1) | D1 max(2) | Tmax-a | h1 | B1 | f | A2 | l1 | Insert | |
| TNFFH 65R/L-3IQ | 3.00 | 65.0 | 90.0 | 18.00 | 24.8 | 32.0 | 4.1 | 5.2 | 150.00 | TNF 3... | ETF 3-6 |
| TNFFH 90R/L-3IQ | 3.00 | 90.0 | 120.0 | 18.00 | 24.8 | 32.0 | 4.1 | 5.2 | 150.00 | TNF 3... | ETF 3-6 |
| TNFFH 120R/L-3IQ | 3.00 | 120.0 | 160.0 | 24.00 | 24.8 | 32.0 | 4.1 | 5.2 | 150.00 | TNF 3... | ETF 3-6 |
| TNFFH 80R/L-4IQ | 4.00 | 80.0 | 150.0 | 32.00 | 24.8 | 32.0 | 3.8 | 5.2 | 150.00 | TNF 4... | ETF 3-6 |
| TNFFH 150R/L-4IQ | 4.00 | 150.0 | 500.0 | 32.00 | 24.8 | 32.0 | 3.8 | 5.2 | 150.00 | TNF 4... | ETF 3-6 |
| TNFFH 80R/L-5IQ | 5.00 | 80.0 | 150.0 | 30.00 | 24.8 | 32.0 | 3.5 | 5.2 | 150.00 | TNF 5... | ETF 3-6 |
| TNFFH 150R/L-5IQ | 5.00 | 150.0 | 500.0 | 35.00 | 24.8 | 32.0 | 3.5 | 5.2 | 150.00 | TNF 5... | ETF 3-6 |
| TNFFH 80R/L-6IQ | 6.00 | 80.0 | 150.0 | 30.00 | 24.8 | 32.0 | 3.3 | 5.2 | 150.00 | TNF 6... | ETF 3-6 |
| TNFFH 150R/L-6IQ | 6.00 | 150.0 | 700.0 | 35.00 | 24.8 | 32.0 | 3.3 | 5.2 | 150.00 | TNF 6... | ETF 3-6 |
- B1 dimension links blades and blocks
(1) Minimum penetration diameter (2) Maximum penetration diameter * Optional, should be ordered separately For inserts, see pages: TNF-M-IQ (455) TNF-P-IQ (455)
ETF 3-6 extractor (to be ordered separately).
