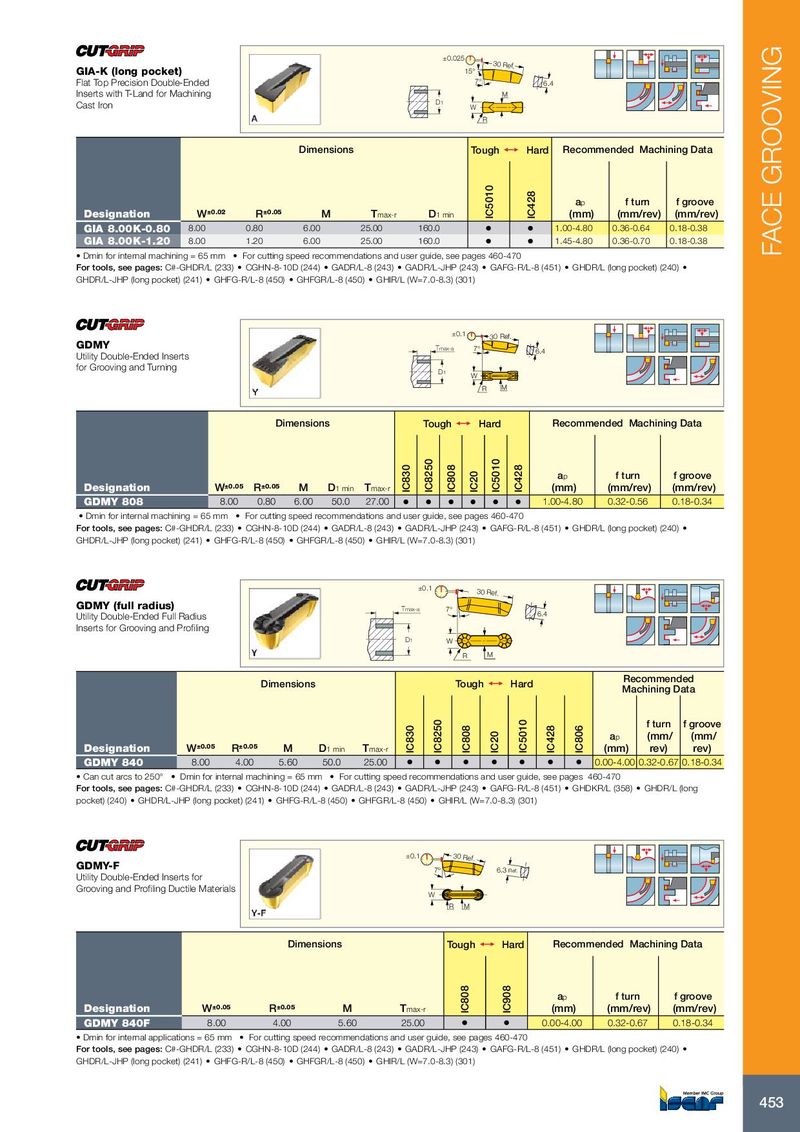

GIA-K (long pocket) 30 Ref.
| Flat Top Precision Double-Ended | 7° | 6.4 | |||
| Inserts with T-Land for Machining | M | ||||
| Cast Iron | D1 | ||||
| W | |||||
| R |
Dimensions Tough 1 Hard Recommended Machining Data
ap f turn f groove
| Designation | W±0.02 | R ±0.05 | M | Tmax-r | D1 min | (mm) | (mm/rev) | (mm/rev) | ||||
| GIA 8.00K-0.80 | 8.00 | 0.80 | 6.00 | 25.00 | 160.0 | • | • | 1.00-4.80 | 0.36-0.64 | 0.18-0.38 | ||
| GIA 8.00K-1.20 | 8.00 | 1.20 | 6.00 | 25.00 | 160.0 | • | • | 1.45-4.80 | 0.36-0.70 | 0.18-0.38 |
- Dmin for internal machining = 65 mm
- For cutting speed recommendations and user guide, see pages 460-470
For tools, see pages: C#-GHDR/L (233) CGHN-8-10D (244) GADR/L-8 (243) GADR/L-JHP (243) GAFG-R/L-8 (451) GHDR/L (long pocket) (240) GHDR/L-JHP (long pocket) (241) GHFG-R/L-8 (450) GHFGR/L-8 (450) GHIR/L (W=7.0-8.3) (301)
GDMY
Utility Double-Ended Inserts for Grooving and Turning
Dimensions
±0.1 30 Ref.
Tmax-a 7° 6.4
D 1 W R M
Tough 1 Hard Recommended Machining Data
ap f turn f groove
| Designation | W ±0.05 | R ±0.05 | M | D1 min | Tmax-r | (mm) | (mm/rev) | (mm/rev) | |
| GDMY 808 | 8.00 | 0.80 | 6.00 | 50.0 | 27.00 | • • • • • • | 1.00-4.80 | 0.32-0.56 | 0.18-0.34 |
- Dmin for internal machining = 65 mm
- For cutting speed recommendations and user guide, see pages 460-470
For tools, see pages: C#-GHDR/L (233) CGHN-8-10D (244) GADR/L-8 (243) GADR/L-JHP (243) GAFG-R/L-8 (451) GHDR/L (long pocket) (240) GHDR/L-JHP (long pocket) (241) GHFG-R/L-8 (450) GHFGR/L-8 (450) GHIR/L (W=7.0-8.3) (301)
±0.1 30 Ref.
GDMY (full radius)
Tmax-a 7° Utility Double-Ended Full Radius 6.4 Inserts for Grooving and Profiling D1 W R M Recommended Dimensions Tough 1 Hard Machining Data
f turn f groove
ap (mm/ (mm/
| Designation | W±0.05 | R ±0.05 | M | D1 min | Tmax-r | (mm) | rev) | rev) | |||||||
| GDMY 840 | 8.00 | 4.00 | 5.60 | 50.0 | 25.00 | • | • | • | • | • | • | • | 0.00-4.00 0.32-0.67 0.18-0.34 |
- Can cut arcs to 250°
- Dmin for internal machining = 65 mm
- For cutting speed recommendations and user guide, see pages 460-470
For tools, see pages: C#-GHDR/L (233) CGHN-8-10D (244) GADR/L-8 (243) GADR/L-JHP (243) GAFG-R/L-8 (451) GHDKR/L (358) GHDR/L (long pocket) (240) GHDR/L-JHP (long pocket) (241) GHFG-R/L-8 (450) GHFGR/L-8 (450) GHIR/L (W=7.0-8.3) (301)
GDMY-F
Utility Double-Ended Inserts for Grooving and Profiling Ductile Materials
Dimensions
±0.1 30 Ref. 7º 6.3 Ref.
W R M
Tough 1 Hard Recommended Machining Data
ap f turn f groove
| Designation | W±0.05 | R ±0.05 | M | Tmax-r | (mm) | (mm/rev) | (mm/rev) | ||
| GDMY 840F | 8.00 | 4.00 | 5.60 | 25.00 | • | • | 0.00-4.00 | 0.32-0.67 | 0.18-0.34 |
- Dmin for internal applications = 65 mm
- For cutting speed recommendations and user guide, see pages 460-470
For tools, see pages: C#-GHDR/L (233) CGHN-8-10D (244) GADR/L-8 (243) GADR/L-JHP (243) GAFG-R/L-8 (451) GHDR/L (long pocket) (240) GHDR/L-JHP (long pocket) (241) GHFG-R/L-8 (450) GHFGR/L-8 (450) GHIR/L (W=7.0-8.3) (301)
