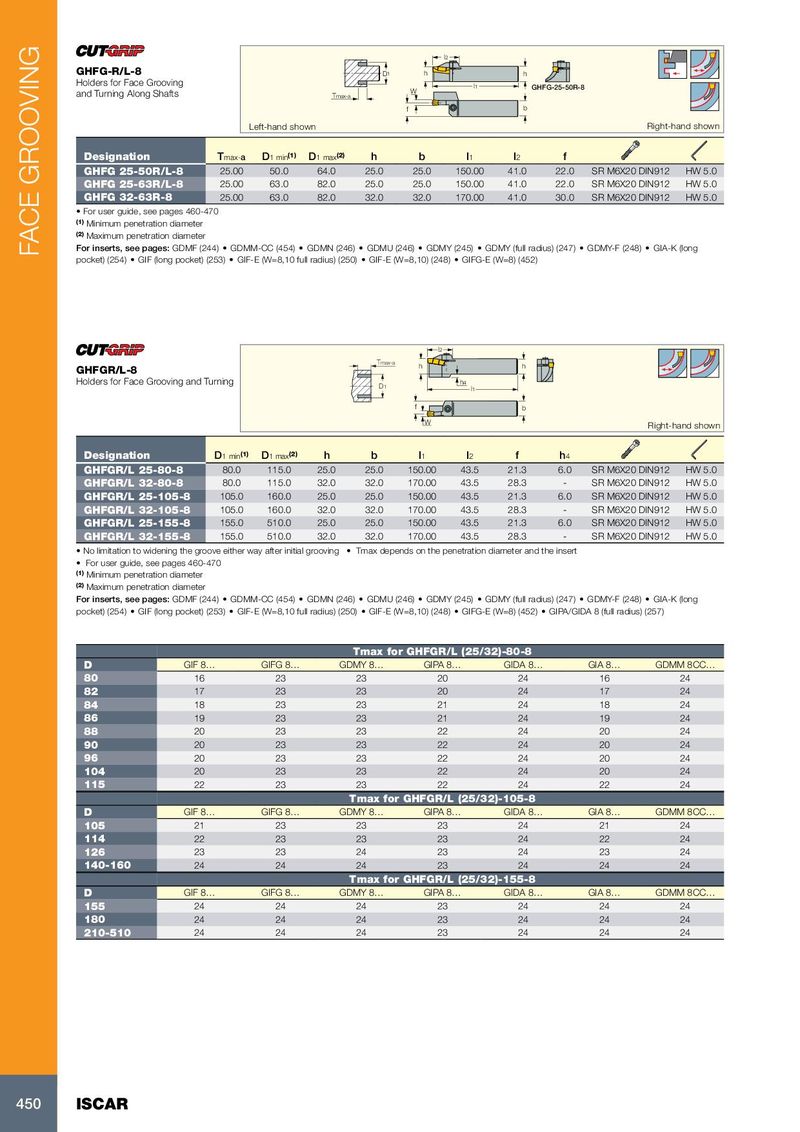

Каталог Iscar токарный инструмент 2017 - страница 454
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| GHFG-R/L-8 HlfFGi | D1 | l h | 2 | h | ||||||
| oders or ace roovng and Turning Along Shafts | Tmax-a | W f | l1 | G b | HFG-25-50R-8 | |||||
| Left-hand sho | wn | Right-ha | nd shown | |||||||
| Designation | Tmax-a | D1 min(1) | D1 max(2) | h | b | l1 | l2 | f | ||
| GHFG 25-50R/L-8 | 25.00 | 50.0 | 64.0 | 25.0 | 25.0 | 150.00 | 41.0 | 22.0 | SR M6X20 DIN912 | HW 5.0 |
| GHFG 25-63R/L-8 | 25.00 | 63.0 | 82.0 | 25.0 | 25.0 | 150.00 | 41.0 | 22.0 | SR M6X20 DIN912 | HW 5.0 |
| GHFG 32-63R-8 | 25.00 | 63.0 | 82.0 | 32.0 | 32.0 | 170.00 | 41.0 | 30.0 | SR M6X20 DIN912 | HW 5.0 |
- For user guide, see pages 460-470
(1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: GDMF (244) GDMM-CC (454) GDMN (246) GDMU (246) GDMY (245) GDMY (full radius) (247) GDMY-F (248) GIA-K (long pocket) (254) GIF (long pocket) (253) GIF-E (W=8,10 full radius) (250) GIF-E (W=8,10) (248) GIFG-E (W=8) (452)
| GHFGR/L-8 Holders for Face Grooving and | Turning | D1 Tmax-a | l2 h f W | l1 h4 | b h | Right-h | and shown | |||
| Designation | D1 min(1) | D1 max(2) | h | b | l1 | l2 | f | h4 | ||
| GHFGR/L 25-80-8 | 80.0 | 115.0 | 25.0 | 25.0 | 150.00 | 43.5 | 21.3 | 6.0 | SR M6X20 DIN912 | HW 5.0 |
| GHFGR/L 32-80-8 | 80.0 | 115.0 | 32.0 | 32.0 | 170.00 | 43.5 | 28.3 | - | SR M6X20 DIN912 | HW 5.0 |
| GHFGR/L 25-105-8 | 105.0 | 160.0 | 25.0 | 25.0 | 150.00 | 43.5 | 21.3 | 6.0 | SR M6X20 DIN912 | HW 5.0 |
| GHFGR/L 32-105-8 | 105.0 | 160.0 | 32.0 | 32.0 | 170.00 | 43.5 | 28.3 | - | SR M6X20 DIN912 | HW 5.0 |
| GHFGR/L 25-155-8 | 155.0 | 510.0 | 25.0 | 25.0 | 150.00 | 43.5 | 21.3 | 6.0 | SR M6X20 DIN912 | HW 5.0 |
| GHFGR/L 32-155-8 | 155.0 | 510.0 | 32.0 | 32.0 | 170.00 | 43.5 | 28.3 | - | SR M6X20 DIN912 | HW 5.0 |
- No limitation to widening the groove either way after initial grooving
- Tmax depends on the penetration diameter and the insert
- For user guide, see pages 460-470
(1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: GDMF (244) GDMM-CC (454) GDMN (246) GDMU (246) GDMY (245) GDMY (full radius) (247) GDMY-F (248) GIA-K (long pocket) (254) GIF (long pocket) (253) GIF-E (W=8,10 full radius) (250) GIF-E (W=8,10) (248) GIFG-E (W=8) (452) GIPA/GIDA 8 (full radius) (257)
| Tmax fo | rGHFGR/L (25 | /32)-80-8 | |||||
| D | GIF 8… | GIFG 8… | GDMY 8… | GIPA 8… | GIDA 8… | GIA 8… | GDMM 8CC… |
| 80 | 16 | 23 | 23 | 20 | 24 | 16 | 24 |
| 82 | 17 | 23 | 23 | 20 | 24 | 17 | 24 |
| 84 | 18 | 23 | 23 | 21 | 24 | 18 | 24 |
| 86 | 19 | 23 | 23 | 21 | 24 | 19 | 24 |
| 88 | 20 | 23 | 23 | 22 | 24 | 20 | 24 |
| 90 | 20 | 23 | 23 | 22 | 24 | 20 | 24 |
| 96 | 20 | 23 | 23 | 22 | 24 | 20 | 24 |
| 104 | 20 | 23 | 23 | 22 | 24 | 20 | 24 |
| 115 | 22 | 23 | 23 | 22 | 24 | 22 | 24 |
| Tmax for | GHFGR/L (25/ | 32)-105-8 | |||||
| D | GIF 8… | GIFG 8… | GDMY 8… | GIPA 8… | GIDA 8… | GIA 8… | GDMM 8CC… |
| 105 | 21 | 23 | 23 | 23 | 24 | 21 | 24 |
| 114 | 22 | 23 | 23 | 23 | 24 | 22 | 24 |
| 126 | 23 | 23 | 24 | 23 | 24 | 23 | 24 |
| 140-160 | 24 | 24 | 24 | 23 | 24 | 24 | 24 |
| Tmax for | GHFGR/L (25/ | 32)-155-8 | |||||
| D | GIF 8… | GIFG 8… | GDMY 8… | GIPA 8… | GIDA 8… | GIA 8… | GDMM 8CC… |
| 155 | 24 | 24 | 24 | 23 | 24 | 24 | 24 |
| 180 | 24 | 24 | 24 | 23 | 24 | 24 | 24 |
| 210-510 | 24 | 24 | 24 | 23 | 24 | 24 | 24 |
