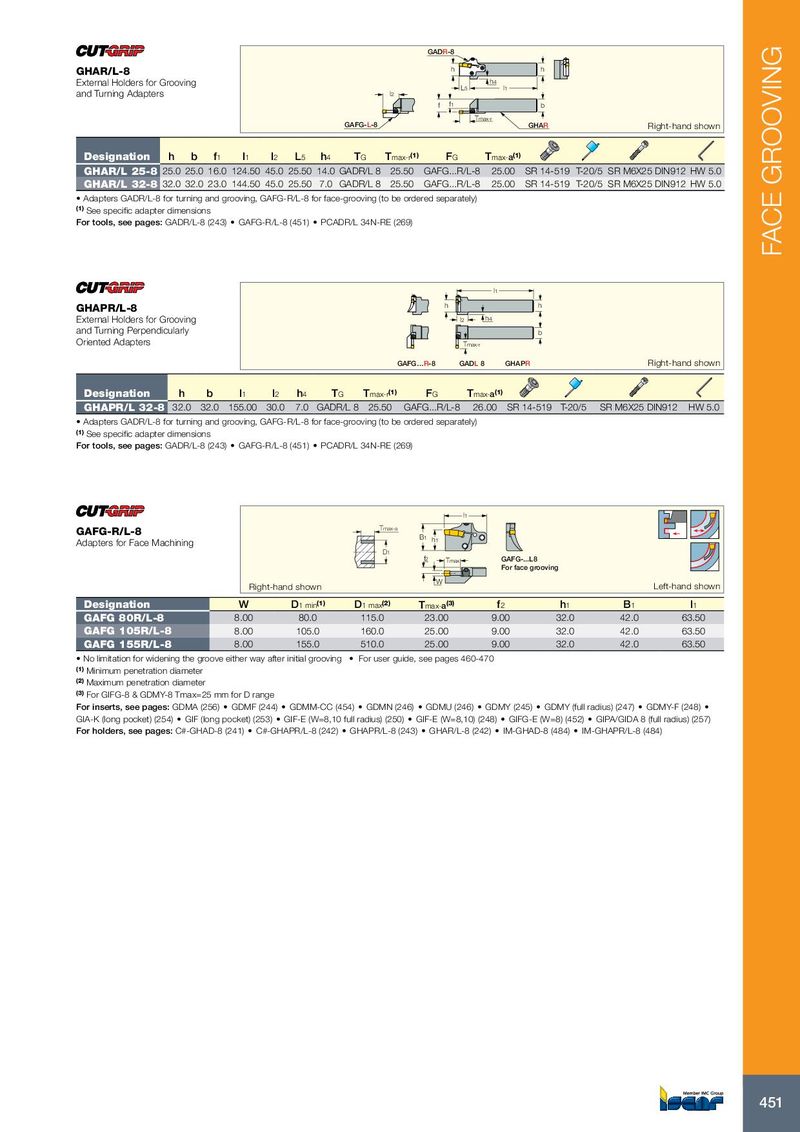

GADR-8
| GHAR/L-8 | h | h | ||||
| External Holders for Grooving | h4 | |||||
| and Turning Adapters | L5 | l 1 | ||||
| f | f1 | b | ||||
| Tmax-r |
GAFG-L-8 GHAR Right-hand shown
Designation h b f1 l1 l2 L5 h4 TG Tmax-r(1) FG Tmax-a(1)
GHAR/L 25-8 25.0 25.0 16.0 124.50 45.0 25.50 14.0 GADR/L 8 25.50 GAFG...R/L-8 25.00 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0 GHAR/L 32-8 32.0 32.0 23.0 144.50 45.0 25.50 7.0 GADR/L 8 25.50 GAFG...R/L-8 25.00 SR 14-519 T-20/5 SR M6X25 DIN912 HW 5.0
- Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately)
(1) See specific adapter dimensions For tools, see pages: GADR/L-8 (243) GAFG-R/L-8 (451) PCADR/L 34N-RE (269)
l1
GHAPR/L-8 h h
| External Holders for Grooving | l2 | h4 | |
| and Turning Perpendicularly | b | ||
| Oriented Adapters | T | ||
| max-r |
GAFG…R-8 GADL 8 GHAPR Right-hand shown
| Designation | h | b | l1 | l2 | h4 | TG | Tmax-r(1) | F G | Tmax-a(1) | ||
| GHAPR/L 32-8 | 32.0 32.0 155.00 30.0 7.0 GADR/L 8 25.50 | GAFG...R/L-8 | 26.00 SR 14-519 T-20/5 | SR M6X25 DIN912 HW 5.0 |
- Adapters GADR/L-8 for turning and grooving, GAFG-R/L-8 for face-grooving (to be ordered separately)
(1) See specific adapter dimensions For tools, see pages: GADR/L-8 (243) GAFG-R/L-8 (451) PCADR/L 34N-RE (269)
| l1 | ||||||||
| GAFG-R/L-8 Adapters for Face Machining | Right- | hand shown | D1 Tmax-a | B1 h1 f2 W Tmax | GAFG-...L8 For face gr | ooving | Left-hand shown | |
| Designation | W | D1 min(1) | D1 max(2) | Tmax-a(3) | f2 | h1 | B1 | l1 |
| GAFG 80R/L-8 | 8.00 | 80.0 | 115.0 | 23.00 | 9.00 | 32.0 | 42.0 | 63.50 |
| GAFG 105R/L-8 | 8.00 | 105.0 | 160.0 | 25.00 | 9.00 | 32.0 | 42.0 | 63.50 |
| GAFG 155R/L-8 | 8.00 | 155.0 | 510.0 | 25.00 | 9.00 | 32.0 | 42.0 | 63.50 |
- No limitation for widening the groove either way after initial grooving
- For user guide, see pages 460-470
(1) Minimum penetration diameter (2) Maximum penetration diameter (3) For GIFG-8 & GDMY-8 Tmax=25 mm for D range For inserts, see pages: GDMA (256) GDMF (244) GDMM-CC (454) GDMN (246) GDMU (246) GDMY (245) GDMY (full radius) (247) GDMY-F (248) GIA-K (long pocket) (254) GIF (long pocket) (253) GIF-E (W=8,10 full radius) (250) GIF-E (W=8,10) (248) GIFG-E (W=8) (452) GIPA/GIDA 8 (full radius) (257) For holders, see pages: C#-GHAD-8 (241) C#-GHAPR/L-8 (242) GHAPR/L-8 (243) GHAR/L-8 (242) IM-GHAD-8 (484) IM-GHAPR/L-8 (484)
