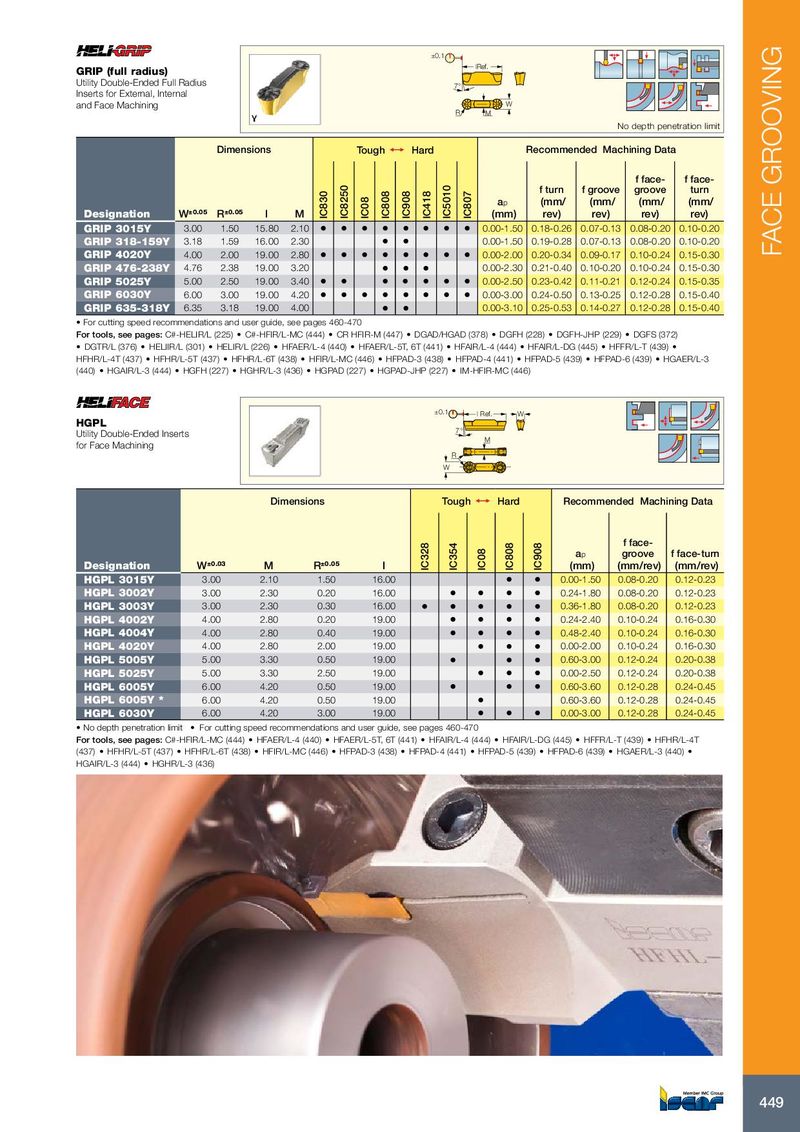

FACE GROOVING
±0.1
lRef.
GRIP (full radius)
Utility Double-Ended Full Radius 7°
Inserts for External, Internal
and Face Machining W
R M
No depth penetration limit
Dimensions Tough 1 Hard Recommended Machining Data
f face- f face-
f turn f groove groove turn


IC8250


IC5010
IC830


IC808
IC908
IC418

IC807
ap (mm/ (mm/ (mm/ (mm/


IC08
Designation W±0.05 R±0.05 l M (mm) rev) rev) rev) rev)
GRIP 3015Y 3.00 1.50 15.80 2.10 • • • • • • • • 0.00-1.50 0.18-0.26 0.07-0.13 0.08-0.20 0.10-0.20
GRIP 318-159Y 3.18 1.59 16.00 2.30 • • 0.00-1.50 0.19-0.28 0.07-0.13 0.08-0.20 0.10-0.20
GRIP 4020Y 4.00 2.00 19.00 2.80 • • • • • • • • 0.00-2.00 0.20-0.34 0.09-0.17 0.10-0.24 0.15-0.30
GRIP 476-238Y 4.76 2.38 19.00 3.20 • • • 0.00-2.30 0.21-0.40 0.10-0.20 0.10-0.24 0.15-0.30
GRIP 5025Y 5.00 2.50 19.00 3.40 • • • • • • • 0.00-2.50 0.23-0.42 0.11-0.21 0.12-0.24 0.15-0.35
GRIP 6030Y 6.00 3.00 19.00 4.20 • • • • • • • • 0.00-3.00 0.24-0.50 0.13-0.25 0.12-0.28 0.15-0.40
GRIP 635-318Y 6.35 3.18 19.00 4.00 • • 0.00-3.10 0.25-0.53 0.14-0.27 0.12-0.28 0.15-0.40
• For cutting speed recommendations and user guide, see pages 460-470
For tools, see pages: C#-HELIR/L (225) • C#-HFIR/L-MC (444) • CR HFIR-M (447) • DGAD/HGAD (378) • DGFH (228) • DGFH-JHP (229) • DGFS (372)
• DGTR/L (376) • HELIIR/L (301) • HELIR/L (226) • HFAER/L-4 (440) • HFAER/L-5T, 6T (441) • HFAIR/L-4 (444) • HFAIR/L-DG (445) • HFFR/L-T (439) •
HFHR/L-4T (437) • HFHR/L-5T (437) • HFHR/L-6T (438) • HFIR/L-MC (446) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGAER/L-3
(440) • HGAIR/L-3 (444) • HGFH (227) • HGHR/L-3 (436) • HGPAD (227) • HGPAD-JHP (227) • IM-HFIR-MC (446)

±0.1 l Ref. W
HGPL
7°
Utility Double-Ended Inserts
M
for Face Machining
R
W

Dimensions Tough 1 Hard Recommended Machining Data

f face-
IC328
IC354


IC808
IC908
ap groove f face-turn
IC08


Designation W±0.03 M R±0.05 l (mm) (mm/rev) (mm/rev)
HGPL 3015Y 3.00 2.10 1.50 16.00 • • 0.00-1.50 0.08-0.20 0.12-0.23
HGPL 3002Y 3.00 2.30 0.20 16.00 • • • • 0.24-1.80 0.08-0.20 0.12-0.23
HGPL 3003Y 3.00 2.30 0.30 16.00 • • • • • 0.36-1.80 0.08-0.20 0.12-0.23
HGPL 4002Y 4.00 2.80 0.20 19.00 • • • • 0.24-2.40 0.10-0.24 0.16-0.30
HGPL 4004Y 4.00 2.80 0.40 19.00 • • • • 0.48-2.40 0.10-0.24 0.16-0.30
HGPL 4020Y 4.00 2.80 2.00 19.00 • • • 0.00-2.00 0.10-0.24 0.16-0.30
HGPL 5005Y 5.00 3.30 0.50 19.00 • • • 0.60-3.00 0.12-0.24 0.20-0.38
HGPL 5025Y 5.00 3.30 2.50 19.00 • • • 0.00-2.50 0.12-0.24 0.20-0.38
HGPL 6005Y 6.00 4.20 0.50 19.00 • • • 0.60-3.60 0.12-0.28 0.24-0.45
HGPL 6005Y * 6.00 4.20 0.50 19.00 • 0.60-3.60 0.12-0.28 0.24-0.45
HGPL 6030Y 6.00 4.20 3.00 19.00 • • • 0.00-3.00 0.12-0.28 0.24-0.45
• No depth penetration limit • For cutting speed recommendations and user guide, see pages 460-470
For tools, see pages: C#-HFIR/L-MC (444) • HFAER/L-4 (440) • HFAER/L-5T, 6T (441) • HFAIR/L-4 (444) • HFAIR/L-DG (445) • HFFR/L-T (439) • HFHR/L-4T
(437) • HFHR/L-5T (437) • HFHR/L-6T (438) • HFIR/L-MC (446) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGAER/L-3 (440) •
HGAIR/L-3 (444) • HGHR/L-3 (436)


449
