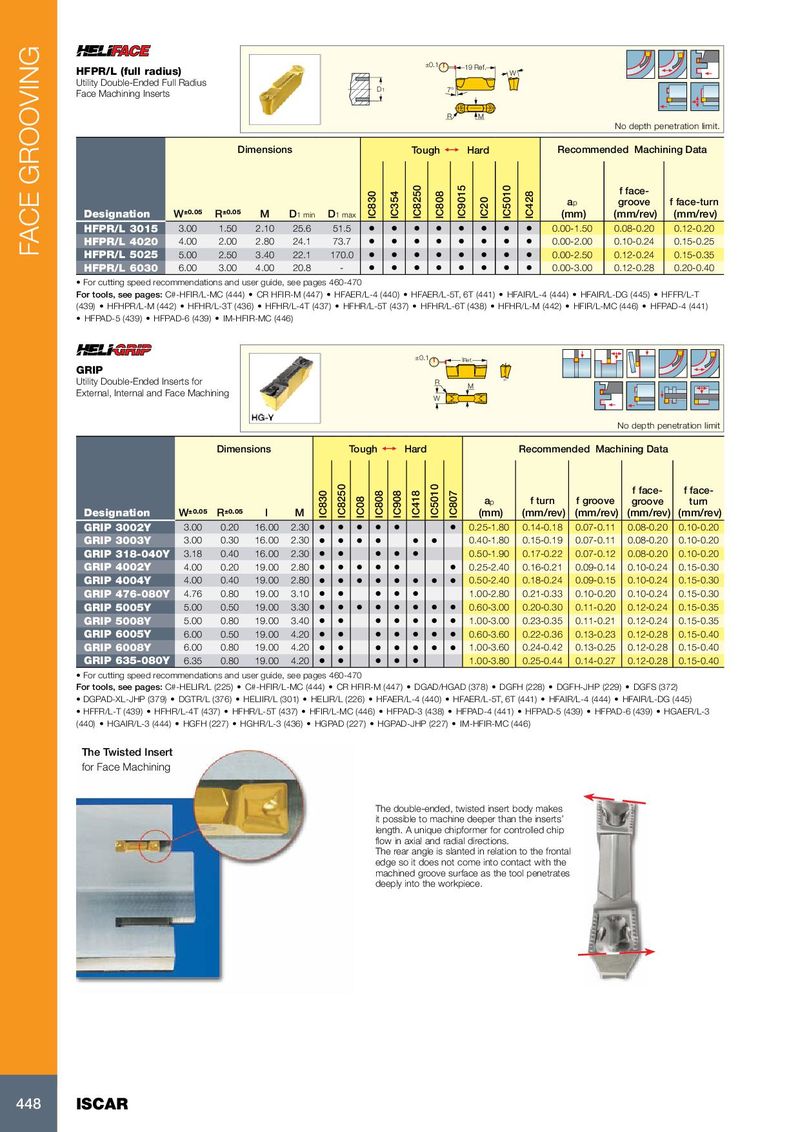

FACE GROOVING
±0.1 19 Ref.
HFPR/L (full radius) W
Utility Double-Ended Full Radius
D1 7°
Face Machining Inserts
R M
No depth penetration limit.
Dimensions Tough 1 Hard Recommended Machining Data

f face-


IC8250

IC9015

IC5010
IC830
IC354

IC808


IC428
ap groove f face-turn


IC20
Designation W ±0.05 R±0.05 M D1 min D1 max (mm) (mm/rev) (mm/rev)
HFPR/L 3015 3.00 1.50 2.10 25.6 51.5 • • • • • • • • 0.00-1.50 0.08-0.20 0.12-0.20
HFPR/L 4020 4.00 2.00 2.80 24.1 73.7 • • • • • • • • 0.00-2.00 0.10-0.24 0.15-0.25
HFPR/L 5025 5.00 2.50 3.40 22.1 170.0 • • • • • • • • 0.00-2.50 0.12-0.24 0.15-0.35
HFPR/L 6030 6.00 3.00 4.00 20.8 - • • • • • • • • 0.00-3.00 0.12-0.28 0.20-0.40
• For cutting speed recommendations and user guide, see pages 460-470
For tools, see pages: C#-HFIR/L-MC (444) • CR HFIR-M (447) • HFAER/L-4 (440) • HFAER/L-5T, 6T (441) • HFAIR/L-4 (444) • HFAIR/L-DG (445) • HFFR/L-T
(439) • HFHPR/L-M (442) • HFHR/L-3T (436) • HFHR/L-4T (437) • HFHR/L-5T (437) • HFHR/L-6T (438) • HFHR/L-M (442) • HFIR/L-MC (446) • HFPAD-4 (441)
• HFPAD-5 (439) • HFPAD-6 (439) • IM-HFIR-MC (446)

±0.1 lRef.
GRIP
Utility Double-Ended Inserts for R
M
External, Internal and Face Machining W

No depth penetration limit
Dimensions Tough 1 Hard Recommended Machining Data

f face- f face-
IC8250


IC5010
IC830


IC808
IC908
IC418

IC807

ap f turn f groove groove turn
IC08


Designation W±0.05 R±0.05 l M (mm) (mm/rev) (mm/rev) (mm/rev) (mm/rev)
GRIP 3002Y 3.00 0.20 16.00 2.30 • • • • • • 0.25-1.80 0.14-0.18 0.07-0.11 0.08-0.20 0.10-0.20
GRIP 3003Y 3.00 0.30 16.00 2.30 • • • • • • 0.40-1.80 0.15-0.19 0.07-0.11 0.08-0.20 0.10-0.20
GRIP 318-040Y 3.18 0.40 16.00 2.30 • • • • • 0.50-1.90 0.17-0.22 0.07-0.12 0.08-0.20 0.10-0.20
GRIP 4002Y 4.00 0.20 19.00 2.80 • • • • • • 0.25-2.40 0.16-0.21 0.09-0.14 0.10-0.24 0.15-0.30
GRIP 4004Y 4.00 0.40 19.00 2.80 • • • • • • • • 0.50-2.40 0.18-0.24 0.09-0.15 0.10-0.24 0.15-0.30
GRIP 476-080Y 4.76 0.80 19.00 3.10 • • • • • 1.00-2.80 0.21-0.33 0.10-0.20 0.10-0.24 0.15-0.30
GRIP 5005Y 5.00 0.50 19.00 3.30 • • • • • • • • 0.60-3.00 0.20-0.30 0.11-0.20 0.12-0.24 0.15-0.35
GRIP 5008Y 5.00 0.80 19.00 3.40 • • • • • • • 1.00-3.00 0.23-0.35 0.11-0.21 0.12-0.24 0.15-0.35
GRIP 6005Y 6.00 0.50 19.00 4.20 • • • • • • • 0.60-3.60 0.22-0.36 0.13-0.23 0.12-0.28 0.15-0.40
GRIP 6008Y 6.00 0.80 19.00 4.20 • • • • • • • 1.00-3.60 0.24-0.42 0.13-0.25 0.12-0.28 0.15-0.40
GRIP 635-080Y 6.35 0.80 19.00 4.20 • • • • • 1.00-3.80 0.25-0.44 0.14-0.27 0.12-0.28 0.15-0.40
• For cutting speed recommendations and user guide, see pages 460-470
For tools, see pages: C#-HELIR/L (225) • C#-HFIR/L-MC (444) • CR HFIR-M (447) • DGAD/HGAD (378) • DGFH (228) • DGFH-JHP (229) • DGFS (372)
• DGPAD-XL-JHP (379) • DGTR/L (376) • HELIIR/L (301) • HELIR/L (226) • HFAER/L-4 (440) • HFAER/L-5T, 6T (441) • HFAIR/L-4 (444) • HFAIR/L-DG (445)
• HFFR/L-T (439) • HFHR/L-4T (437) • HFHR/L-5T (437) • HFIR/L-MC (446) • HFPAD-3 (438) • HFPAD-4 (441) • HFPAD-5 (439) • HFPAD-6 (439) • HGAER/L-3
(440) • HGAIR/L-3 (444) • HGFH (227) • HGHR/L-3 (436) • HGPAD (227) • HGPAD-JHP (227) • IM-HFIR-MC (446)

The Twisted Insert
for Face Machining

The double-ended, twisted insert body makes
it possible to machine deeper than the inserts’
length. A unique chipformer for controlled chip
flow in axial and radial directions.
The rear angle is slanted in relation to the frontal
edge so it does not come into contact with the
machined groove surface as the tool penetrates
deeply into the workpiece.
