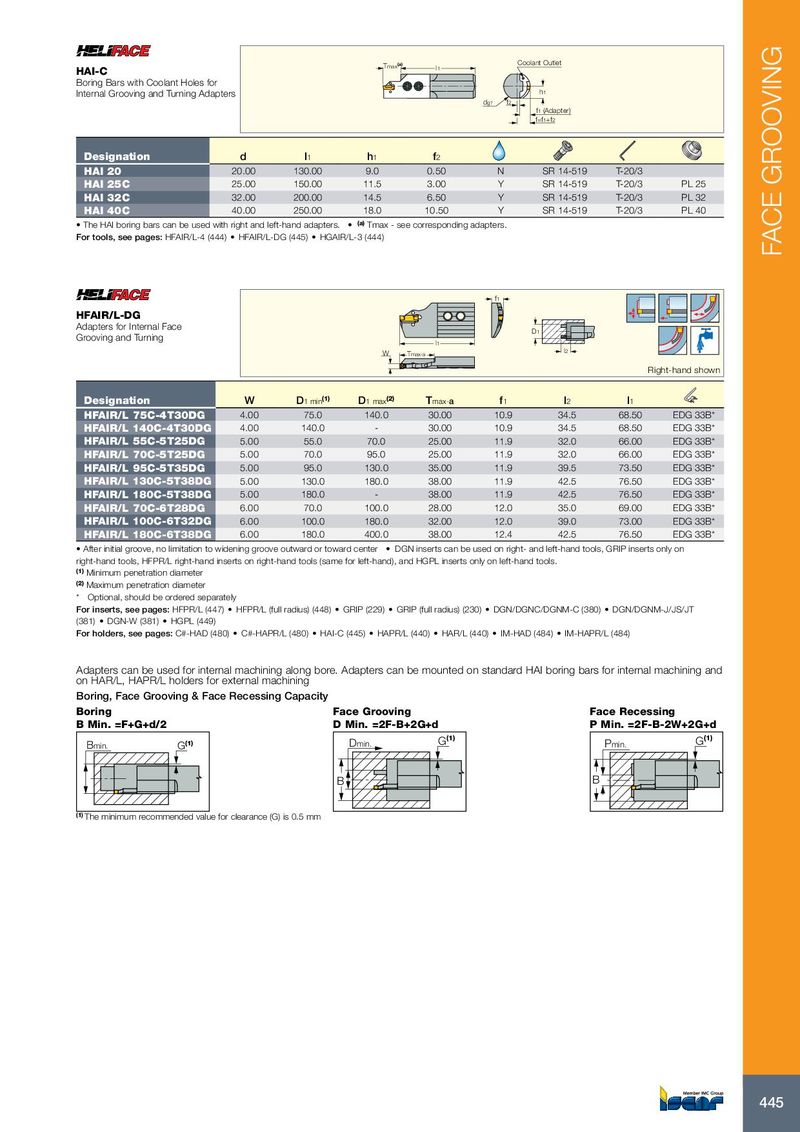

Каталог Iscar токарный инструмент 2017 - страница 449
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
T Coolant Outlet
HAI-C max(a) l
Boring Bars with Coolant Holes for Internal Grooving and Turning Adapters h1 dg7 f2 f1 (Adapter) f=f1+f2
| Designation | d | l1 | h1 | f2 | ||||
| HAI 20 | 20.00 | 130.00 | 9.0 | 0.50 | N | SR 14-519 | T-20/3 | |
| HAI 25C | 25.00 | 150.00 | 11.5 | 3.00 | Y | SR 14-519 | T-20/3 | PL 25 |
| HAI 32C | 32.00 | 200.00 | 14.5 | 6.50 | Y | SR 14-519 | T-20/3 | PL 32 |
| HAI 40C | 40.00 | 250.00 | 18.0 | 10.50 | Y | SR 14-519 | T-20/3 | PL 40 |
- The HAI boring bars can be used with right and left-hand adapters.
- (a) Tmax - see corresponding adapters.
For tools, see pages: HFAIR/L-4 (444) HFAIR/L-DG (445) HGAIR/L-3 (444)
f1
HFAIR/L-DG
Adapters for Internal Face Grooving and Turning D1 l 1
W T l 2
max-a Right-hand shown
| Designation | W | D1 min(1) | D1 max(2) | Tmax-a | f1 | l2 | l1 | |
| HFAIR/L 75C-4T30DG | 4.00 | 75.0 | 140.0 | 30.00 | 10.9 | 34.5 | 68.50 | EDG 33B* |
| HFAIR/L 140C-4T30DG | 4.00 | 140.0 | - | 30.00 | 10.9 | 34.5 | 68.50 | EDG 33B* |
| HFAIR/L 55C-5T25DG | 5.00 | 55.0 | 70.0 | 25.00 | 11.9 | 32.0 | 66.00 | EDG 33B* |
| HFAIR/L 70C-5T25DG | 5.00 | 70.0 | 95.0 | 25.00 | 11.9 | 32.0 | 66.00 | EDG 33B* |
| HFAIR/L 95C-5T35DG | 5.00 | 95.0 | 130.0 | 35.00 | 11.9 | 39.5 | 73.50 | EDG 33B* |
| HFAIR/L 130C-5T38DG | 5.00 | 130.0 | 180.0 | 38.00 | 11.9 | 42.5 | 76.50 | EDG 33B* |
| HFAIR/L 180C-5T38DG | 5.00 | 180.0 | - | 38.00 | 11.9 | 42.5 | 76.50 | EDG 33B* |
| HFAIR/L 70C-6T28DG | 6.00 | 70.0 | 100.0 | 28.00 | 12.0 | 35.0 | 69.00 | EDG 33B* |
| HFAIR/L 100C-6T32DG | 6.00 | 100.0 | 180.0 | 32.00 | 12.0 | 39.0 | 73.00 | EDG 33B* |
| HFAIR/L 180C-6T38DG | 6.00 | 180.0 | 400.0 | 38.00 | 12.4 | 42.5 | 76.50 | EDG 33B* |
- After initial groove, no limitation to widening groove outward or toward center
- DGN inserts can be used on right- and left-hand tools, GRIP inserts only on
right-hand tools, HFPR/L right-hand inserts on right-hand tools (same for left-hand), and HGPL inserts only on left-hand tools. (1) Minimum penetration diameter (2) Maximum penetration diameter * Optional, should be ordered separately For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) DGN-W (381) HGPL (449) For holders, see pages: C#-HAD (480) C#-HAPR/L (480) HAI-C (445) HAPR/L (440) HAR/L (440) IM-HAD (484) IM-HAPR/L (484)
Adapters can be used for internal machining along bore. Adapters can be mounted on standard HAI boring bars for internal machining and
on HAR/L, HAPR/L holders for external machining
Boring, Face Grooving & Face Recessing Capacity
| Boring | Face Grooving | Face Recessing |
| B Min. =F+G+d/2 | D Min. =2F-B+2G+d | P Min. =2F-B-2W+2G+d |
| B | D | G(1) | P | G(1) | |
| min. | G(1) | min. | min. |
B B
(1) The minimum recommended value for clearance (G) is 0.5 mm
