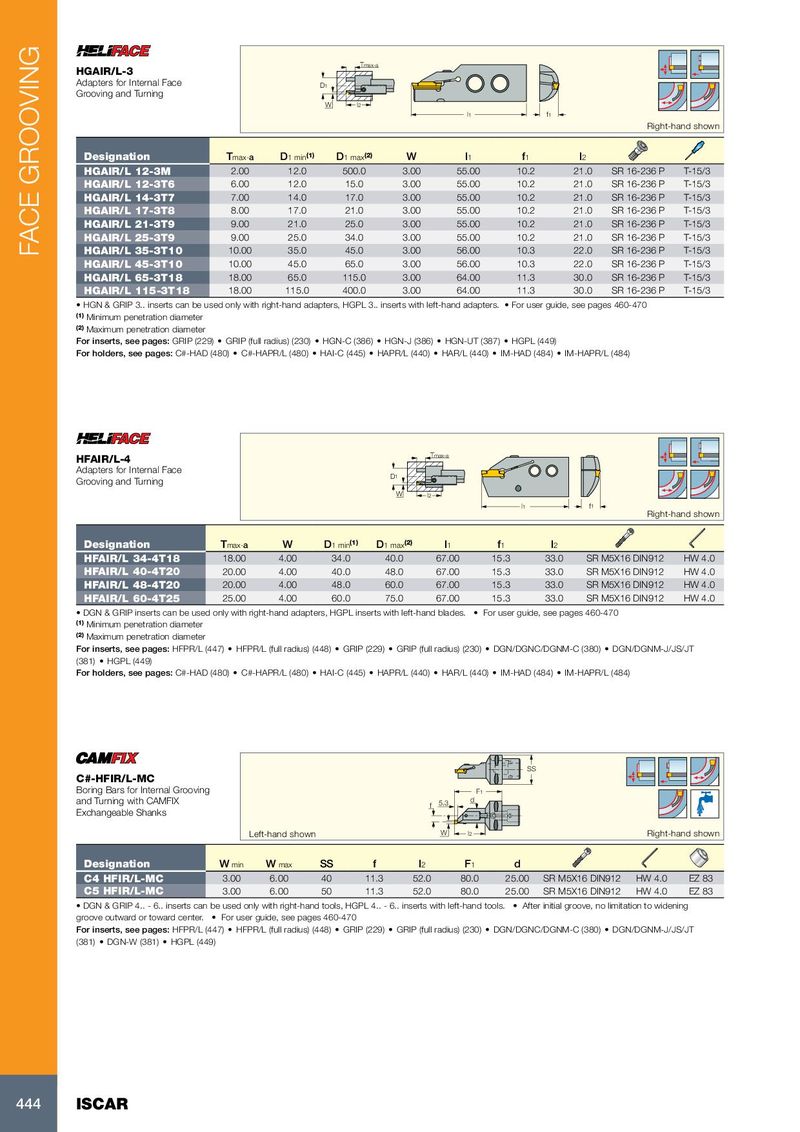

HGAIR/L-3 T max-a Adapters for Internal Face W l 2 l 1 f1 Right-hand shown
| Designation | T max-a | D1 min (1) | D1 max(2) | W | l1 | f1 | l2 | ||
| HGAIR/L 12-3M | 2.00 | 12.0 | 500.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 12-3T6 | 6.00 | 12.0 | 15.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 14-3T7 | 7.00 | 14.0 | 17.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 17-3T8 | 8.00 | 17.0 | 21.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 21-3T9 | 9.00 | 21.0 | 25.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 25-3T9 | 9.00 | 25.0 | 34.0 | 3.00 | 55.00 | 10.2 | 21.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 35-3T10 | 10.00 | 35.0 | 45.0 | 3.00 | 56.00 | 10.3 | 22.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 45-3T10 | 10.00 | 45.0 | 65.0 | 3.00 | 56.00 | 10.3 | 22.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 65-3T18 | 18.00 | 65.0 | 115.0 | 3.00 | 64.00 | 11.3 | 30.0 | SR 16-236 P | T-15/3 |
| HGAIR/L 115-3T18 | 18.00 | 115.0 | 400.0 | 3.00 | 64.00 | 11.3 | 30.0 | SR 16-236 P | T-15/3 |
- HGN & GRIP 3.. inserts can be used only with right-hand adapters, HGPL 3.. inserts with left-hand adapters.
- For user guide, see pages 460-470
(1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: GRIP (229) GRIP (full radius) (230) HGN-C (386) HGN-J (386) HGN-UT (387) HGPL (449) For holders, see pages: C#-HAD (480) C#-HAPR/L (480) HAI-C (445) HAPR/L (440) HAR/L (440) IM-HAD (484) IM-HAPR/L (484)
HFAIR/L-4 Tmax-a Adapters for Internal Face Grooving and Turning D 1 W l 2 l 1 f 1 Right-hand shown
| Designation | Tmax-a | W | D1 min (1) | D1 max(2) | l1 | f1 | l2 | ||
| HFAIR/L 34-4T18 | 18.00 | 4.00 | 34.0 | 40.0 | 67.00 | 15.3 | 33.0 | SR M5X16 DIN912 | HW 4.0 |
| HFAIR/L 40-4T20 | 20.00 | 4.00 | 40.0 | 48.0 | 67.00 | 15.3 | 33.0 | SR M5X16 DIN912 | HW 4.0 |
| HFAIR/L 48-4T20 | 20.00 | 4.00 | 48.0 | 60.0 | 67.00 | 15.3 | 33.0 | SR M5X16 DIN912 | HW 4.0 |
| HFAIR/L 60-4T25 | 25.00 | 4.00 | 60.0 | 75.0 | 67.00 | 15.3 | 33.0 | SR M5X16 DIN912 | HW 4.0 |
- DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades.
- For user guide, see pages 460-470
(1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) HGPL (449) For holders, see pages: C#-HAD (480) C#-HAPR/L (480) HAI-C (445) HAPR/L (440) HAR/L (440) IM-HAD (484) IM-HAPR/L (484)
SS
C#-HFIR/L-MC
Boring Bars for Internal Grooving F 1 and Turning with CAMFIX d f 5.3 Exchangeable Shanks
Left-hand shown W l 2 Right-hand shown
| Designation | W min | W max | SS | f | l2 | F1 | d | |||
| C4 HFIR/L-MC | 3.00 | 6.00 | 40 | 11.3 | 52.0 | 80.0 | 25.00 | SR M5X16 DIN912 | HW 4.0 | EZ 83 |
| C5 HFIR/L-MC | 3.00 | 6.00 | 50 | 11.3 | 52.0 | 80.0 | 25.00 | SR M5X16 DIN912 | HW 4.0 | EZ 83 |
- DGN & GRIP 4.. - 6.. inserts can be used only with right-hand tools, HGPL 4.. - 6.. inserts with left-hand tools.
- After initial groove, no limitation to widening
groove outward or toward center. For user guide, see pages 460-470 For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) DGN-W (381) HGPL (449)
