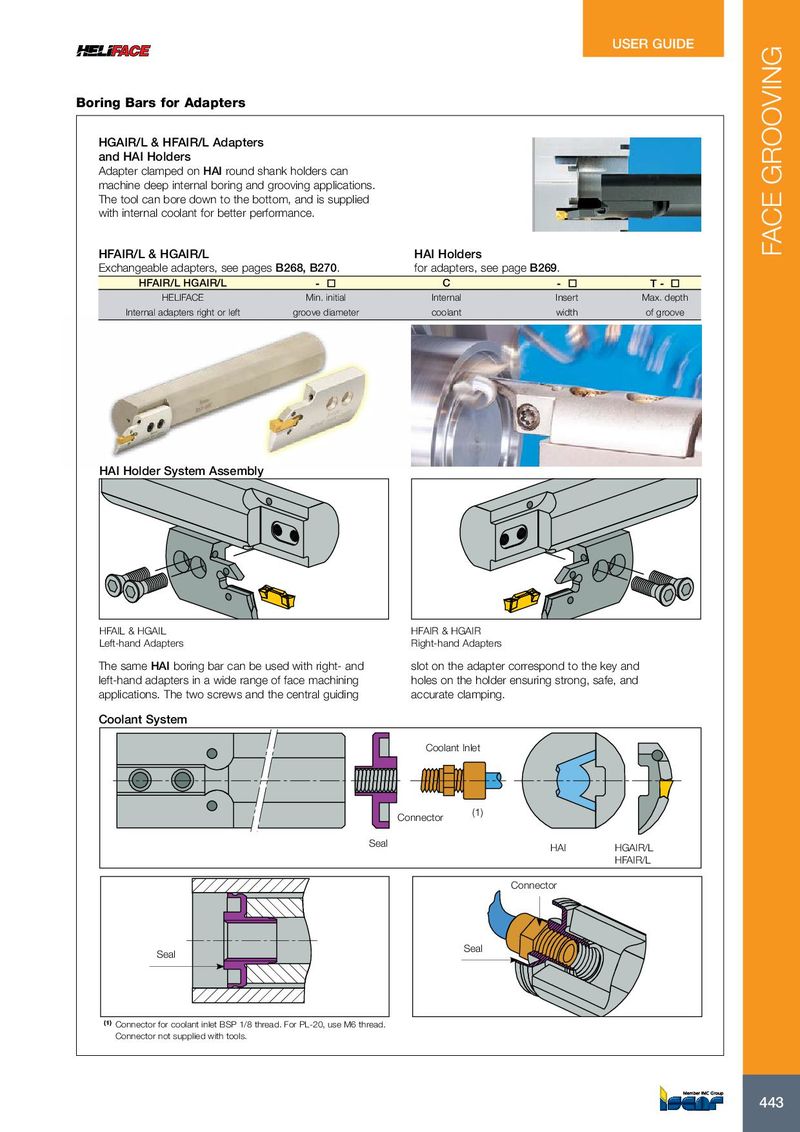

USER GUIDE


FACE GROOVING
Boring Bars for Adapters
HGAIR/L & HFAIR/L Adapters
and HAI Holders
Adapter clamped on HAI round shank holders can
machine deep internal boring and grooving applications.
The tool can bore down to the bottom, and is supplied
with internal coolant for better performance.

HFAIR/L & HGAIR/L HAI Holders
Exchangeable adapters, see pages B268, B270. for adapters, see page B269.
HFAIR/L HGAIR/L -  C -  T- 
HELIFACE Min. initial Internal Insert Max. depth
Internal adapters right or left groove diameter coolant width of groove


HAI Holder System Assembly


HFAIL & HGAIL HFAIR & HGAIR
Left-hand Adapters Right-hand Adapters
The same HAI boring bar can be used with right- and slot on the adapter correspond to the key and
left-hand adapters in a wide range of face machining holes on the holder ensuring strong, safe, and
applications. The two screws and the central guiding accurate clamping.
Coolant System
Coolant Inlet


(1)
Connector
Seal HAI HGAIR/L
HFAIR/L
Connector


Seal
Seal


(1) Connector for coolant inlet BSP 1/8 thread. For PL-20, use M6 thread.
Connector not supplied with tools.


443
