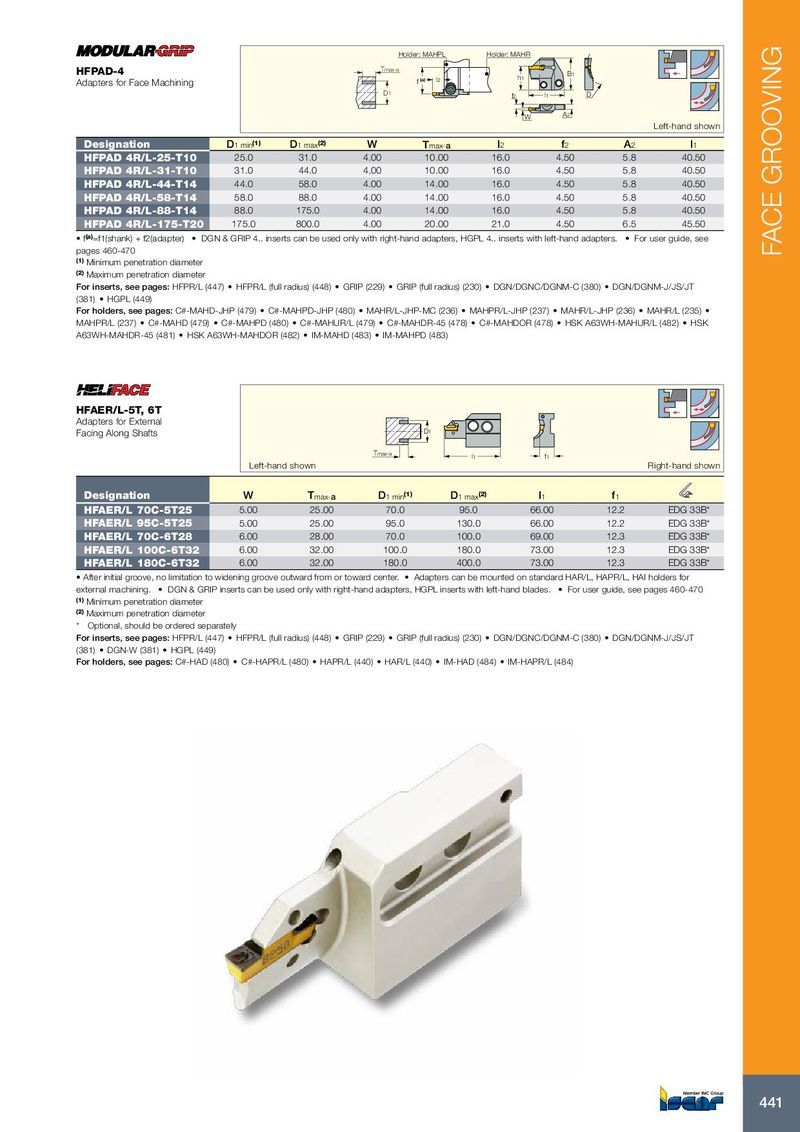

Holder: MAHPL Holder: MAHR HFPAD-4 Tmax-a
Adapters for Face Machining f l2 h 1
(a)
D1 f l D
2 1 W A2 Left-hand shown
| Designation | D1 min(1) | D1 max(2) | W | Tmax-a | l2 | f2 | A2 | l1 |
| HFPAD 4R/L-25-T10 | 25.0 | 31.0 | 4.00 | 10.00 | 16.0 | 4.50 | 5.8 | 40.50 |
| HFPAD 4R/L-31-T10 | 31.0 | 44.0 | 4.00 | 10.00 | 16.0 | 4.50 | 5.8 | 40.50 |
| HFPAD 4R/L-44-T14 | 44.0 | 58.0 | 4.00 | 14.00 | 16.0 | 4.50 | 5.8 | 40.50 |
| HFPAD 4R/L-58-T14 | 58.0 | 88.0 | 4.00 | 14.00 | 16.0 | 4.50 | 5.8 | 40.50 |
| HFPAD 4R/L-88-T14 | 88.0 | 175.0 | 4.00 | 14.00 | 16.0 | 4.50 | 5.8 | 40.50 |
| HFPAD 4R/L-175-T20 | 175.0 | 800.0 | 4.00 | 20.00 | 21.0 | 4.50 | 6.5 | 45.50 |
- f(a)=f1(shank) + f2(adapter)
- DGN & GRIP 4.. inserts can be used only with right-hand adapters, HGPL 4.. inserts with left-hand adapters.
- For user guide, see
pages 460-470 (1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) HGPL (449) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483)
HFAER/L-5T, 6T
Adapters for External Facing Along Shafts D1
Tmax-a l f
1 1 Left-hand shown Right-hand shown
| Designation | W | Tmax-a | D1 min(1) | D1 max(2) | l1 | f1 | |
| HFAER/L 70C-5T25 | 5.00 | 25.00 | 70.0 | 95.0 | 66.00 | 12.2 | EDG 33B* |
| HFAER/L 95C-5T25 | 5.00 | 25.00 | 95.0 | 130.0 | 66.00 | 12.2 | EDG 33B* |
| HFAER/L 70C-6T28 | 6.00 | 28.00 | 70.0 | 100.0 | 69.00 | 12.3 | EDG 33B* |
| HFAER/L 100C-6T32 | 6.00 | 32.00 | 100.0 | 180.0 | 73.00 | 12.3 | EDG 33B* |
| HFAER/L 180C-6T32 | 6.00 | 32.00 | 180.0 | 400.0 | 73.00 | 12.3 | EDG 33B* |
- After initial groove, no limitation to widening groove outward from or toward center.
- Adapters can be mounted on standard HAR/L, HAPR/L, HAI holders for
external machining. DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades. For user guide, see pages 460-470 (1) Minimum penetration diameter (2) Maximum penetration diameter * Optional, should be ordered separately For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) DGN-W (381) HGPL (449) For holders, see pages: C#-HAD (480) C#-HAPR/L (480) HAPR/L (440) HAR/L (440) IM-HAD (484) IM-HAPR/L (484)
