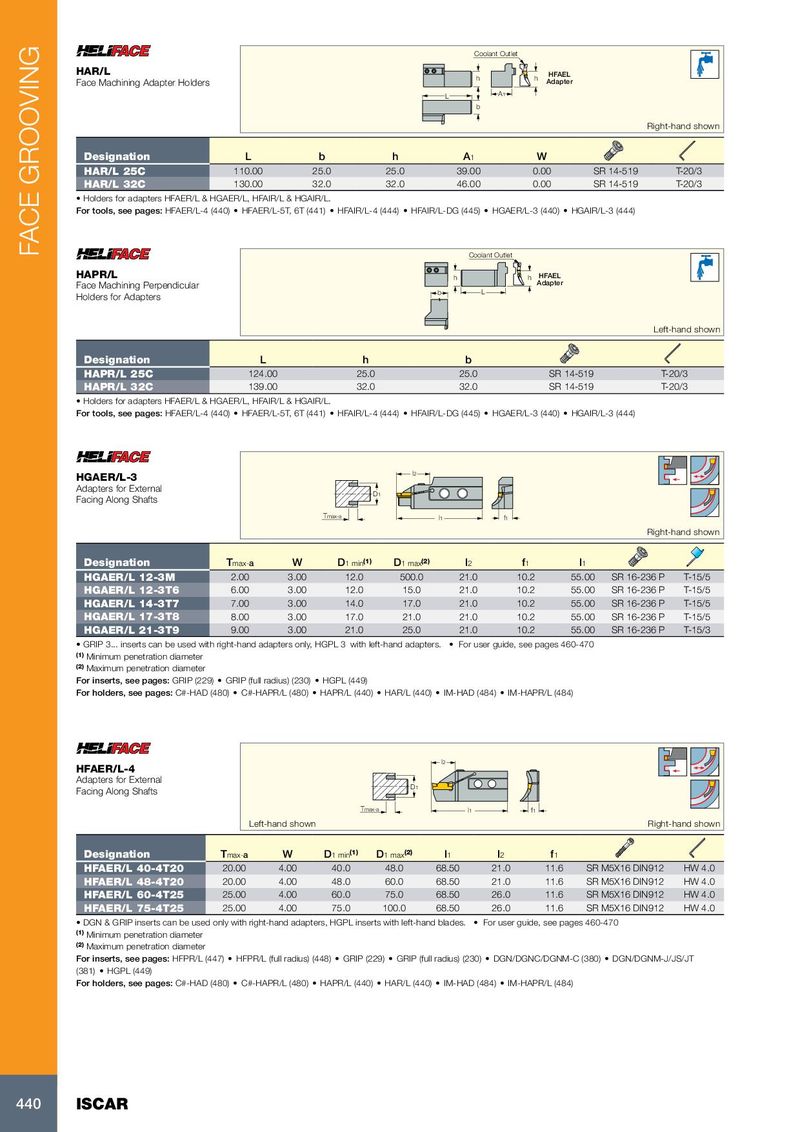

Coolant Outlet
HAR/L
h h HFAEL
Face Machining Adapter Holders Adapter L A1 b Right-hand shown
| Designation | L | b | h | A1 | W | |||
| HAR/L 25C | 110.00 | 25.0 | 25.0 | 39.00 | 0.00 | SR 14-519 | T-20/3 | |
| HAR/L 32C | 130.00 | 32.0 | 32.0 | 46.00 | 0.00 | SR 14-519 | T-20/3 |
- Holders for adapters HFAER/L & HGAER/L, HFAIR/L & HGAIR/L.
For tools, see pages: HFAER/L-4 (440) HFAER/L-5T, 6T (441) HFAIR/L-4 (444) HFAIR/L-DG (445) HGAER/L-3 (440) HGAIR/L-3 (444)
Coolant Outlet HAPR/L HFAEL h h Face Machining Perpendicular Adapter
Holders for Adapters b L
Left-hand shown
| Designation | L | h | b | |||
| HAPR/L 25C | 124.00 | 25.0 | 25.0 | SR 14-519 | T-20/3 | |
| HAPR/L 32C | 139.00 | 32.0 | 32.0 | SR 14-519 | T-20/3 |
- Holders for adapters HFAER/L & HGAER/L, HFAIR/L & HGAIR/L.
For tools, see pages: HFAER/L-4 (440) HFAER/L-5T, 6T (441) HFAIR/L-4 (444) HFAIR/L-DG (445) HGAER/L-3 (440) HGAIR/L-3 (444)
HGAER/L-3 l 2 Adapters for External Facing Along Shafts D 1
Tmax-a l f1
1 Right-hand shown
| Designation | T max-a | W | D1 min(1) | D1 max(2) | l2 | f1 | l1 | ||
| HGAER/L 12-3M | 2.00 | 3.00 | 12.0 | 500.0 | 21.0 | 10.2 | 55.00 | SR 16-236 P | T-15/5 |
| HGAER/L 12-3T6 | 6.00 | 3.00 | 12.0 | 15.0 | 21.0 | 10.2 | 55.00 | SR 16-236 P | T-15/5 |
| HGAER/L 14-3T7 | 7.00 | 3.00 | 14.0 | 17.0 | 21.0 | 10.2 | 55.00 | SR 16-236 P | T-15/5 |
| HGAER/L 17-3T8 | 8.00 | 3.00 | 17.0 | 21.0 | 21.0 | 10.2 | 55.00 | SR 16-236 P | T-15/5 |
| HGAER/L 21-3T9 | 9.00 | 3.00 | 21.0 | 25.0 | 21.0 | 10.2 | 55.00 | SR 16-236 P | T-15/3 |
- GRIP 3... inserts can be used with right-hand adapters only, HGPL 3 with left-hand adapters.
- For user guide, see pages 460-470
(1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: GRIP (229) GRIP (full radius) (230) HGPL (449) For holders, see pages: C#-HAD (480) C#-HAPR/L (480) HAPR/L (440) HAR/L (440) IM-HAD (484) IM-HAPR/L (484)
HFAER/L-4 l2 Adapters for External Facing Along Shafts D1
T max-a l f
1 1 Left-hand shown Right-hand shown
| Designation | Tmax-a | W | D1 min (1) | D1 max(2) | l1 | l2 | f1 | ||
| HFAER/L 40-4T20 | 20.00 | 4.00 | 40.0 | 48.0 | 68.50 | 21.0 | 11.6 | SR M5X16 DIN912 | HW 4.0 |
| HFAER/L 48-4T20 | 20.00 | 4.00 | 48.0 | 60.0 | 68.50 | 21.0 | 11.6 | SR M5X16 DIN912 | HW 4.0 |
| HFAER/L 60-4T25 | 25.00 | 4.00 | 60.0 | 75.0 | 68.50 | 26.0 | 11.6 | SR M5X16 DIN912 | HW 4.0 |
| HFAER/L 75-4T25 | 25.00 | 4.00 | 75.0 | 100.0 | 68.50 | 26.0 | 11.6 | SR M5X16 DIN912 | HW 4.0 |
- DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with left-hand blades.
- For user guide, see pages 460-470
(1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) HGPL (449) For holders, see pages: C#-HAD (480) C#-HAPR/L (480) HAPR/L (440) HAR/L (440) IM-HAD (484) IM-HAPR/L (484)
