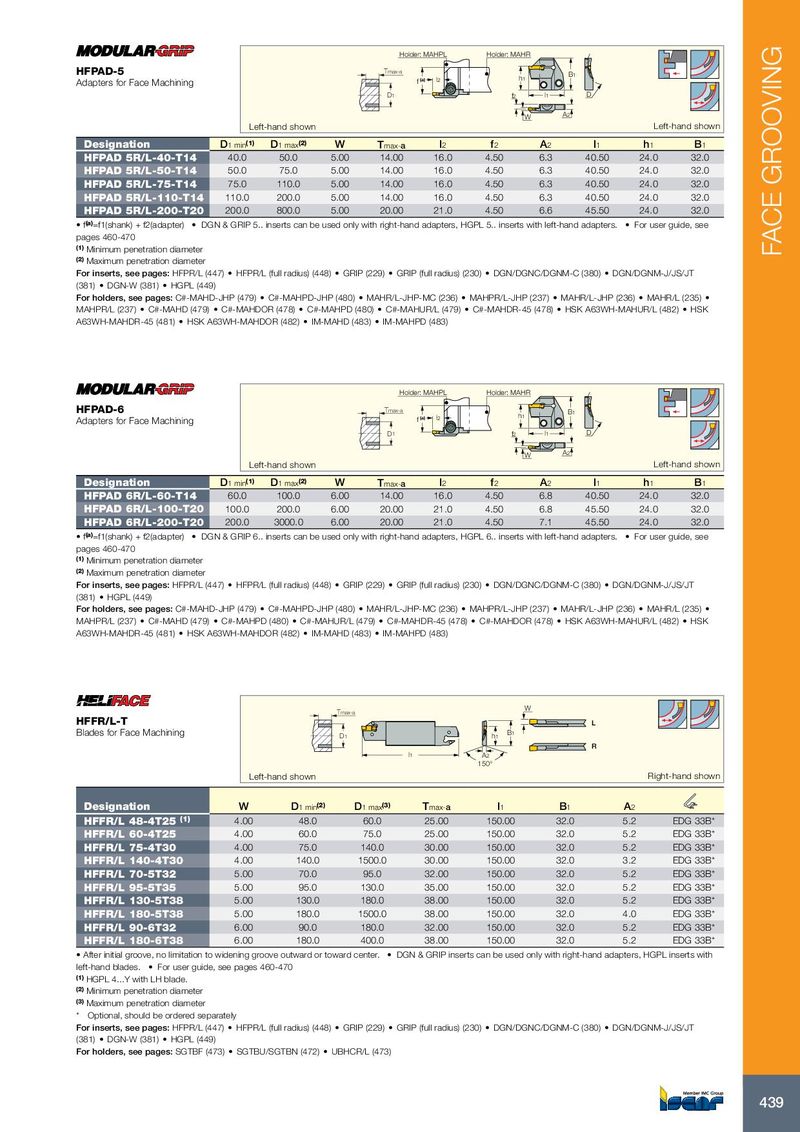

Holder: MAHPL Holder: MAHR HFPAD-5 T max-a B1
Adapters for Face Machining f l2 h1
(a)
D1 f2 l 1 D
W A2 Left-hand shown Left-hand shown
| Designation | D1 min (1) | D1 max(2) | W | T max-a | l2 | f2 | A2 | l1 | h1 | B1 |
| HFPAD 5R/L-40-T14 | 40.0 | 50.0 | 5.00 | 14.00 | 16.0 | 4.50 | 6.3 | 40.50 | 24.0 | 32.0 |
| HFPAD 5R/L-50-T14 | 50.0 | 75.0 | 5.00 | 14.00 | 16.0 | 4.50 | 6.3 | 40.50 | 24.0 | 32.0 |
| HFPAD 5R/L-75-T14 | 75.0 | 110.0 | 5.00 | 14.00 | 16.0 | 4.50 | 6.3 | 40.50 | 24.0 | 32.0 |
| HFPAD 5R/L-110-T14 | 110.0 | 200.0 | 5.00 | 14.00 | 16.0 | 4.50 | 6.3 | 40.50 | 24.0 | 32.0 |
| HFPAD 5R/L-200-T20 | 200.0 | 800.0 | 5.00 | 20.00 | 21.0 | 4.50 | 6.6 | 45.50 | 24.0 | 32.0 |
- f(a)=f1(shank) + f2(adapter)
- DGN & GRIP 5.. inserts can be used only with right-hand adapters, HGPL 5.. inserts with left-hand adapters.
- For user guide, see
pages 460-470 (1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) DGN-W (381) HGPL (449) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHDOR (478) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483)
Holder: MAHPL Holder: MAHR HFPAD-6 T max-a B1
Adapters for Face Machining f l h1
(a) 2
D 1 f2 l 1 D
W A2 Left-hand shown Left-hand shown
| Designation | D1 min (1) | D1 max(2) | W | T max-a | l2 | f2 | A2 | l1 | h1 | B1 |
| HFPAD 6R/L-60-T14 | 60.0 | 100.0 | 6.00 | 14.00 | 16.0 | 4.50 | 6.8 | 40.50 | 24.0 | 32.0 |
| HFPAD 6R/L-100-T20 | 100.0 | 200.0 | 6.00 | 20.00 | 21.0 | 4.50 | 6.8 | 45.50 | 24.0 | 32.0 |
| HFPAD 6R/L-200-T20 | 200.0 | 3000.0 | 6.00 | 20.00 | 21.0 | 4.50 | 7.1 | 45.50 | 24.0 | 32.0 |
- f(a)=f1(shank) + f2(adapter)
- DGN & GRIP 6.. inserts can be used only with right-hand adapters, HGPL 6.. inserts with left-hand adapters.
- For user guide, see
pages 460-470 (1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) HGPL (449) For holders, see pages: C#-MAHD-JHP (479) C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483)
T W HFFR/L-T max-a L Blades for Face Machining B
D1 h1 1
R l1 A2 150° Left-hand shown Right-hand shown
| Designation | W | D1 min (2) | D1 max(3) | Tmax-a | l1 | B 1 | A2 | |
| HFFR/L 48-4T25 (1) | 4.00 | 48.0 | 60.0 | 25.00 | 150.00 | 32.0 | 5.2 | EDG 33B* |
| HFFR/L 60-4T25 | 4.00 | 60.0 | 75.0 | 25.00 | 150.00 | 32.0 | 5.2 | EDG 33B* |
| HFFR/L 75-4T30 | 4.00 | 75.0 | 140.0 | 30.00 | 150.00 | 32.0 | 5.2 | EDG 33B* |
| HFFR/L 140-4T30 | 4.00 | 140.0 | 1500.0 | 30.00 | 150.00 | 32.0 | 3.2 | EDG 33B* |
| HFFR/L 70-5T32 | 5.00 | 70.0 | 95.0 | 32.00 | 150.00 | 32.0 | 5.2 | EDG 33B* |
| HFFR/L 95-5T35 | 5.00 | 95.0 | 130.0 | 35.00 | 150.00 | 32.0 | 5.2 | EDG 33B* |
| HFFR/L 130-5T38 | 5.00 | 130.0 | 180.0 | 38.00 | 150.00 | 32.0 | 5.2 | EDG 33B* |
| HFFR/L 180-5T38 | 5.00 | 180.0 | 1500.0 | 38.00 | 150.00 | 32.0 | 4.0 | EDG 33B* |
| HFFR/L 90-6T32 | 6.00 | 90.0 | 180.0 | 32.00 | 150.00 | 32.0 | 5.2 | EDG 33B* |
| HFFR/L 180-6T38 | 6.00 | 180.0 | 400.0 | 38.00 | 150.00 | 32.0 | 5.2 | EDG 33B* |
- After initial groove, no limitation to widening groove outward or toward center.
- DGN & GRIP inserts can be used only with right-hand adapters, HGPL inserts with
left-hand blades. For user guide, see pages 460-470 (1) HGPL 4...Y with LH blade. (2) Minimum penetration diameter (3) Maximum penetration diameter * Optional, should be ordered separately For inserts, see pages: HFPR/L (447) HFPR/L (full radius) (448) GRIP (229) GRIP (full radius) (230) DGN/DGNC/DGNM-C (380) DGN/DGNM-J/JS/JT (381) DGN-W (381) HGPL (449) For holders, see pages: SGTBF (473) SGTBU/SGTBN (472) UBHCR/L (473)
