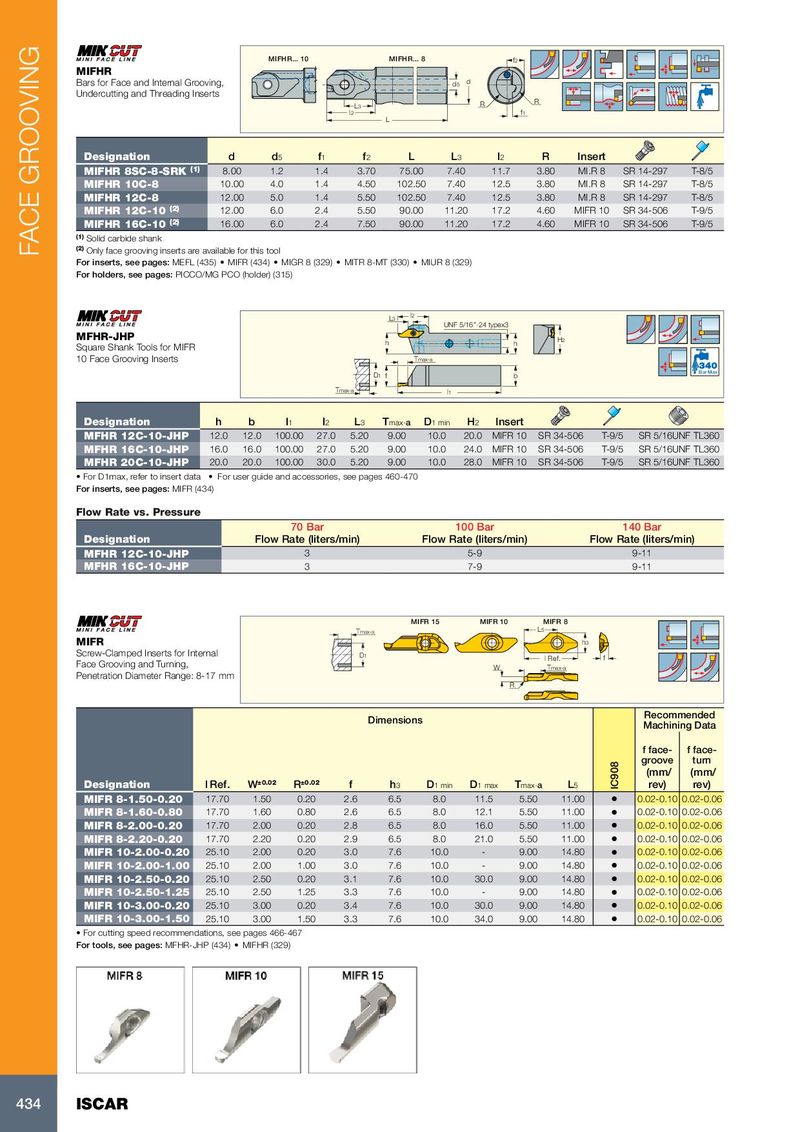

MIFHR... 10 MIFHR... 8 f2
MIFHR
Bars for Face and Internal Grooving, d d
Undercutting and Threading Inserts R R L3 l2 f1 L
| Designation | d | d5 | f1 | f2 | L | L3 | l2 | R | Insert | |||
| MIFHR 8SC-8-SRK (1) | 8.00 | 1.2 | 1.4 | 3.70 | 75.00 | 7.40 | 11.7 | 3.80 | MI.R 8 | SR 14-297 | T-8/5 | |
| MIFHR 10C-8 | 10.00 | 4.0 | 1.4 | 4.50 | 102.50 | 7.40 | 12.5 | 3.80 | MI.R 8 | SR 14-297 | T-8/5 | |
| MIFHR 12C-8 | 12.00 | 5.0 | 1.4 | 5.50 | 102.50 | 7.40 | 12.5 | 3.80 | MI.R 8 | SR 14-297 | T-8/5 | |
| MIFHR 12C-10 (2) | 12.00 | 6.0 | 2.4 | 5.50 | 90.00 | 11.20 | 17.2 | 4.60 | MIFR 10 | SR 34-506 | T-9/5 | |
| MIFHR 16C-10 (2) | 16.00 | 6.0 | 2.4 | 7.50 | 90.00 | 11.20 | 17.2 | 4.60 | MIFR 10 | SR 34-506 | T-9/5 |
(1) Solid carbide shank (2) Only face grooving inserts are available for this tool For inserts, see pages: MEFL (435) MIFR (434) MIGR 8 (329) MITR 8-MT (330) MIUR 8 (329) For holders, see pages: PICCO/MG PCO (holder) (315)
L l 2 3 UNF 5/16”-24 typex3
MFHR-JHP
h h H2
Square Shank Tools for MIFR 10 Face Grooving Inserts T max-a
D1 f b Bar Max
T max-a l 1
| Designation | h | b | l1 | l2 | L3 | Tmax-a | D1 min | H2 | Insert | |||
| MFHR 12C-10-JHP | 12.0 | 12.0 | 100.00 | 27.0 | 5.20 | 9.00 | 10.0 | 20.0 MIFR 10 | SR 34-506 | T-9/5 | SR 5/16UNF TL360 | |
| MFHR 16C-10-JHP | 16.0 | 16.0 | 100.00 | 27.0 | 5.20 | 9.00 | 10.0 | 24.0 MIFR 10 | SR 34-506 | T-9/5 | SR 5/16UNF TL360 | |
| MFHR 20C-10-JHP | 20.0 | 20.0 | 100.00 | 30.0 | 5.20 | 9.00 | 10.0 | 28.0 MIFR 10 | SR 34-506 | T-9/5 | SR 5/16UNF TL360 |
- For D1max, refer to insert data
- For user guide and accessories, see pages 460-470
For inserts, see pages: MIFR (434)
Flow Rate vs. Pressure
70 Bar 100 Bar 140 Bar
Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min)
| MFHR 12C-10-JHP | 3 | 5-9 | 9-11 |
| MFHR 16C-10-JHP | 3 | 7-9 | 9-11 |
MIFR 15 MIFR 10 MIFR 8
Tmax-a L5 MIFR h 3 Screw-Clamped Inserts for Internal D
1 l Ref. f
Face Grooving and Turning, W Tmax-a Penetration Diameter Range: 8-17 mm R Recommended Dimensions Machining Data f face- f facegroove turn
(mm/ (mm/
| Designation | l Ref. | W ±0.02 | R ±0.02 | f | h3 | D1 min | D1 max | Tmax-a | L5 | rev) rev) | |
| MIFR 8-1.50-0.20 | 17.70 | 1.50 | 0.20 | 2.6 | 6.5 | 8.0 | 11.5 | 5.50 | 11.00 | 0.02-0.10 0.02-0.06 | |
| MIFR 8-1.60-0.80 | 17.70 | 1.60 | 0.80 | 2.6 | 6.5 | 8.0 | 12.1 | 5.50 | 11.00 | 0.02-0.10 0.02-0.06 | |
| MIFR 8-2.00-0.20 | 17.70 | 2.00 | 0.20 | 2.8 | 6.5 | 8.0 | 16.0 | 5.50 | 11.00 | 0.02-0.10 0.02-0.06 | |
| MIFR 8-2.20-0.20 | 17.70 | 2.20 | 0.20 | 2.9 | 6.5 | 8.0 | 21.0 | 5.50 | 11.00 | 0.02-0.10 0.02-0.06 | |
| MIFR 10-2.00-0.20 | 25.10 | 2.00 | 0.20 | 3.0 | 7.6 | 10.0 | - | 9.00 | 14.80 | 0.02-0.10 0.02-0.06 | |
| MIFR 10-2.00-1.00 | 25.10 | 2.00 | 1.00 | 3.0 | 7.6 | 10.0 | - | 9.00 | 14.80 | 0.02-0.10 0.02-0.06 | |
| MIFR 10-2.50-0.20 | 25.10 | 2.50 | 0.20 | 3.1 | 7.6 | 10.0 | 30.0 | 9.00 | 14.80 | 0.02-0.10 0.02-0.06 | |
| MIFR 10-2.50-1.25 | 25.10 | 2.50 | 1.25 | 3.3 | 7.6 | 10.0 | - | 9.00 | 14.80 | 0.02-0.10 0.02-0.06 | |
| MIFR 10-3.00-0.20 | 25.10 | 3.00 | 0.20 | 3.4 | 7.6 | 10.0 | 30.0 | 9.00 | 14.80 | 0.02-0.10 0.02-0.06 | |
| MIFR 10-3.00-1.50 | 25.10 | 3.00 | 1.50 | 3.3 | 7.6 | 10.0 | 34.0 | 9.00 | 14.80 | 0.02-0.10 0.02-0.06 |
- For cutting speed recommendations, see pages 466-467
For tools, see pages: MFHR-JHP (434) MIFHR (329)
