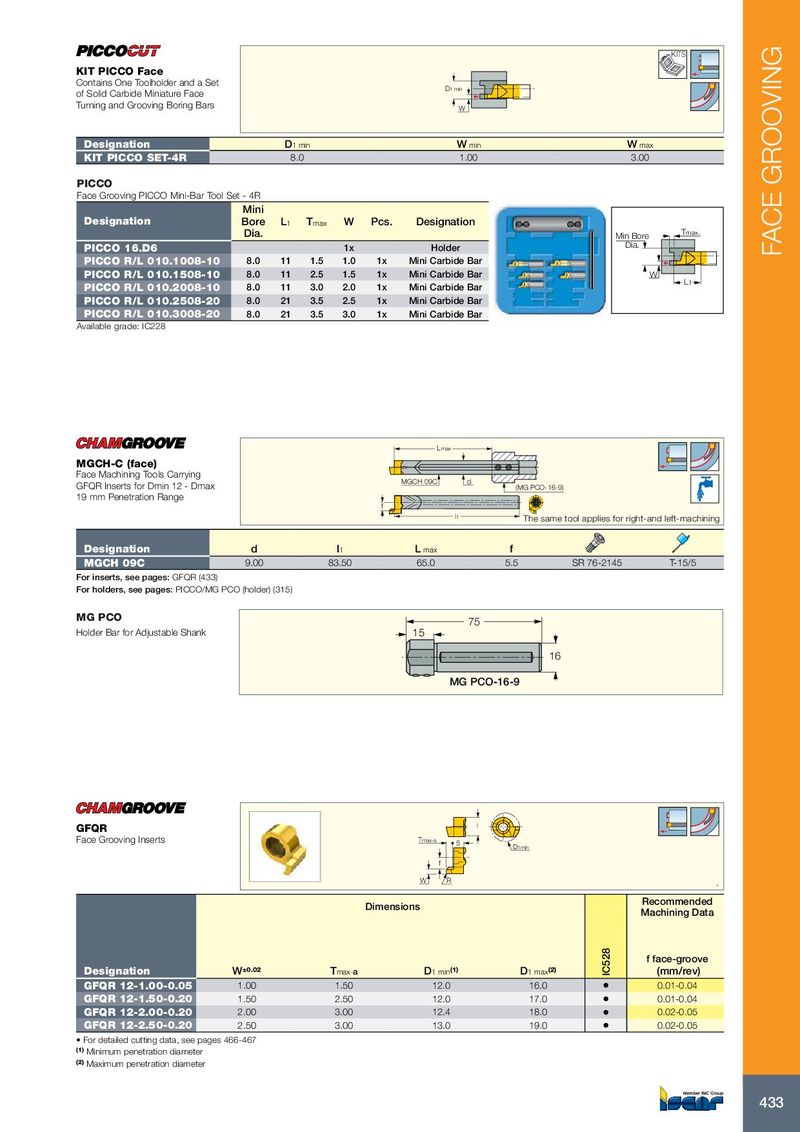

FACE GROOVING
KITS
KIT PICCO Face
Contains One Toolholder and a Set
D1 min
of Solid Carbide Miniature Face
Turning and Grooving Boring Bars W


Designation D1 min W min W max
KIT PICCO SET-4R 8.0 1.00 3.00
PICCO
Face Grooving PICCO Mini-Bar Tool Set - 4R
Mini
Designation Bore L1 Tmax W Pcs. Designation
Dia. Tmax.
Min Bore
PICCO 16.D6 1x Holder Dia.
PICCO R/L 010.1008-10 8.0 11 1.5 1.0 1x Mini Carbide Bar
PICCO R/L 010.1508-10 8.0 11 2.5 1.5 1x Mini Carbide Bar W
L1
PICCO R/L 010.2008-10 8.0 11 3.0 2.0 1x Mini Carbide Bar
PICCO R/L 010.2508-20 8.0 21 3.5 2.5 1x Mini Carbide Bar
PICCO R/L 010.3008-20 8.0 21 3.5 3.0 1x Mini Carbide Bar
Available grade: IC228


L max
MGCH-C (face)
Face Machining Tools Carrying
MGCH 09C d
GFQR Inserts for Dmin 12 - Dmax (MG PCO-16-9)
19 mm Penetration Range
f
l1 The same tool applies for right-and left-machining

Designation d l1 L max f
MGCH 09C 9.00 83.50 65.0 5.5 SR 76-2145 T-15/5
For inserts, see pages: GFQR (433)
For holders, see pages: PICCO/MG PCO (holder) (315)

MG PCO 75
Holder Bar for Adjustable Shank 15
16
MG PCO-16-9


l
GFQR
Face Grooving Inserts Tmax-a 5
D1min
f
W R .
Recommended
Dimensions
Machining Data
IC528


f face-groove
Designation W±0.02 Tmax-a D1 min(1) D1 max(2) (mm/rev)
GFQR 12-1.00-0.05 1.00 1.50 12.0 16.0 • 0.01-0.04
GFQR 12-1.50-0.20 1.50 2.50 12.0 17.0 • 0.01-0.04
GFQR 12-2.00-0.20 2.00 3.00 12.4 18.0 • 0.02-0.05
GFQR 12-2.50-0.20 2.50 3.00 13.0 19.0 • 0.02-0.05
• For detailed cutting data, see pages 466-467
(1) Minimum penetration diameter
(2) Maximum penetration diameter


433
