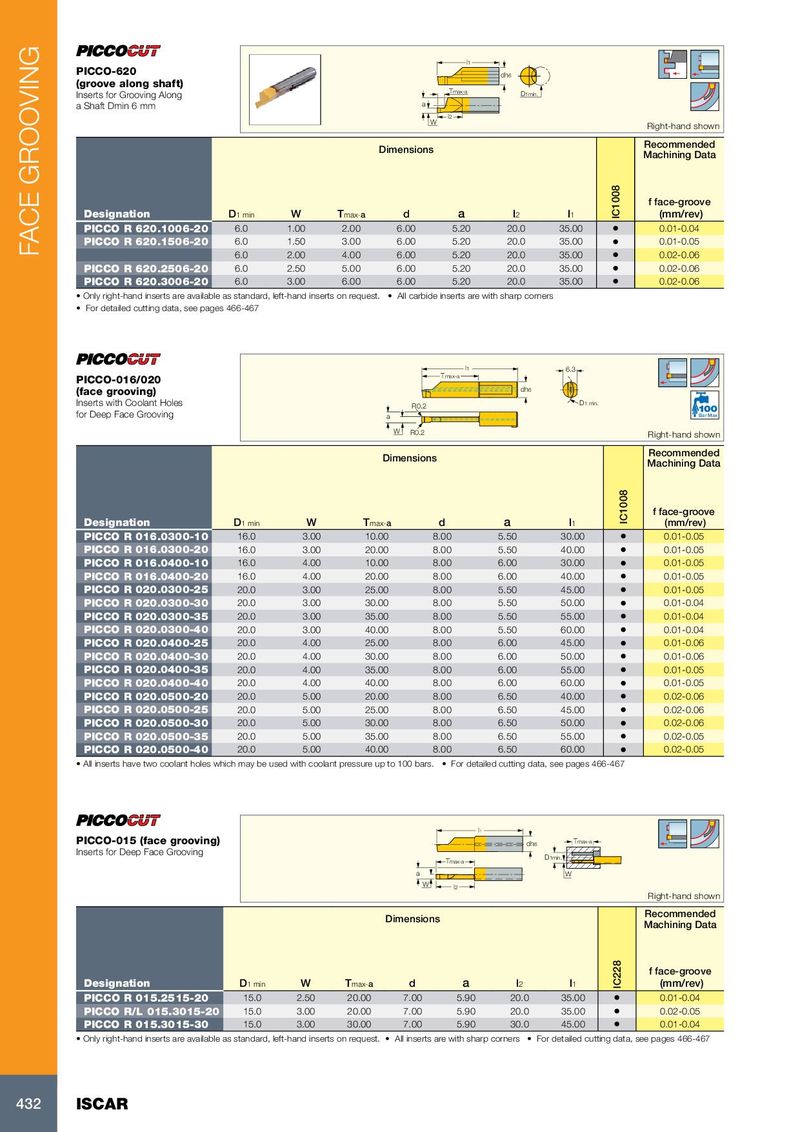

PICCO-620
(groove along shaft)
Inserts for Grooving Along T max-a a Shaft Dmin 6 mm a l2 W Dimensions
D 1min.
Right-hand shown Recommended Machining Data
f face-groove
| Designation | D1 min | W | Tmax-a | d | a | l2 | l1 | (mm/rev) | |
| PICCO R 620.1006-20 | 6.0 | 1.00 | 2.00 | 6.00 | 5.20 | 20.0 | 35.00 | 0.01-0.04 | |
| PICCO R 620.1506-20 | 6.0 | 1.50 | 3.00 | 6.00 | 5.20 | 20.0 | 35.00 | 0.01-0.05 | |
| 6.0 | 2.00 | 4.00 | 6.00 | 5.20 | 20.0 | 35.00 | 0.02-0.06 | ||
| PICCO R 620.2506-20 | 6.0 | 2.50 | 5.00 | 6.00 | 5.20 | 20.0 | 35.00 | 0.02-0.06 | |
| PICCO R 620.3006-20 | 6.0 | 3.00 | 6.00 | 6.00 | 5.20 | 20.0 | 35.00 | 0.02-0.06 |
- Only right-hand inserts are available as standard, left-hand inserts on request.
- All carbide inserts are with sharp corners
- For detailed cutting data, see pages 466-467
l 1 6.3 PICCO-016/020 Tmax-a (face grooving) dh6 Inserts with Coolant Holes D1 min. R0.2 for Deep Face Grooving a Bar Max
W R0.2 Right-hand shown
Recommended Dimensions Machining Data
f face-groove
| Designation | D1 min | W | Tmax-a | d | a | l1 | (mm/rev) | |
| PICCO R 016.0300-10 | 16.0 | 3.00 | 10.00 | 8.00 | 5.50 | 30.00 | 0.01-0.05 | |
| PICCO R 016.0300-20 | 16.0 | 3.00 | 20.00 | 8.00 | 5.50 | 40.00 | 0.01-0.05 | |
| PICCO R 016.0400-10 | 16.0 | 4.00 | 10.00 | 8.00 | 6.00 | 30.00 | 0.01-0.05 | |
| PICCO R 016.0400-20 | 16.0 | 4.00 | 20.00 | 8.00 | 6.00 | 40.00 | 0.01-0.05 | |
| PICCO R 020.0300-25 | 20.0 | 3.00 | 25.00 | 8.00 | 5.50 | 45.00 | 0.01-0.05 | |
| PICCO R 020.0300-30 | 20.0 | 3.00 | 30.00 | 8.00 | 5.50 | 50.00 | 0.01-0.04 | |
| PICCO R 020.0300-35 | 20.0 | 3.00 | 35.00 | 8.00 | 5.50 | 55.00 | 0.01-0.04 | |
| PICCO R 020.0300-40 | 20.0 | 3.00 | 40.00 | 8.00 | 5.50 | 60.00 | 0.01-0.04 | |
| PICCO R 020.0400-25 | 20.0 | 4.00 | 25.00 | 8.00 | 6.00 | 45.00 | 0.01-0.06 | |
| PICCO R 020.0400-30 | 20.0 | 4.00 | 30.00 | 8.00 | 6.00 | 50.00 | 0.01-0.06 | |
| PICCO R 020.0400-35 | 20.0 | 4.00 | 35.00 | 8.00 | 6.00 | 55.00 | 0.01-0.05 | |
| PICCO R 020.0400-40 | 20.0 | 4.00 | 40.00 | 8.00 | 6.00 | 60.00 | 0.01-0.05 | |
| PICCO R 020.0500-20 | 20.0 | 5.00 | 20.00 | 8.00 | 6.50 | 40.00 | 0.02-0.06 | |
| PICCO R 020.0500-25 | 20.0 | 5.00 | 25.00 | 8.00 | 6.50 | 45.00 | 0.02-0.06 | |
| PICCO R 020.0500-30 | 20.0 | 5.00 | 30.00 | 8.00 | 6.50 | 50.00 | 0.02-0.06 | |
| PICCO R 020.0500-35 | 20.0 | 5.00 | 35.00 | 8.00 | 6.50 | 55.00 | 0.02-0.05 | |
| PICCO R 020.0500-40 | 20.0 | 5.00 | 40.00 | 8.00 | 6.50 | 60.00 | 0.02-0.05 |
- All inserts have two coolant holes which may be used with coolant pressure up to 100 bars.
- For detailed cutting data, see pages 466-467
PICCO-015 (face grooving)
Inserts for Deep Face Grooving T max-a a W l 2
Dimensions
l1
T dh6 max-a D1min. W
Right-hand shown Recommended Machining Data
f face-groove
| Designation | D | W | T | a | d | a | l | l | (mm/rev) | |
| 1 min | max- | 2 | 1 | |||||||
| PICCO R 015.2515-20 | 15.0 | 2.50 | 20.00 | 7.00 | 5.90 | 20.0 | 35.00 | 0.01-0.04 | ||
| PICCO R/L 015.3015-20 | 15.0 | 3.00 | 20.00 | 7.00 | 5.90 | 20.0 | 35.00 | 0.02-0.05 | ||
| PICCO R 015.3015-30 | 15.0 | 3.00 | 30.00 | 7.00 | 5.90 | 30.0 | 45.00 | 0.01-0.04 |
- Only right-hand inserts are available as standard, left-hand inserts on request.
- All inserts are with sharp corners
- For detailed cutting data, see pages 466-467
