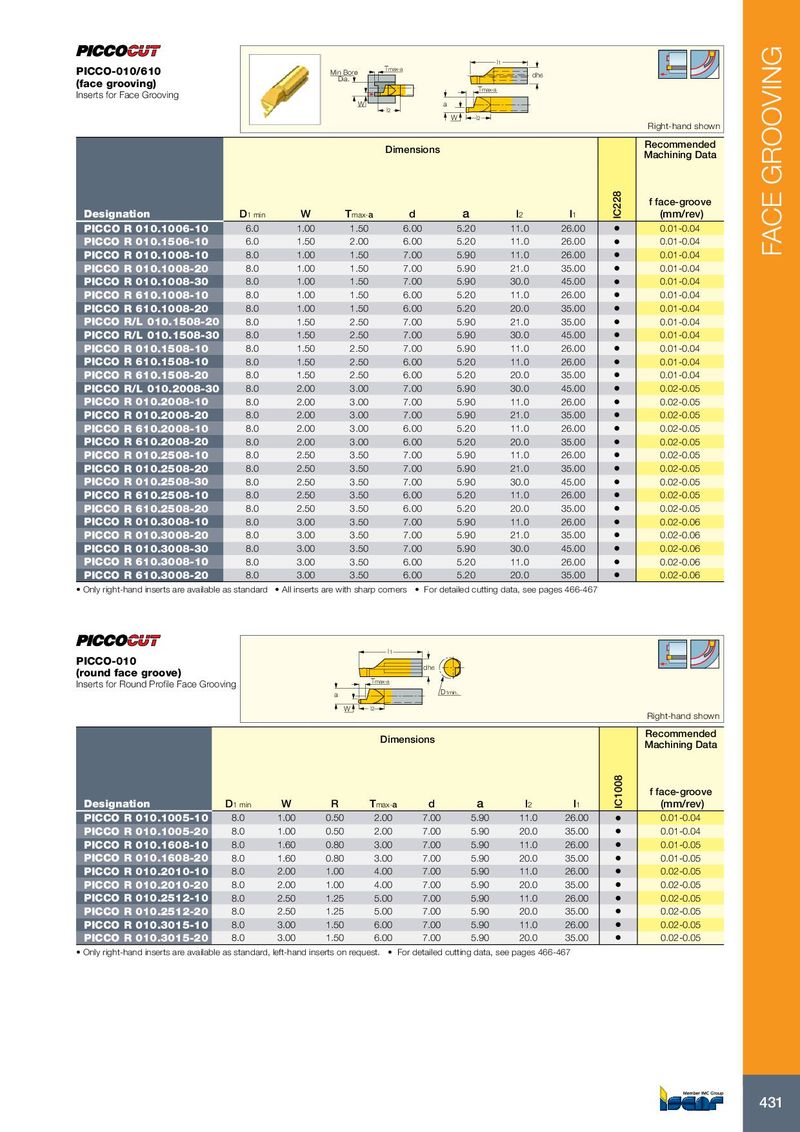

PICCO-010/610 Min Bore Tmax-a
Dia.
(face grooving)
Inserts for Face Grooving Tmax-a W a l2 W l2
Dimensions
dh6
Right-hand shown Recommended Machining Data
f face-groove
| Designation | D1 min | W | Tmax-a | d | a | l2 | l1 | (mm/rev) | |
| PICCO R 010.1006-10 | 6.0 | 1.00 | 1.50 | 6.00 | 5.20 | 11.0 | 26.00 | 0.01-0.04 | |
| PICCO R 010.1506-10 | 6.0 | 1.50 | 2.00 | 6.00 | 5.20 | 11.0 | 26.00 | 0.01-0.04 | |
| PICCO R 010.1008-10 | 8.0 | 1.00 | 1.50 | 7.00 | 5.90 | 11.0 | 26.00 | 0.01-0.04 | |
| PICCO R 010.1008-20 | 8.0 | 1.00 | 1.50 | 7.00 | 5.90 | 21.0 | 35.00 | 0.01-0.04 | |
| PICCO R 010.1008-30 | 8.0 | 1.00 | 1.50 | 7.00 | 5.90 | 30.0 | 45.00 | 0.01-0.04 | |
| PICCO R 610.1008-10 | 8.0 | 1.00 | 1.50 | 6.00 | 5.20 | 11.0 | 26.00 | 0.01-0.04 | |
| PICCO R 610.1008-20 | 8.0 | 1.00 | 1.50 | 6.00 | 5.20 | 20.0 | 35.00 | 0.01-0.04 | |
| PICCO R/L 010.1508-20 | 8.0 | 1.50 | 2.50 | 7.00 | 5.90 | 21.0 | 35.00 | 0.01-0.04 | |
| PICCO R/L 010.1508-30 | 8.0 | 1.50 | 2.50 | 7.00 | 5.90 | 30.0 | 45.00 | 0.01-0.04 | |
| PICCO R 010.1508-10 | 8.0 | 1.50 | 2.50 | 7.00 | 5.90 | 11.0 | 26.00 | 0.01-0.04 | |
| PICCO R 610.1508-10 | 8.0 | 1.50 | 2.50 | 6.00 | 5.20 | 11.0 | 26.00 | 0.01-0.04 | |
| PICCO R 610.1508-20 | 8.0 | 1.50 | 2.50 | 6.00 | 5.20 | 20.0 | 35.00 | 0.01-0.04 | |
| PICCO R/L 010.2008-30 | 8.0 | 2.00 | 3.00 | 7.00 | 5.90 | 30.0 | 45.00 | 0.02-0.05 | |
| PICCO R 010.2008-10 | 8.0 | 2.00 | 3.00 | 7.00 | 5.90 | 11.0 | 26.00 | 0.02-0.05 | |
| PICCO R 010.2008-20 | 8.0 | 2.00 | 3.00 | 7.00 | 5.90 | 21.0 | 35.00 | 0.02-0.05 | |
| PICCO R 610.2008-10 | 8.0 | 2.00 | 3.00 | 6.00 | 5.20 | 11.0 | 26.00 | 0.02-0.05 | |
| PICCO R 610.2008-20 | 8.0 | 2.00 | 3.00 | 6.00 | 5.20 | 20.0 | 35.00 | 0.02-0.05 | |
| PICCO R 010.2508-10 | 8.0 | 2.50 | 3.50 | 7.00 | 5.90 | 11.0 | 26.00 | 0.02-0.05 | |
| PICCO R 010.2508-20 | 8.0 | 2.50 | 3.50 | 7.00 | 5.90 | 21.0 | 35.00 | 0.02-0.05 | |
| PICCO R 010.2508-30 | 8.0 | 2.50 | 3.50 | 7.00 | 5.90 | 30.0 | 45.00 | 0.02-0.05 | |
| PICCO R 610.2508-10 | 8.0 | 2.50 | 3.50 | 6.00 | 5.20 | 11.0 | 26.00 | 0.02-0.05 | |
| PICCO R 610.2508-20 | 8.0 | 2.50 | 3.50 | 6.00 | 5.20 | 20.0 | 35.00 | 0.02-0.05 | |
| PICCO R 010.3008-10 | 8.0 | 3.00 | 3.50 | 7.00 | 5.90 | 11.0 | 26.00 | 0.02-0.06 | |
| PICCO R 010.3008-20 | 8.0 | 3.00 | 3.50 | 7.00 | 5.90 | 21.0 | 35.00 | 0.02-0.06 | |
| PICCO R 010.3008-30 | 8.0 | 3.00 | 3.50 | 7.00 | 5.90 | 30.0 | 45.00 | 0.02-0.06 | |
| PICCO R 610.3008-10 | 8.0 | 3.00 | 3.50 | 6.00 | 5.20 | 11.0 | 26.00 | 0.02-0.06 | |
| PICCO R 610.3008-20 | 8.0 | 3.00 | 3.50 | 6.00 | 5.20 | 20.0 | 35.00 | 0.02-0.06 |
- Only right-hand inserts are available as standard
- All inserts are with sharp corners
- For detailed cutting data, see pages 466-467
l 1
PICCO-010
(round face groove) dh6 Inserts for Round Profile Face Grooving Tmax-a a D1min. W l2
Dimensions
Right-hand shown Recommended Machining Data
f face-groove
| Designation | D | W | R | T | a d | a | l | l | (mm/rev) | |
| 1 min | max- | 2 | 1 | |||||||
| PICCO R 010.1005-10 | 8.0 | 1.00 | 0.50 | 2.00 | 7.00 | 5.90 | 11.0 | 26.00 | 0.01-0.04 | |
| PICCO R 010.1005-20 | 8.0 | 1.00 | 0.50 | 2.00 | 7.00 | 5.90 | 20.0 | 35.00 | 0.01-0.04 | |
| PICCO R 010.1608-10 | 8.0 | 1.60 | 0.80 | 3.00 | 7.00 | 5.90 | 11.0 | 26.00 | 0.01-0.05 | |
| PICCO R 010.1608-20 | 8.0 | 1.60 | 0.80 | 3.00 | 7.00 | 5.90 | 20.0 | 35.00 | 0.01-0.05 | |
| PICCO R 010.2010-10 | 8.0 | 2.00 | 1.00 | 4.00 | 7.00 | 5.90 | 11.0 | 26.00 | 0.02-0.05 | |
| PICCO R 010.2010-20 | 8.0 | 2.00 | 1.00 | 4.00 | 7.00 | 5.90 | 20.0 | 35.00 | 0.02-0.05 | |
| PICCO R 010.2512-10 | 8.0 | 2.50 | 1.25 | 5.00 | 7.00 | 5.90 | 11.0 | 26.00 | 0.02-0.05 | |
| PICCO R 010.2512-20 | 8.0 | 2.50 | 1.25 | 5.00 | 7.00 | 5.90 | 20.0 | 35.00 | 0.02-0.05 | |
| PICCO R 010.3015-10 | 8.0 | 3.00 | 1.50 | 6.00 | 7.00 | 5.90 | 11.0 | 26.00 | 0.02-0.05 | |
| PICCO R 010.3015-20 | 8.0 | 3.00 | 1.50 | 6.00 | 7.00 | 5.90 | 20.0 | 35.00 | 0.02-0.05 |
- Only right-hand inserts are available as standard, left-hand inserts on request.
- For detailed cutting data, see pages 466-467
