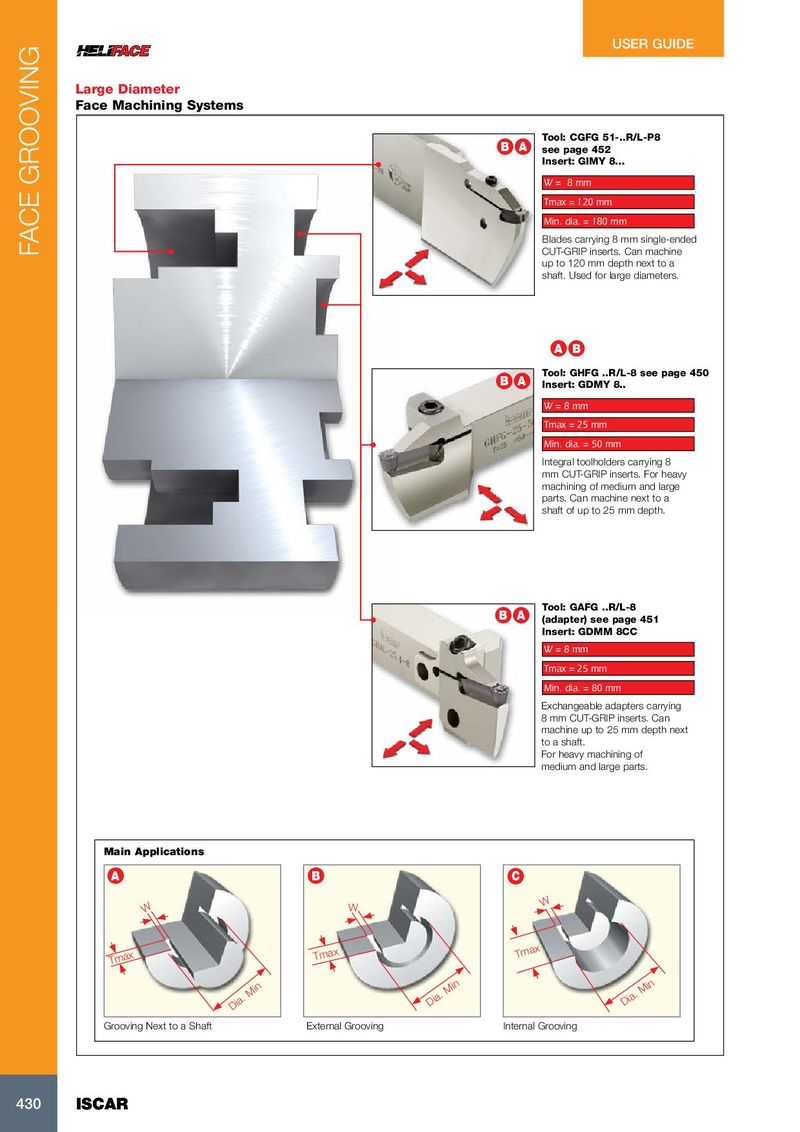

USER GUIDE
FACE GROOVING
Large Diameter
Face Machining Systems
Tool: CGFG 51-..R/L-P8
B A see page 452
Insert: GIMY 8…
W = 8 mm
Tmax = 120 mm
Min. dia. = 180 mm
Blades carrying 8 mm single-ended
CUT-GRIP inserts. Can machine
up to 120 mm depth next to a
shaft. Used for large diameters.


A B
Tool: GHFG ..R/L-8 see page 450
B A Insert: GDMY 8..
W = 8 mm
Tmax = 25 mm
Min. dia. = 50 mm
Integral toolholders carrying 8
mm CUT-GRIP inserts. For heavy
machining of medium and large
parts. Can machine next to a
shaft of up to 25 mm depth.


Tool: GAFG ..R/L-8
B A (adapter) see page 451
Insert: GDMM 8CC
W = 8 mm
Tmax = 25 mm
Min. dia. = 80 mm
Exchangeable adapters carrying
8 mm CUT-GRIP inserts. Can
machine up to 25 mm depth next
to a shaft.
For heavy machining of
medium and large parts.


Main Applications
A B C
W W
W

x
Tmax Tma
Tmax
n n
M
in
. Mi . Mi
Dia. Dia Dia
Grooving Next to a Shaft External Grooving Internal Grooving
