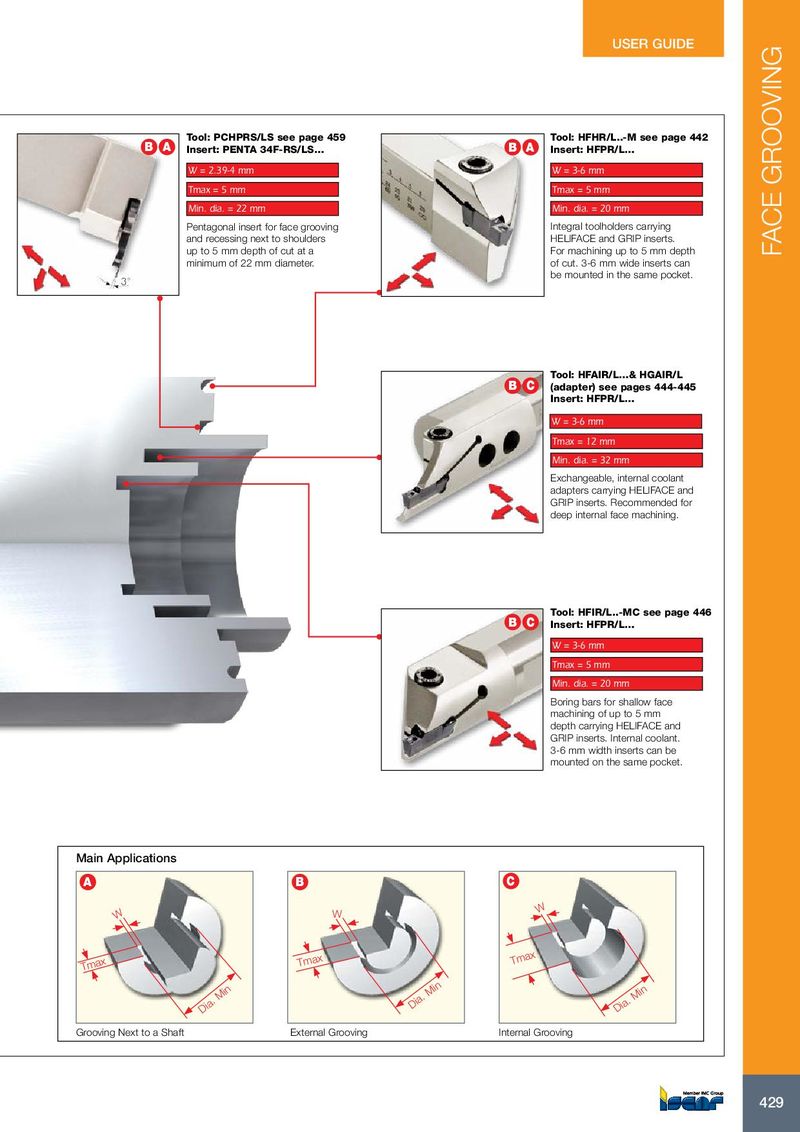

USER GUIDE Tool: PCHPRS/LS see page 459 Tool: HFHR/L..-M see page 442 B A Insert: PENTA 34F-RS/LS… B A Insert: HFPR/L… W = 2.39-4 mm W = 3-6 mm Tmax = 5 mm Tmax = 5 mm Min. dia. = 22 mm Min. dia. = 20 mm Pentagonal insert for face grooving Integral toolholders carrying and recessing next to shoulders HELIFACE and GRIP inserts. up to 5 mm depth of cut at a For machining up to 5 mm depth FACE GROOVING minimum of 22 mm diameter. of cut. 3-6 mm wide inserts can be mounted in the same pocket. Tool: HFAIR/L…& HGAIR/L B C (adapter) see pages 444-445 Insert: HFPR/L… W = 3-6 mm Tmax = 12 mm Min. dia. = 32 mm Exchangeable, internal coolant adapters carrying HELIFACE and GRIP inserts. Recommended for deep internal face machining. Tool: HFIR/L..-MC see page 446 B C Insert: HFPR/L… W = 3-6 mm Tmax = 5 mm Min. dia. = 20 mm Boring bars for shallow face machining of up to 5 mm depth carrying HELIFACE and GRIP inserts. Internal coolant. 3-6 mm width inserts can be mounted on the same pocket. Tool: TNFFA see page 455 Insert: TNF 3-6C… Main Applications A B C W W W Tmax Tmax Tmax Dia. Min Dia. Min Dia. Min Grooving Next to a Shaft External Grooving Internal Grooving 429 429
