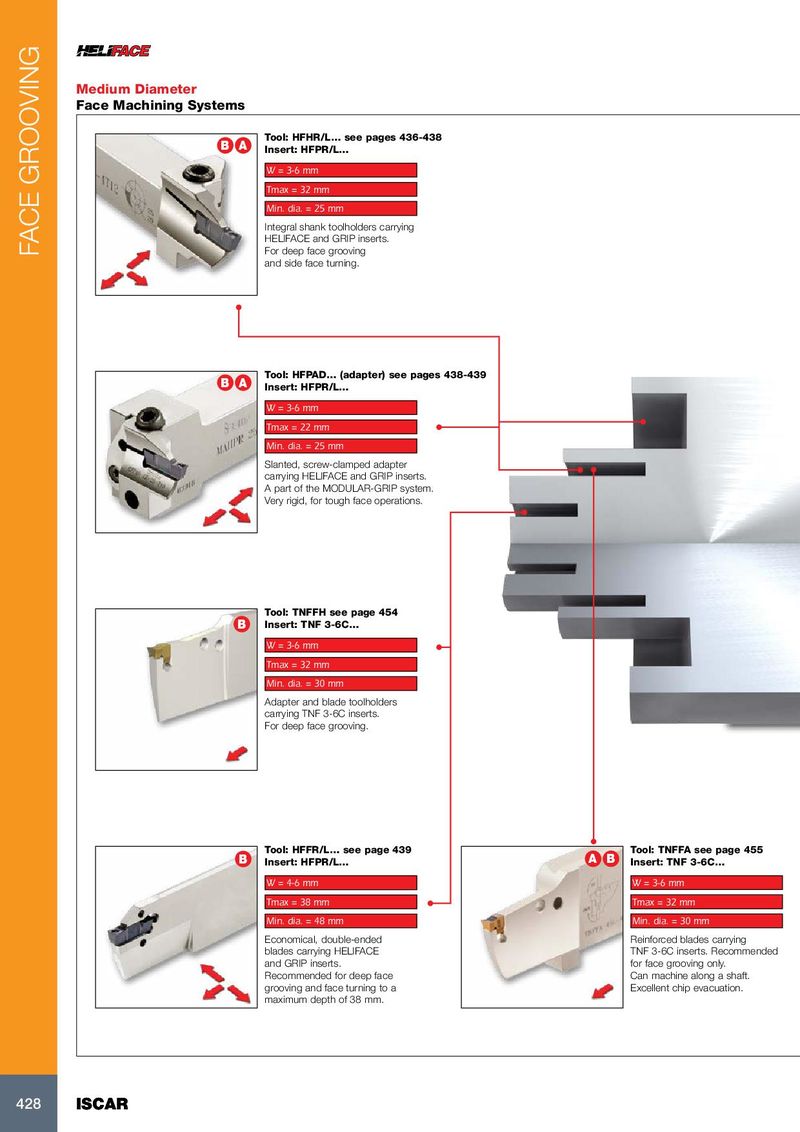

Medium Diameter Face Machining Systems Tool: HFHR/L… see pages 436-438 B A Insert: HFPR/L… W = 3-6 mm Tmax = 32 mm Min. dia. = 25 mm Integral shank toolholders carrying HELIFACE and GRIP inserts. FACE GROOVING For deep face grooving and side face turning. Tool: HFPAD… (adapter) see pages 438-439 B A Insert: HFPR/L… W = 3-6 mm Tmax = 22 mm Min. dia. = 25 mm Slanted, screw-clamped adapter carrying HELIFACE and GRIP inserts. A part of the MODULAR-GRIP system. Very rigid, for tough face operations. Tool: TNFFH see page 454 B Insert: TNF 3-6C… W = 3-6 mm Tmax = 32 mm Min. dia. = 30 mm Adapter and blade toolholders carrying TNF 3-6C inserts. For deep face grooving. Tool: HFFR/L… see page 439 Tool: TNFFA see page 455 B Insert: HFPR/L… A B Insert: TNF 3-6C… W = 4-6 mm W = 3-6 mm Tmax = 38 mm Tmax = 32 mm Min. dia. = 48 mm Min. dia. = 30 mm Economical, double-ended Reinforced blades carrying blades carrying HELIFACE TNF 3-6C inserts. Recommended and GRIP inserts. for face grooving only. Recommended for deep face Can machine along a shaft. grooving and face turning to a Excellent chip evacuation. maximum depth of 38 mm. 428 428 ISCAR ISCAR
