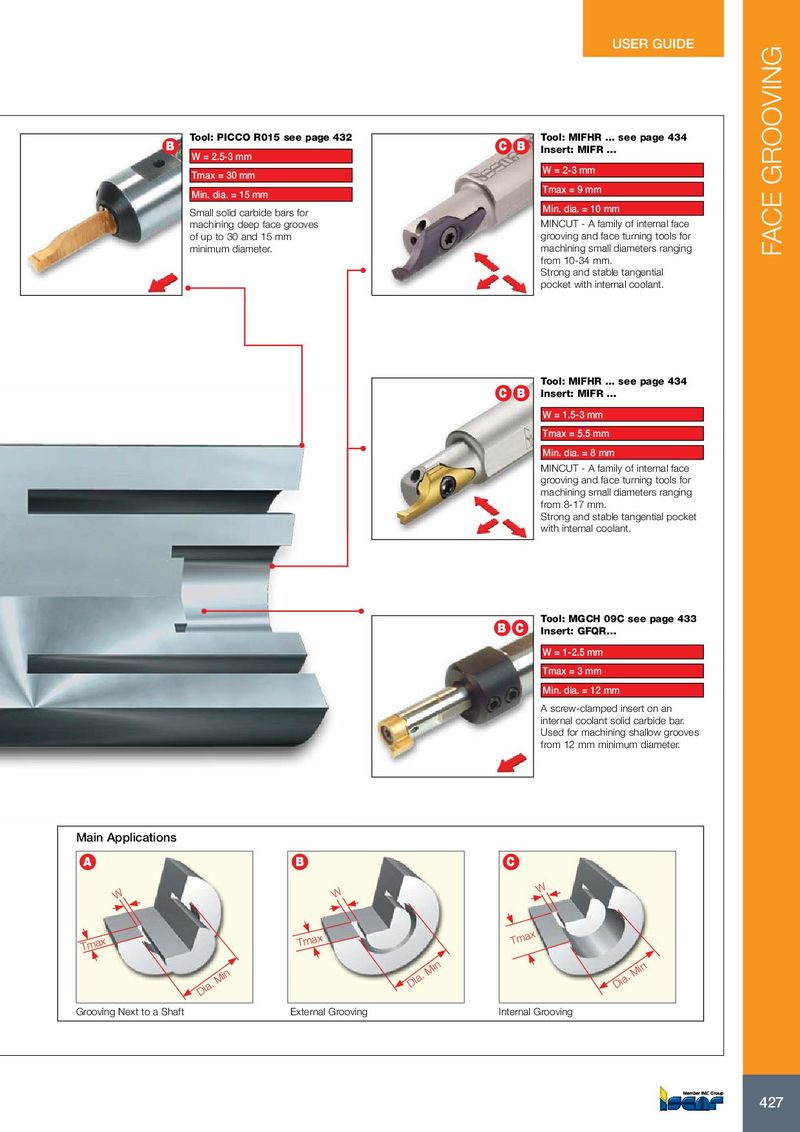

USER GUIDE Tool: PICCO R015 see page 432 Tool: MIFHR ... see page 434 B C B Insert: MIFR … W = 2.5-3 mm W = 2-3 mm Tmax = 30 mm Tmax = 9 mm Min. dia. = 15 mm Small solid carbide bars for Min. dia. = 10 mm machining deep face grooves MINCUT - A family of internal face of up to 30 and 15 mm grooving and face turning tools for minimum diameter. machining small diameters ranging FACE GROOVING from 10-34 mm. Strong and stable tangential pocket with internal coolant. Tool: MIFHR ... see page 434 C B Insert: MIFR … W = 1.5-3 mm Tmax = 5.5 mm Min. dia. = 8 mm MINCUT - A family of internal face grooving and face turning tools for machining small diameters ranging from 8-17 mm. Strong and stable tangential pocket with internal coolant. Tool: MGCH 09C see page 433 B C Insert: GFQR… W = 1-2.5 mm Tmax = 3 mm Min. dia. = 12 mm A screw-clamped insert on an internal coolant solid carbide bar. Used for machining shallow grooves from 12 mm minimum diameter. Main Applications A B C W W W Tmax Tmax Tmax Dia. Min Dia. Min Dia. Min Grooving Next to a Shaft External Grooving Internal Grooving 427 427
