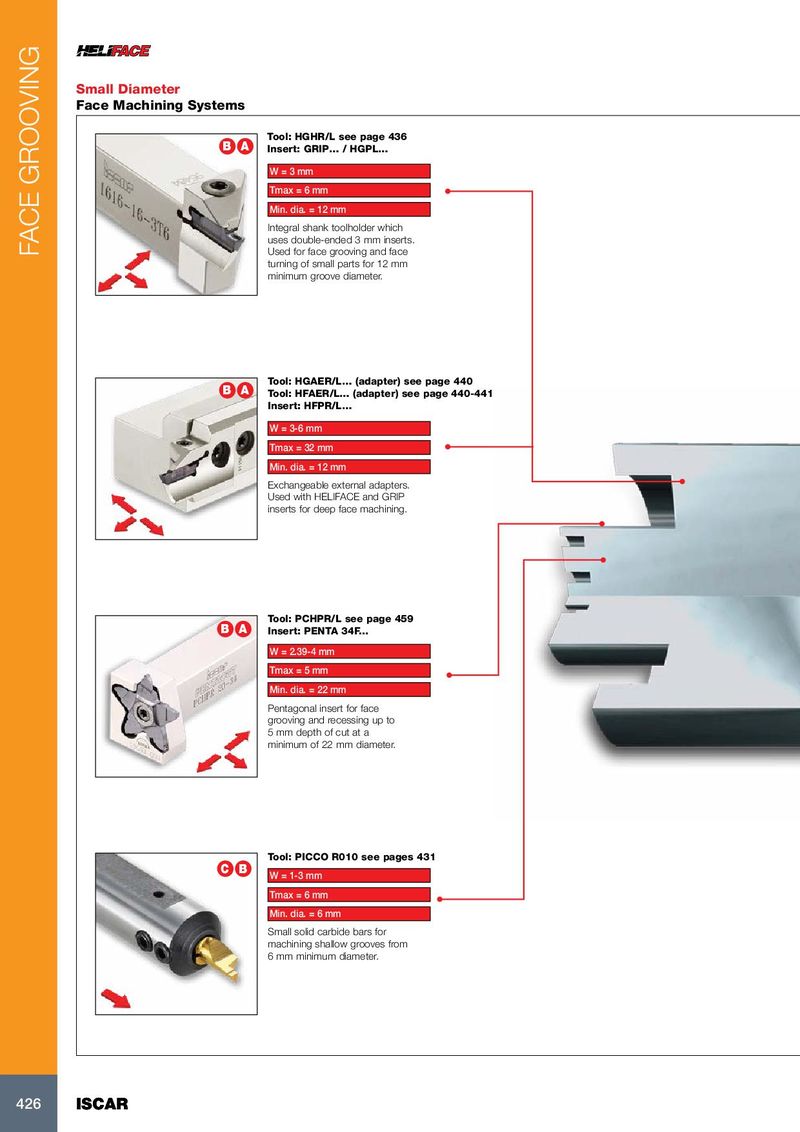

Small Diameter

Face Machining Systems

B A

Tool: HGHR/L see page 436 Insert: GRIP… / HGPL… W = 3 mm Tmax = 6 mm Min. dia. = 12 mm Integral shank toolholder which uses double-ended 3 mm inserts. Used for face grooving and face turning of small parts for 12 mm minimum groove diameter.

Tool: HGAER/L… (adapter) see page 440

B A Tool: HFAER/L… (adapter) see page 440-441

Insert: HFPR/L… W = 3-6 mm Tmax = 32 mm Min. dia. = 12 mm Exchangeable external adapters. Used with HELIFACE and GRIP inserts for deep face machining.

Tool: PCHPR/L see page 459

B A Insert: PENTA 34F...

W = 2.39-4 mm Tmax = 5 mm Min. dia. = 22 mm Pentagonal insert for face grooving and recessing up to 5 mm depth of cut at a minimum of 22 mm diameter.

Tool: PICCO R010 see pages 431

C B

W = 1-3 mm Tmax = 6 mm Min. dia. = 6 mm Small solid carbide bars for machining shallow grooves from 6 mm minimum diameter.
