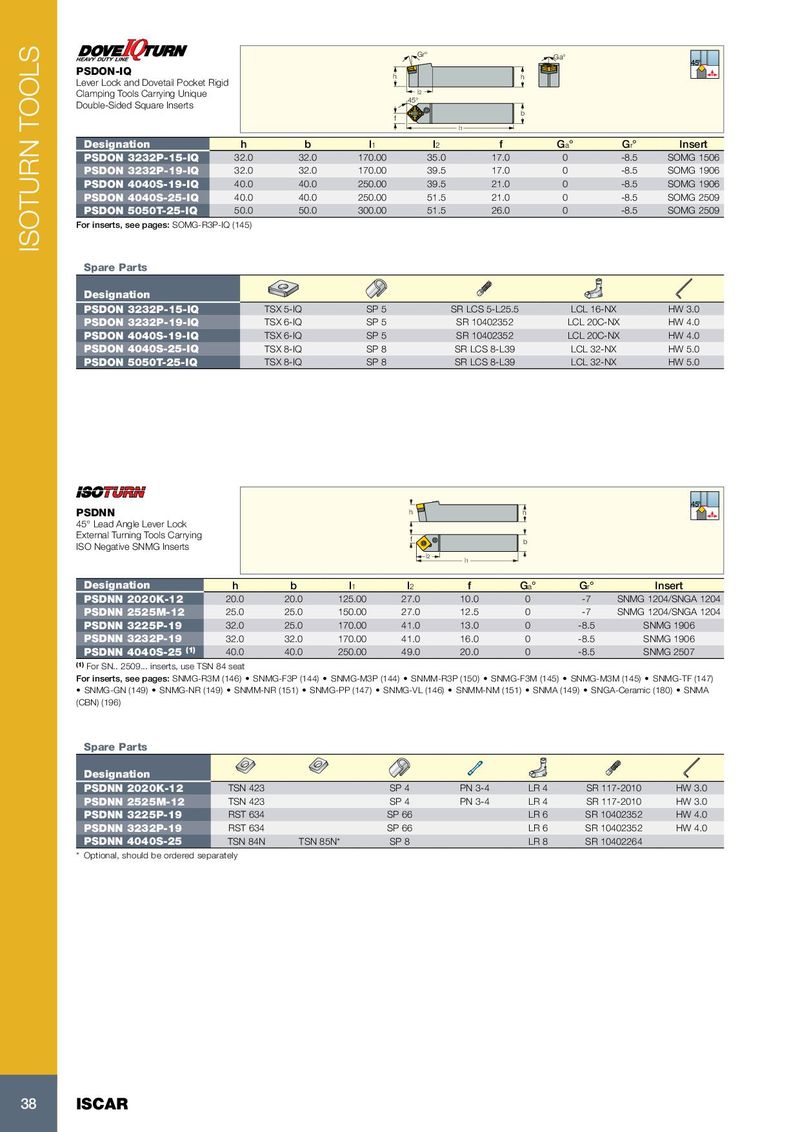

| PSDON-IQ Lever Lock and Dovetail Pocket Rig | id | Gr° h | h Ga° | 45° | |||
| Clamping Tools Carrying Unique Double-Sided Square Inserts | l2 l1 f 45° | b | |||||
| Designation | h | b | l1 l2 | f | Ga° | Gr° | Insert |
| PSDON 3232P-15-IQ | 32.0 | 32.0 | 170.00 35.0 | 17.0 | 0 | -8.5 | SOMG 1506 |
| PSDON 3232P-19-IQ | 32.0 | 32.0 | 170.00 39.5 | 17.0 | 0 | -8.5 | SOMG 1906 |
| PSDON 4040S-19-IQ | 40.0 | 40.0 | 250.00 39.5 | 21.0 | 0 | -8.5 | SOMG 1906 |
| PSDON 4040S-25-IQ | 40.0 | 40.0 | 250.00 51.5 | 21.0 | 0 | -8.5 | SOMG 2509 |
| PSDON 5050T-25-IQ | 50.0 | 50.0 | 300.00 51.5 | 26.0 | 0 | -8.5 | SOMG 2509 |
For inserts, see pages: SOMG-R3P-IQ (145)
Spare Parts
| Designation | |||||
| PSDON 3232P-15-IQ | TSX 5-IQ | SP 5 | SR LCS 5-L25.5 | LCL 16-NX | HW 3.0 |
| PSDON 3232P-19-IQ | TSX 6-IQ | SP 5 | SR 10402352 | LCL 20C-NX | HW 4.0 |
| PSDON 4040S-19-IQ | TSX 6-IQ | SP 5 | SR 10402352 | LCL 20C-NX | HW 4.0 |
| PSDON 4040S-25-IQ | TSX 8-IQ | SP 8 | SR LCS 8-L39 | LCL 32-NX | HW 5.0 |
| PSDON 5050T-25-IQ | TSX 8-IQ | SP 8 | SR LCS 8-L39 | LCL 32-NX | HW 5.0 |
45°
PSDNN h h
45° Lead Angle Lever Lock External Turning Tools Carrying f b ISO Negative SNMG Inserts
l 2 l 1
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |
| PSDNN 2020K-12 | 20.0 | 20.0 | 125.00 | 27.0 | 10.0 | 0 | -7 | SNMG 1204/SNGA 1204 | |
| PSDNN 2525M-12 | 25.0 | 25.0 | 150.00 | 27.0 | 12.5 | 0 | -7 | SNMG 1204/SNGA 1204 | |
| PSDNN 3225P-19 | 32.0 | 25.0 | 170.00 | 41.0 | 13.0 | 0 | -8.5 | SNMG 1906 | |
| PSDNN 3232P-19 | 32.0 | 32.0 | 170.00 | 41.0 | 16.0 | 0 | -8.5 | SNMG 1906 | |
| PSDNN 4040S-25 (1) | 40.0 | 40.0 | 250.00 | 49.0 | 20.0 | 0 | -8.5 | SNMG 2507 |
(1) For SN.. 2509... inserts, use TSN 84 seat For inserts, see pages: SNMG-R3M (146) SNMG-F3P (144) SNMG-M3P (144) SNMM-R3P (150) SNMG-F3M (145) SNMG-M3M (145) SNMG-TF (147)
- SNMG-GN (149)
- SNMG-NR (149)
- SNMM-NR (151)
- SNMG-PP (147)
- SNMG-VL (146)
- SNMM-NM (151)
- SNMA (149)
- SNGA-Ceramic (180)
- SNMA
(CBN) (196)
Spare Parts
| Designation | |||||||
| PSDNN 2020K-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 | |
| PSDNN 2525M-12 | TSN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | HW 3.0 | |
| PSDNN 3225P-19 | RST 634 | SP 66 | LR 6 | SR 10402352 | HW 4.0 | ||
| PSDNN 3232P-19 | RST 634 | SP 66 | LR 6 | SR 10402352 | HW 4.0 | ||
| PSDNN 4040S-25 | TSN 84N | TSN 85N | SP 8 | LR 8 | SR 10402264 |
* Optional, should be ordered separately
