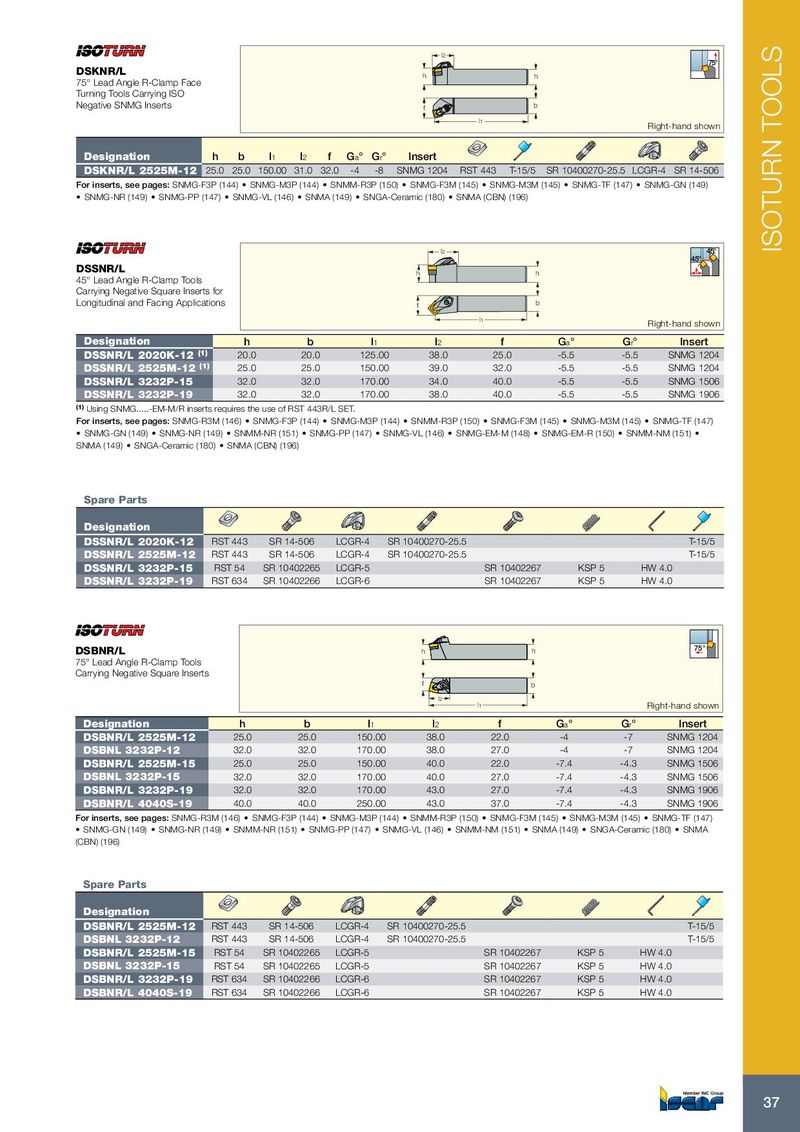

DSKNR/L
| 75° Lead Angle R-Clamp Face | h | h | ||
| Turning Tools Carrying ISO | ||||
| Negative SNMG Inserts | b | |||
| f | ||||
| l1 | Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° Gr° | Insert | ||||
| DSKNR/L 2525M-12 | 25.0 25.0 150.00 31.0 32.0 | -4 | -8 | SNMG 1204 | RST 443 | T-15/5 SR 10400270-25.5 LCGR-4 SR 14-506 |
For inserts, see pages: SNMG-F3P (144) SNMG-M3P (144) SNMM-R3P (150) SNMG-F3M (145) SNMG-M3M (145) SNMG-TF (147) SNMG-GN (149)
- SNMG-NR (149)
- SNMG-PP (147)
- SNMG-VL (146)
- SNMA (149)
- SNGA-Ceramic (180)
- SNMA (CBN) (196)
| DSSNR/L 45° Lead Angle R-Clamp Tools | h l2 | h | 45° 45° | ||||||
| Carrying Negative Square Inserts for Longitudinal and Facing Applications | f | l1 | b | R | ight-hand shown | ||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |
| DSSNR/L 2020K-12(1) | 20.0 | 20.0 | 125.00 | 38.0 | 25.0 | -5.5 | -5.5 | SNMG 1204 | |
| DSSNR/L 2525M-12(1) | 25.0 | 25.0 | 150.00 | 39.0 | 32.0 | -5.5 | -5.5 | SNMG 1204 | |
| DSSNR/L 3232P-15 | 32.0 | 32.0 | 170.00 | 34.0 | 40.0 | -5.5 | -5.5 | SNMG 1506 | |
| DSSNR/L 3232P-19 | 32.0 | 32.0 | 170.00 | 38.0 | 40.0 | -5.5 | -5.5 | SNMG 1906 |
(1) Using SNMG.....-EM-M/R inserts requires the use of RST 443R/L SET. For inserts, see pages: SNMG-R3M (146) SNMG-F3P (144) SNMG-M3P (144) SNMM-R3P (150) SNMG-F3M (145) SNMG-M3M (145) SNMG-TF (147)
- SNMG-GN (149)
- SNMG-NR (149)
- SNMM-NR (151)
- SNMG-PP (147)
- SNMG-VL (146)
- SNMG-EM-M (148)
- SNMG-EM-R (150)
- SNMM-NM (151)
SNMA (149) SNGA-Ceramic (180) SNMA (CBN) (196)
Spare Parts
| Designation | ||||||||
| DSSNR/L 2020K-12 | RST 443 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 | |||
| DSSNR/L 2525M-12 | RST 443 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 | |||
| DSSNR/L 3232P-15 | RST 54 | SR 10402265 | LCGR-5 | SR 10402267 | KSP 5 | HW 4.0 | ||
| DSSNR/L 3232P-19 | RST 634 | SR 10402266 | LCGR-6 | SR 10402267 | KSP 5 | HW 4.0 |
| DSBNR/L | h | h | 75° | |||||
| 75° Lead Angle R-Clamp Tools | ||||||||
| Carrying Negative Square Inserts | f l2 | l1 | b | Right-hand shown | ||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert |
| DSBNR/L 2525M-12 | 25.0 | 25.0 | 150.00 | 38.0 | 22.0 | -4 | -7 | SNMG 1204 |
| DSBNL 3232P-12 | 32.0 | 32.0 | 170.00 | 38.0 | 27.0 | -4 | -7 | SNMG 1204 |
| DSBNR/L 2525M-15 | 25.0 | 25.0 | 150.00 | 40.0 | 22.0 | -7.4 | -4.3 | SNMG 1506 |
| DSBNL 3232P-15 | 32.0 | 32.0 | 170.00 | 40.0 | 27.0 | -7.4 | -4.3 | SNMG 1506 |
| DSBNR/L 3232P-19 | 32.0 | 32.0 | 170.00 | 43.0 | 27.0 | -7.4 | -4.3 | SNMG 1906 |
| DSBNR/L 4040S-19 | 40.0 | 40.0 | 250.00 | 43.0 | 37.0 | -7.4 | -4.3 | SNMG 1906 |
For inserts, see pages: SNMG-R3M (146) SNMG-F3P (144) SNMG-M3P (144) SNMM-R3P (150) SNMG-F3M (145) SNMG-M3M (145) SNMG-TF (147)
- SNMG-GN (149)
- SNMG-NR (149)
- SNMM-NR (151)
- SNMG-PP (147)
- SNMG-VL (146)
- SNMM-NM (151)
- SNMA (149)
- SNGA-Ceramic (180)
- SNMA
(CBN) (196)
| Spare Parts | ||||||||
| Designation | ||||||||
| DSBNR/L 2525M-12 | RST 443 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 | |||
| DSBNL 3232P-12 | RST 443 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 | |||
| DSBNR/L 2525M-15 | RST 54 | SR 10402265 | LCGR-5 | SR 10402267 | KSP 5 | HW 4.0 | ||
| DSBNL 3232P-15 | RST 54 | SR 10402265 | LCGR-5 | SR 10402267 | KSP 5 | HW 4.0 | ||
| DSBNR/L 3232P-19 | RST 634 | SR 10402266 | LCGR-6 | SR 10402267 | KSP 5 | HW 4.0 | ||
| DSBNR/L 4040S-19 | RST 634 | SR 10402266 | LCGR-6 | SR 10402267 | KSP 5 | HW 4.0 |
