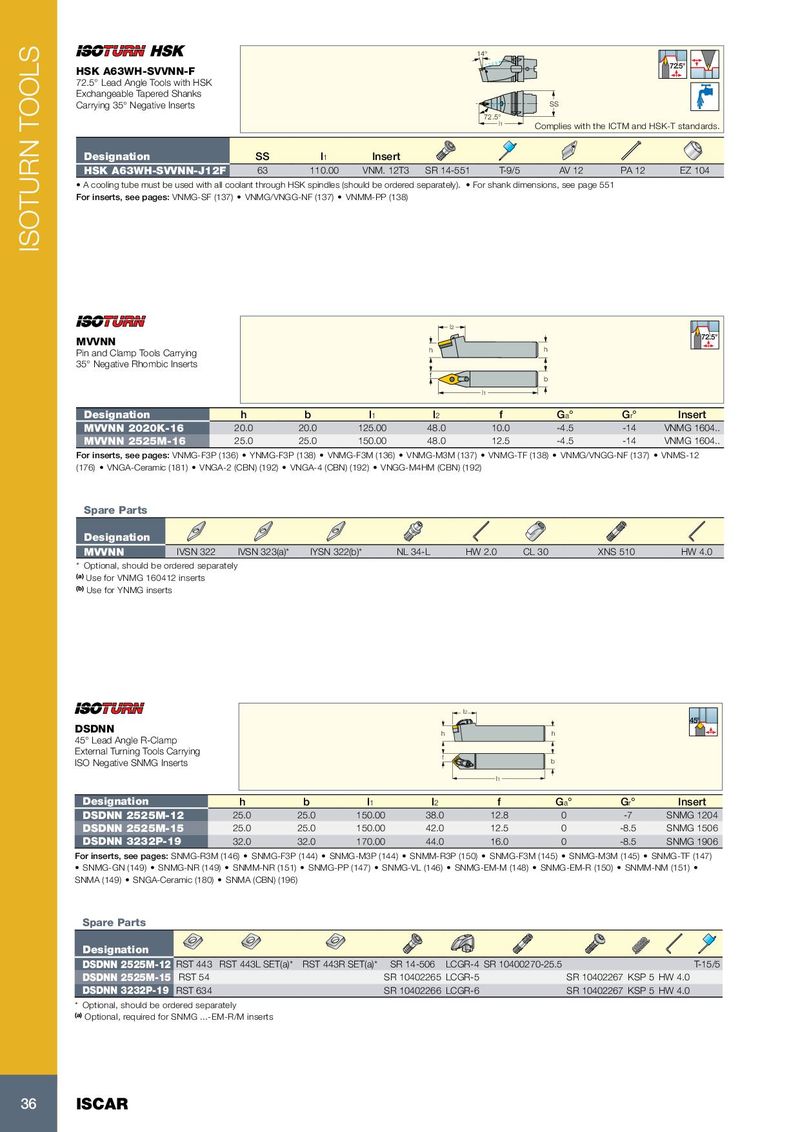

| HSK A63WH-SVVNN-F 72.5° Lead Angle Tools with HSK | 14° | 72.5° | |||
| Exchangeable Tapered Shanks Carrying 35° Negative Inserts | 72.5° SS | ||||
| l1 Complies with th | e ICTM and HSK-T standards. | ||||
| Designation | SS | l1 | Insert | ||
| HSK A63WH-SVVNN-J12F | 63 | 110.00 | VNM. 12T3 | SR 14-551 T-9/5 AV 12 | PA 12 EZ 104 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
- For shank dimensions, see page 551
For inserts, see pages: VNMG-SF (137) VNMG/VNGG-NF (137) VNMM-PP (138)
l2 MVVNN 72.5°
| Pin and Clamp Tools Carrying | h | h | |
| 35° Negative Rhombic Inserts | |||
| f | |||
| b | |||
| l 1 |
| Designation | h | b | l1 | l2 | f | G a° | Gr° | Insert | ||
| MVVNN 2020K-16 | 20.0 | 20.0 | 125.00 | 48.0 | 10.0 | -4.5 | -14 | VNMG 1604.. | ||
| MVVNN 2525M-16 | 25.0 | 25.0 | 150.00 | 48.0 | 12.5 | -4.5 | -14 | VNMG 1604.. |
For inserts, see pages: VNMG-F3P (136) YNMG-F3P (138) VNMG-F3M (136) VNMG-M3M (137) VNMG-TF (138) VNMG/VNGG-NF (137) VNMS-12 (176) VNGA-Ceramic (181) VNGA-2 (CBN) (192) VNGA-4 (CBN) (192) VNGG-M4HM (CBN) (192)
Spare Parts
| Designation | |||||||
| MVVNN | IVSN 322 | IVSN 323(a) IYSN 322(b) | NL 34-L | HW 2.0 | CL 30 | XNS 510 | HW 4.0 |
- Optional, should be ordered separately
(a) Use for VNMG 160412 inserts (b) Use for YNMG inserts
| DSDNN 45° Lead Angle R-Clamp | l2 h | h | 45° | ||||
| External Turning Tools Carrying ISO Negative SNMG Inserts | f l1 | b | |||||
| Designation | h | b | l1 | l2 f | Ga° | Gr° | Insert |
| DSDNN 2525M-12 | 25.0 | 25.0 | 150.00 | 38.0 12.8 | 0 | -7 | SNMG 1204 |
| DSDNN 2525M-15 | 25.0 | 25.0 | 150.00 | 42.0 12.5 | 0 | -8.5 | SNMG 1506 |
| DSDNN 3232P-19 | 32.0 | 32.0 | 170.00 | 44.0 16.0 | 0 | -8.5 | SNMG 1906 |
For inserts, see pages: SNMG-R3M (146) SNMG-F3P (144) SNMG-M3P (144) SNMM-R3P (150) SNMG-F3M (145) SNMG-M3M (145) SNMG-TF (147)
- SNMG-GN (149)
- SNMG-NR (149)
- SNMM-NR (151)
- SNMG-PP (147)
- SNMG-VL (146)
- SNMG-EM-M (148)
- SNMG-EM-R (150)
- SNMM-NM (151)
SNMA (149) SNGA-Ceramic (180) SNMA (CBN) (196)
Spare Parts
| Designation | |||||
| DSDNN 2525M-12 | RST 443 RST 443L SET(a) | RST 443R SET(a) | SR 14-506 | LCGR-4 SR 10400270-25.5 | T-15/5 |
| DSDNN 2525M-15 | RST 54 | SR 10402265 | LCGR-5 | SR 10402267 KSP 5 HW 4.0 | |
| DSDNN 3232P-19 | RST 634 | SR 10402266 | LCGR-6 | SR 10402267 KSP 5 HW 4.0 |
- Optional, should be ordered separately
(a) Optional, required for SNMG ...-EM-R/M inserts
