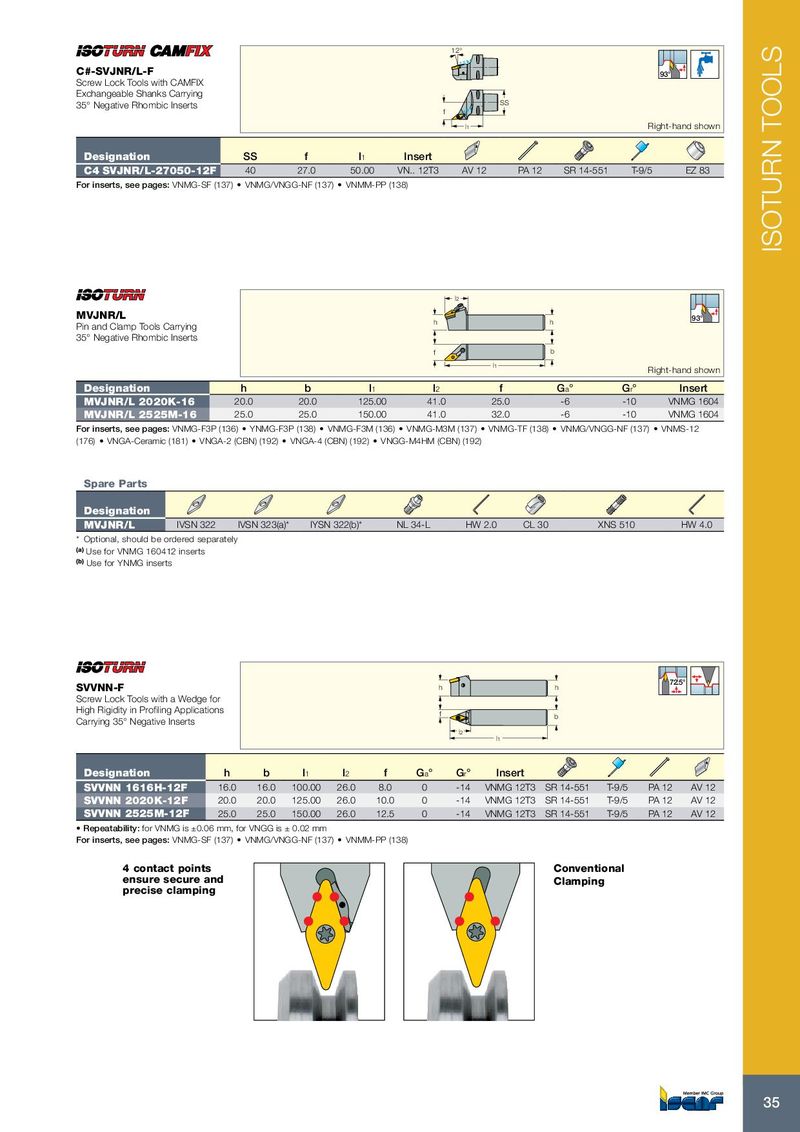

Каталог Iscar токарный инструмент 2017 - страница 39
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| C#-SVJNR/L-F Screw Lock Tools with CAMFIX | 12° | 93° | ||||
| Exchangeable Shanks Carrying 35° Negative Rhombic Inserts | SS l1 f | Right-hand shown | ||||
| Designation | SS | f | l1 | Insert | ||
| C4 SVJNR/L-27050-12F | 40 | 27.0 | 50.00 | VN.. 12T3 AV 12 | PA 12 SR 14-551 | T-9/5 EZ 83 |
For inserts, see pages: VNMG-SF (137) VNMG/VNGG-NF (137) VNMM-PP (138)
l 2
MVJNR/L
h 93° Pin and Clamp Tools Carrying h 35° Negative Rhombic Inserts f b l1 Right-hand shown
| Designation | h | b | l1 | l2 | f | G a° | Gr° | Insert | |
| MVJNR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 41.0 | 25.0 | -6 | -10 | VNMG 1604 | |
| MVJNR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 41.0 | 32.0 | -6 | -10 | VNMG 1604 |
For inserts, see pages: VNMG-F3P (136) YNMG-F3P (138) VNMG-F3M (136) VNMG-M3M (137) VNMG-TF (138) VNMG/VNGG-NF (137) VNMS-12 (176) VNGA-Ceramic (181) VNGA-2 (CBN) (192) VNGA-4 (CBN) (192) VNGG-M4HM (CBN) (192)
| Spare Parts | ||||||||
| Designation | ||||||||
| MVJNR/L | IVSN 322 | IVSN 323(a) | IYSN 322(b) | NL 34-L | HW 2.0 | CL 30 | XNS 510 | HW 4.0 |
* Optional, should be ordered separately (a) Use for VNMG 160412 inserts (b) Use for YNMG inserts
SVVNN-F 72.5° h h Screw Lock Tools with a Wedge for High Rigidity in Profiling Applications f b Carrying 35° Negative Inserts l2 l1
| Designation | h | b | l1 | l2 | f | G a° | Gr° | Insert | ||||
| SVVNN 1616H-12F | 16.0 | 16.0 | 100.00 | 26.0 | 8.0 | 0 | -14 | VNMG 12T3 SR 14-551 | T-9/5 | PA 12 | AV 12 | |
| SVVNN 2020K-12F | 20.0 | 20.0 | 125.00 | 26.0 | 10.0 | 0 | -14 | VNMG 12T3 SR 14-551 | T-9/5 | PA 12 | AV 12 | |
| SVVNN 2525M-12F | 25.0 | 25.0 | 150.00 | 26.0 | 12.5 | 0 | -14 | VNMG 12T3 SR 14-551 | T-9/5 | PA 12 | AV 12 |
- Repeatability: for VNMG is ±0.06 mm, for VNGG is ± 0.02 mm
For inserts, see pages: VNMG-SF (137) VNMG/VNGG-NF (137) VNMM-PP (138)
