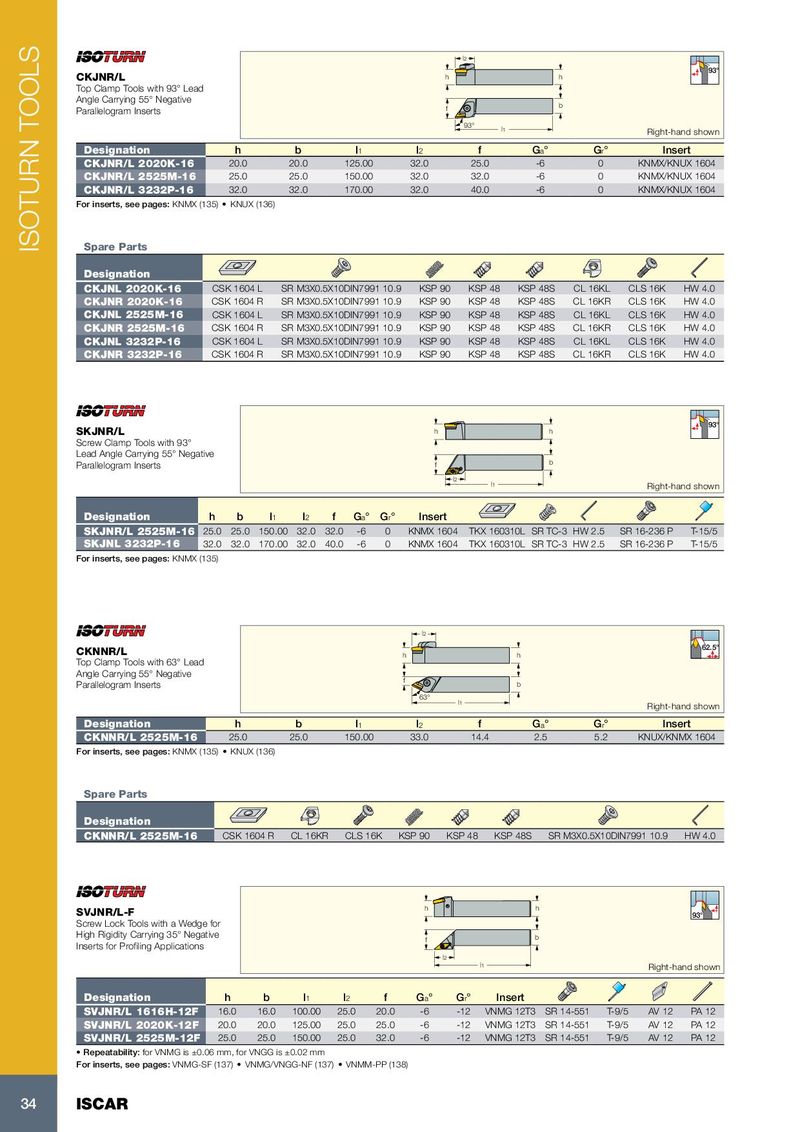

| CKJNR/L | l2 h | h 93° | |||
| Top Clamp Tools with 93° Lead Angle Carrying 55° Negative Parallelogram Inserts | f l1 93° | b Right-hand shown | |||
| Designation | h | b | l1 | l2 f | Ga° Gr° Insert |
| CKJNR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 32.0 25.0 | -6 0 KNMX/KNUX 1604 |
| CKJNR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 32.0 32.0 | -6 0 KNMX/KNUX 1604 |
| CKJNR/L 3232P-16 | 32.0 | 32.0 | 170.00 | 32.0 40.0 | -6 0 KNMX/KNUX 1604 |
For inserts, see pages: KNMX (135) KNUX (136)
| Spare Parts | ||||||||
| Designation | ||||||||
| CKJNL 2020K-16 | CSK 1604 L | SR M3X0.5X10DIN7991 10.9 | KSP 90 | KSP 48 | KSP 48S | CL 16KL | CLS 16K | HW 4.0 |
| CKJNR 2020K-16 | CSK 1604 R | SR M3X0.5X10DIN7991 10.9 | KSP 90 | KSP 48 | KSP 48S | CL 16KR | CLS 16K | HW 4.0 |
| CKJNL 2525M-16 | CSK 1604 L | SR M3X0.5X10DIN7991 10.9 | KSP 90 | KSP 48 | KSP 48S | CL 16KL | CLS 16K | HW 4.0 |
| CKJNR 2525M-16 | CSK 1604 R | SR M3X0.5X10DIN7991 10.9 | KSP 90 | KSP 48 | KSP 48S | CL 16KR | CLS 16K | HW 4.0 |
| CKJNL 3232P-16 | CSK 1604 L | SR M3X0.5X10DIN7991 10.9 | KSP 90 | KSP 48 | KSP 48S | CL 16KL | CLS 16K | HW 4.0 |
| CKJNR 3232P-16 | CSK 1604 R | SR M3X0.5X10DIN7991 10.9 | KSP 90 | KSP 48 | KSP 48S | CL 16KR | CLS 16K | HW 4.0 |
| SKJNR/L | h | h | 93° | |||||||||
| Screw Clamp Tools with 93° Lead Angle Carrying 55° Nega Parallelogram Inserts | tive | f l2 | l1 | b | Right-ha | nd shown | ||||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° Insert | |||||
| SKJNR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 32.0 | 32.0 | -6 | 0 KNMX 1604 | TKX 160310L | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 |
| SKJNL 3232P-16 | 32.0 | 32.0 | 170.00 | 32.0 | 40.0 | -6 | 0 KNMX 1604 | TKX 160310L | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 |
For inserts, see pages: KNMX (135)
l 2 CKNNR/L 62.5° h h Top Clamp Tools with 63° Lead Angle Carrying 55° Negative
| Parallelogram Inserts | f | b | |||
| 63° | |||||
| l 1 | Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | G r° | Insert | |
| CKNNR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 33.0 | 14.4 | 2.5 | 5.2 | KNUX/KNMX 1604 |
For inserts, see pages: KNMX (135) KNUX (136)
Spare Parts
Designation
CKNNR/L 2525M-16 CSK 1604 R CL 16KR CLS 16K KSP 90 KSP 48 KSP 48S SR M3X0.5X10DIN7991 10.9 HW 4.0
| SVJNR/L-F | h | h | 93° | |||||||||
| Screw Lock Tools with a Wedge f | or | |||||||||||
| High Rigidity Carrying 35° Negati Inserts for Profiling Applications | ve | f | b | |||||||||
| l2 | l1 | Right-ha | nd shown | |||||||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | ||||
| SVJNR/L 1616H-12F | 16.0 | 16.0 | 100.00 | 25.0 | 20.0 | -6 | -12 | VNMG 12T3 | SR 14-551 | T-9/5 | AV 12 | PA 12 |
| SVJNR/L 2020K-12F | 20.0 | 20.0 | 125.00 | 25.0 | 25.0 | -6 | -12 | VNMG 12T3 | SR 14-551 | T-9/5 | AV 12 | PA 12 |
| SVJNR/L 2525M-12F | 25.0 | 25.0 | 150.00 | 25.0 | 32.0 | -6 | -12 | VNMG 12T3 | SR 14-551 | T-9/5 | AV 12 | PA 12 |
- Repeatability: for VNMG is ±0.06 mm, for VNGG is ±0.02 mm
For inserts, see pages: VNMG-SF (137) VNMG/VNGG-NF (137) VNMM-PP (138)
