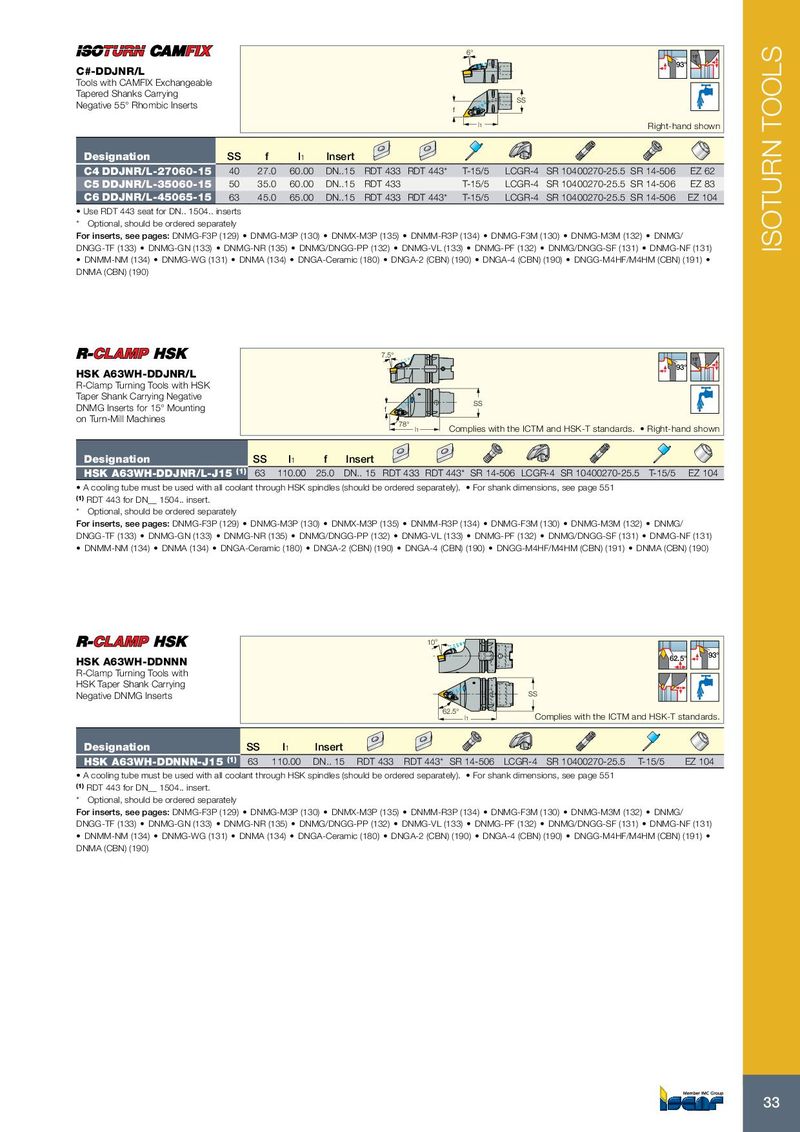

| C#-DDJNR/L Tools with CAMFIX Exchangeable Tapered Shanks Carrying Negative 55° Rhombic Inserts | 6° f l1 | SS | Right-ha 9 | nd shown 3° 15° | |||||||
| Designation | SS | f | l1 | Insert | |||||||
| C4 DDJNR/L-27060-15 | 40 | 27.0 | 60.00 | DN..15 | RDT 433 | RDT 443 | T-15/5 | LCGR-4 | SR 10400270-25 | .5 SR 14-506 | EZ 62 |
| C5 DDJNR/L-35060-15 | 50 | 35.0 | 60.00 | DN..15 | RDT 433 | T-15/5 | LCGR-4 | SR 10400270-25 | .5 SR 14-506 | EZ 83 | |
| C6 DDJNR/L-45065-15 | 63 | 45.0 | 65.00 | DN..15 | RDT 433 | RDT 443 | T-15/5 | LCGR-4 | SR 10400270-25 | .5 SR 14-506 | EZ 104 |
- Use RDT 443 seat for DN.. 1504.. inserts
- Optional, should be ordered separately
For inserts, see pages: DNMG-F3P (129) DNMG-M3P (130) DNMX-M3P (135) DNMM-R3P (134) DNMG-F3M (130) DNMG-M3M (132) DNMG/ DNGG-TF (133) DNMG-GN (133) DNMG-NR (135) DNMG/DNGG-PP (132) DNMG-VL (133) DNMG-PF (132) DNMG/DNGG-SF (131) DNMG-NF (131)
- DNMM-NM (134)
- DNMG-WG (131)
- DNMA (134)
- DNGA-Ceramic (180)
- DNGA-2 (CBN) (190)
- DNGA-4 (CBN) (190)
- DNGG-M4HF/M4HM (CBN) (191)
DNMA (CBN) (190)
7.5° 15° HSK A63WH-DDJNR/L 93° R-Clamp Turning Tools with HSK Taper Shank Carrying Negative DNMG Inserts for 15° Mounting SS f on Turn-Mill Machines 78° Complies with the ICTM and HSK-T standards. Right-hand shown l 1
| Designation | SS | l1 | f | Insert | ||
| HSK A63WH-DDJNR/L-J15 (1) | 63 | 110.00 25.0 DN.. 15 RDT 433 RDT 443* SR 14-506 LCGR-4 SR 10400270-25.5 T-15/5 | EZ 104 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
- For shank dimensions, see page 551
(1) RDT 443 for DN__ 1504.. insert.
- Optional, should be ordered separately
For inserts, see pages: DNMG-F3P (129) DNMG-M3P (130) DNMX-M3P (135) DNMM-R3P (134) DNMG-F3M (130) DNMG-M3M (132) DNMG/ DNGG-TF (133) DNMG-GN (133) DNMG-NR (135) DNMG/DNGG-PP (132) DNMG-VL (133) DNMG-PF (132) DNMG/DNGG-SF (131) DNMG-NF (131)
- DNMM-NM (134)
- DNMA (134)
- DNGA-Ceramic (180)
- DNGA-2 (CBN) (190)
- DNGA-4 (CBN) (190)
- DNGG-M4HF/M4HM (CBN) (191)
- DNMA (CBN) (190)
10°
HSK A63WH-DDNNN 62.5° 93°
R-Clamp Turning Tools with HSK Taper Shank Carrying Negative DNMG Inserts SS 62.5° Complies with the ICTM and HSK-T standards.
l 1
| Designation | SS | l1 | Insert | ||||
| HSK A63WH-DDNNN-J15 (1) | 63 | 110.00 | DN.. 15 | RDT 433 RDT 443* SR 14-506 LCGR-4 SR 10400270-25.5 | T-15/5 | EZ 104 |
- A cooling tube must be used with all coolant through HSK spindles (should be ordered separately).
- For shank dimensions, see page 551
(1) RDT 443 for DN__ 1504.. insert.
- Optional, should be ordered separately
For inserts, see pages: DNMG-F3P (129) DNMG-M3P (130) DNMX-M3P (135) DNMM-R3P (134) DNMG-F3M (130) DNMG-M3M (132) DNMG/ DNGG-TF (133) DNMG-GN (133) DNMG-NR (135) DNMG/DNGG-PP (132) DNMG-VL (133) DNMG-PF (132) DNMG/DNGG-SF (131) DNMG-NF (131)
- DNMM-NM (134)
- DNMG-WG (131)
- DNMA (134)
- DNGA-Ceramic (180)
- DNGA-2 (CBN) (190)
- DNGA-4 (CBN) (190)
- DNGG-M4HF/M4HM (CBN) (191)
DNMA (CBN) (190)
