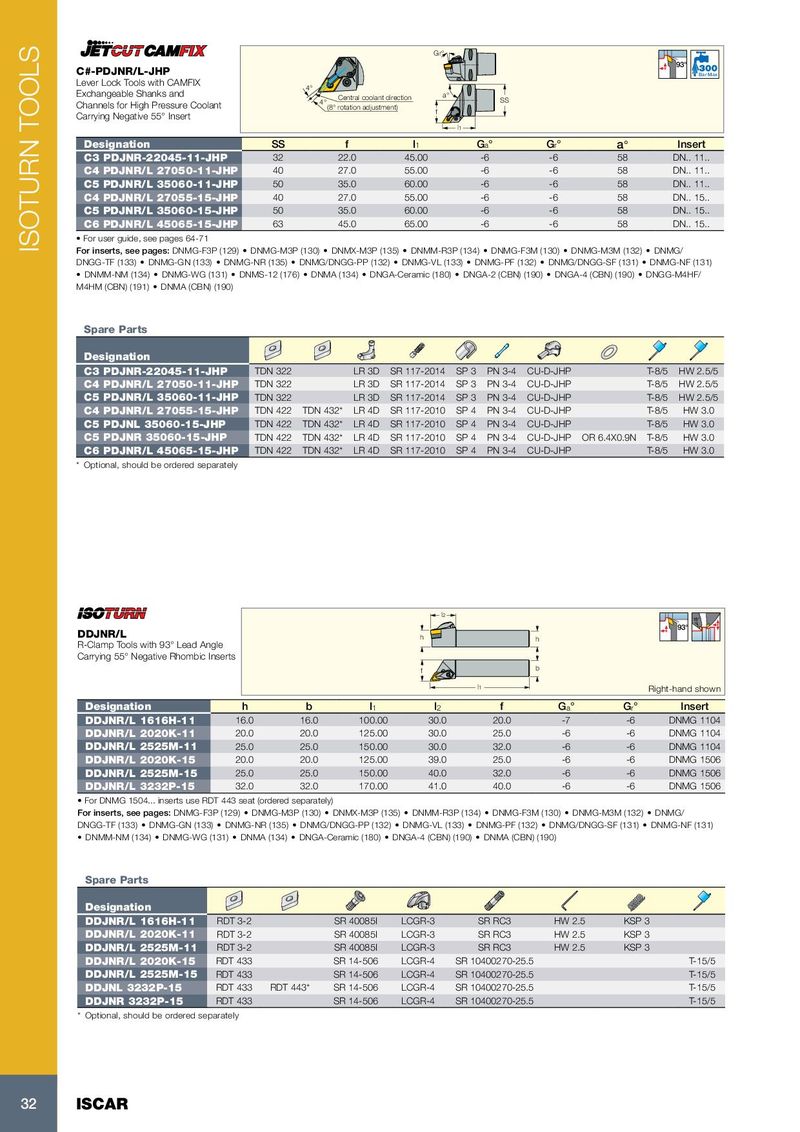

Каталог Iscar токарный инструмент 2017 - страница 36
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| C#-PDJNR/L-JHP Lever Lock Tools with CAMFIX Exchangeable Shanks and Channels for High Pressure Coolant Carrying Negative 55° Insert | Central coolant 4° 4°(8° rotation adjust | direction ment) | Gr° a° f l1 SS | 93° Bar Max | |||
| Designation | SS | f | l1 | Ga° | Gr° | a° | Insert |
| C3 PDJNR-22045-11-JHP | 32 | 22.0 | 45.00 | -6 | -6 | 58 | DN.. 11.. |
| C4 PDJNR/L 27050-11-JHP | 40 | 27.0 | 55.00 | -6 | -6 | 58 | DN.. 11.. |
| C5 PDJNR/L 35060-11-JHP | 50 | 35.0 | 60.00 | -6 | -6 | 58 | DN.. 11.. |
| C4 PDJNR/L 27055-15-JHP | 40 | 27.0 | 55.00 | -6 | -6 | 58 | DN.. 15.. |
| C5 PDJNR/L 35060-15-JHP | 50 | 35.0 | 60.00 | -6 | -6 | 58 | DN.. 15.. |
| C6 PDJNR/L 45065-15-JHP | 63 | 45.0 | 65.00 | -6 | -6 | 58 | DN.. 15.. |
- For user guide, see pages 64-71
For inserts, see pages: DNMG-F3P (129) DNMG-M3P (130) DNMX-M3P (135) DNMM-R3P (134) DNMG-F3M (130) DNMG-M3M (132) DNMG/ DNGG-TF (133) DNMG-GN (133) DNMG-NR (135) DNMG/DNGG-PP (132) DNMG-VL (133) DNMG-PF (132) DNMG/DNGG-SF (131) DNMG-NF (131)
- DNMM-NM (134)
- DNMG-WG (131)
- DNMS-12 (176)
- DNMA (134)
- DNGA-Ceramic (180)
- DNGA-2 (CBN) (190)
- DNGA-4 (CBN) (190)
- DNGG-M4HF/
M4HM (CBN) (191) DNMA (CBN) (190)
| Spare Parts | ||||||||||
| Designation | ||||||||||
| C3 PDJNR-22045-11-JHP | TDN 322 | LR 3D | SR 117-2014 | SP 3 | PN 3-4 | CU-D-JHP | T-8/5 | HW 2.5/5 | ||
| C4 PDJNR/L 27050-11-JHP | TDN 322 | LR 3D | SR 117-2014 | SP 3 | PN 3-4 | CU-D-JHP | T-8/5 | HW 2.5/5 | ||
| C5 PDJNR/L 35060-11-JHP | TDN 322 | LR 3D | SR 117-2014 | SP 3 | PN 3-4 | CU-D-JHP | T-8/5 | HW 2.5/5 | ||
| C4 PDJNR/L 27055-15-JHP | TDN 422 | TDN 432 | LR 4D | SR 117-2010 | SP 4 | PN 3-4 | CU-D-JHP | T-8/5 | HW 3.0 | |
| C5 PDJNL 35060-15-JHP | TDN 422 | TDN 432 | LR 4D | SR 117-2010 | SP 4 | PN 3-4 | CU-D-JHP | T-8/5 | HW 3.0 | |
| C5 PDJNR 35060-15-JHP | TDN 422 | TDN 432 | LR 4D | SR 117-2010 | SP 4 | PN 3-4 | CU-D-JHP | OR 6.4X0.9N | T-8/5 | HW 3.0 |
| C6 PDJNR/L 45065-15-JHP | TDN 422 | TDN 432 | LR 4D | SR 117-2010 | SP 4 | PN 3-4 | CU-D-JHP | T-8/5 | HW 3.0 |
* Optional, should be ordered separately
| DDJNR/L R-Clamp Tools with 93° Lead Angl Carrying 55° Negative Rhombic Ins | e erts | l2 h f | l1 | b h | Right-hand shown 93° 15° | ||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° Insert |
| DDJNR/L 1616H-11 | 16.0 | 16.0 | 100.00 | 30.0 | 20.0 | -7 | -6 DNMG 1104 |
| DDJNR/L 2020K-11 | 20.0 | 20.0 | 125.00 | 30.0 | 25.0 | -6 | -6 DNMG 1104 |
| DDJNR/L 2525M-11 | 25.0 | 25.0 | 150.00 | 30.0 | 32.0 | -6 | -6 DNMG 1104 |
| DDJNR/L 2020K-15 | 20.0 | 20.0 | 125.00 | 39.0 | 25.0 | -6 | -6 DNMG 1506 |
| DDJNR/L 2525M-15 | 25.0 | 25.0 | 150.00 | 40.0 | 32.0 | -6 | -6 DNMG 1506 |
| DDJNR/L 3232P-15 | 32.0 | 32.0 | 170.00 | 41.0 | 40.0 | -6 | -6 DNMG 1506 |
- For DNMG 1504... inserts use RDT 443 seat (ordered separately)
For inserts, see pages: DNMG-F3P (129) DNMG-M3P (130) DNMX-M3P (135) DNMM-R3P (134) DNMG-F3M (130) DNMG-M3M (132) DNMG/ DNGG-TF (133) DNMG-GN (133) DNMG-NR (135) DNMG/DNGG-PP (132) DNMG-VL (133) DNMG-PF (132) DNMG/DNGG-SF (131) DNMG-NF (131)
- DNMM-NM (134)
- DNMG-WG (131)
- DNMA (134)
- DNGA-Ceramic (180)
- DNGA-4 (CBN) (190)
- DNMA (CBN) (190)
| Spare Parts | ||||||||
| Designation | ||||||||
| DDJNR/L 1616H-11 | RDT 3-2 | SR 40085I | LCGR-3 | SR RC3 | HW 2.5 | KSP 3 | ||
| DDJNR/L 2020K-11 | RDT 3-2 | SR 40085I | LCGR-3 | SR RC3 | HW 2.5 | KSP 3 | ||
| DDJNR/L 2525M-11 | RDT 3-2 | SR 40085I | LCGR-3 | SR RC3 | HW 2.5 | KSP 3 | ||
| DDJNR/L 2020K-15 | RDT 433 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 | |||
| DDJNR/L 2525M-15 | RDT 433 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 | |||
| DDJNL 3232P-15 | RDT 433 | RDT 443 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 | ||
| DDJNR 3232P-15 | RDT 433 | SR 14-506 | LCGR-4 | SR 10400270-25.5 | T-15/5 |
* Optional, should be ordered separately
