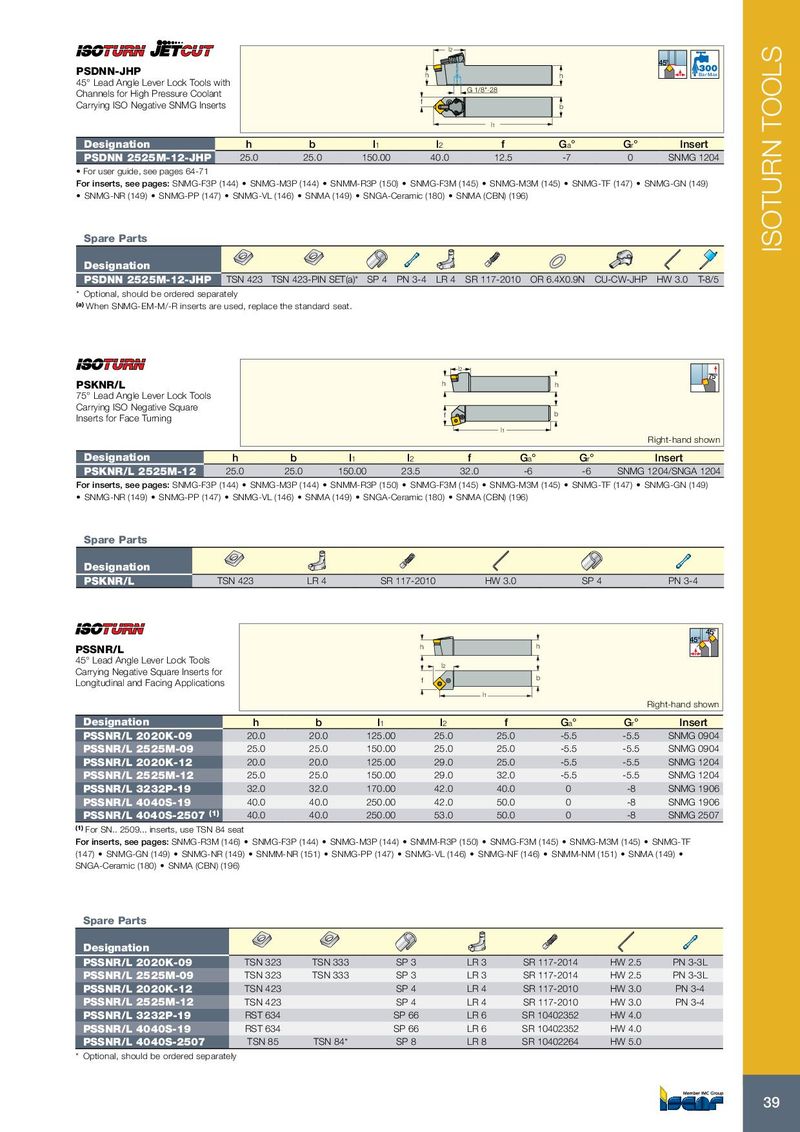

Каталог Iscar токарный инструмент 2017 - страница 43
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
PSDNN-JHP
h h Bar Max
45° Lead Angle Lever Lock Tools with Channels for High Pressure Coolant G 1/8"-28 Carrying ISO Negative SNMG Inserts f b
l1
| Designation | h | b | l1 | l2 | f | G a° | Gr° | Insert | |
| PSDNN 2525M-12-JHP | 25.0 | 25.0 | 150.00 | 40.0 | 12.5 | -7 | 0 | SNMG 1204 |
- For user guide, see pages 64-71
For inserts, see pages: SNMG-F3P (144) SNMG-M3P (144) SNMM-R3P (150) SNMG-F3M (145) SNMG-M3M (145) SNMG-TF (147) SNMG-GN (149)
- SNMG-NR (149)
- SNMG-PP (147)
- SNMG-VL (146)
- SNMA (149)
- SNGA-Ceramic (180)
- SNMA (CBN) (196)
Spare Parts
| Designation | |||
| PSDNN 2525M-12-JHP | TSN 423 TSN 423-PIN SET(a) | SP 4 PN 3-4 LR 4 SR 117-2010 | OR 6.4X0.9N CU-CW-JHP HW 3.0 T-8/5 |
* Optional, should be ordered separately (a) When SNMG-EM-M/-R inserts are used, replace the standard seat.
l2 75°
| PSKNR/L | h | h |
| 75° Lead Angle Lever Lock Tools | ||
| Carrying ISO Negative Square | ||
| Inserts for Face Turning | f | b |
| l1 | ||
| Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |
| PSKNR/L 2525M-12 | 25.0 | 25.0 | 150.00 | 23.5 | 32.0 | -6 | -6 | SNMG 1204/SNGA 1204 |
For inserts, see pages: SNMG-F3P (144) SNMG-M3P (144) SNMM-R3P (150) SNMG-F3M (145) SNMG-M3M (145) SNMG-TF (147) SNMG-GN (149)
- SNMG-NR (149)
- SNMG-PP (147)
- SNMG-VL (146)
- SNMA (149)
- SNGA-Ceramic (180)
- SNMA (CBN) (196)
Spare Parts
Designation
PSKNR/L TSN 423 LR 4 SR 117-2010 HW 3.0 SP 4 PN 3-4
| PSSNR/L | h | h | 45° 45° | ||||||
| 45° Lead Angle Lever Lock Tools Carrying Negative Square Inserts for Longitudinal and Facing Applications | f l2 | l1 | b | Right-hand shown | |||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | |
| PSSNR/L 2020K-09 | 20.0 | 20.0 | 125.00 | 25.0 | 25.0 | -5.5 | -5.5 | SNMG 0904 | |
| PSSNR/L 2525M-09 | 25.0 | 25.0 | 150.00 | 25.0 | 25.0 | -5.5 | -5.5 | SNMG 0904 | |
| PSSNR/L 2020K-12 | 20.0 | 20.0 | 125.00 | 29.0 | 25.0 | -5.5 | -5.5 | SNMG 1204 | |
| PSSNR/L 2525M-12 | 25.0 | 25.0 | 150.00 | 29.0 | 32.0 | -5.5 | -5.5 | SNMG 1204 | |
| PSSNR/L 3232P-19 | 32.0 | 32.0 | 170.00 | 42.0 | 40.0 | 0 | -8 | SNMG 1906 | |
| PSSNR/L 4040S-19 | 40.0 | 40.0 | 250.00 | 42.0 | 50.0 | 0 | -8 | SNMG 1906 | |
| PSSNR/L 4040S-2507(1) | 40.0 | 40.0 | 250.00 | 53.0 | 50.0 | 0 | -8 | SNMG 2507 |
(1) For SN.. 2509... inserts, use TSN 84 seat For inserts, see pages: SNMG-R3M (146) SNMG-F3P (144) SNMG-M3P (144) SNMM-R3P (150) SNMG-F3M (145) SNMG-M3M (145) SNMG-TF (147) SNMG-GN (149) SNMG-NR (149) SNMM-NR (151) SNMG-PP (147) SNMG-VL (146) SNMG-NF (146) SNMM-NM (151) SNMA (149) SNGA-Ceramic (180) SNMA (CBN) (196)
Spare Parts
| Designation | |||||||
| PSSNR/L 2020K-09 | TSN 323 | TSN 333 | SP 3 | LR 3 | SR 117-2014 | HW 2.5 | PN 3-3L |
| PSSNR/L 2525M-09 | TSN 323 | TSN 333 | SP 3 | LR 3 | SR 117-2014 | HW 2.5 | PN 3-3L |
| PSSNR/L 2020K-12 | TSN 423 | SP 4 | LR 4 | SR 117-2010 | HW 3.0 | PN 3-4 | |
| PSSNR/L 2525M-12 | TSN 423 | SP 4 | LR 4 | SR 117-2010 | HW 3.0 | PN 3-4 | |
| PSSNR/L 3232P-19 | RST 634 | SP 66 | LR 6 | SR 10402352 | HW 4.0 | ||
| PSSNR/L 4040S-19 | RST 634 | SP 66 | LR 6 | SR 10402352 | HW 4.0 | ||
| PSSNR/L 4040S-2507 | TSN 85 | TSN 84 | SP 8 | LR 8 | SR 10402264 | HW 5.0 |
