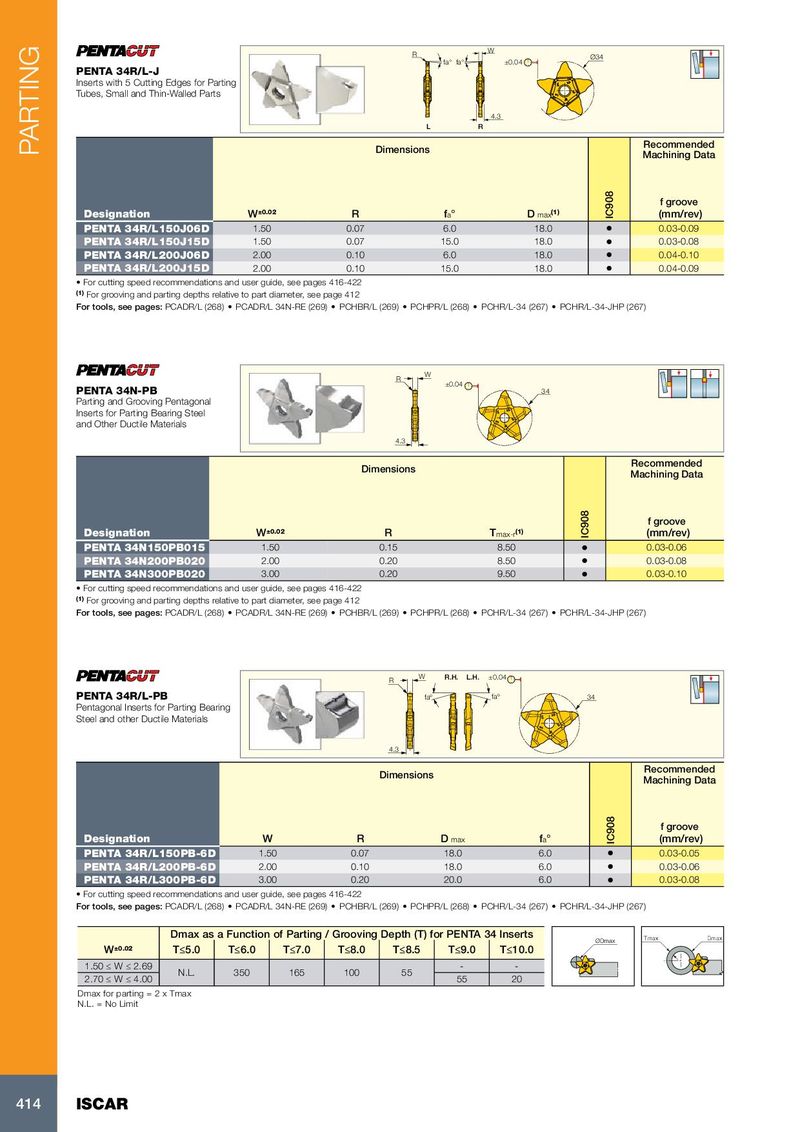

W R Ø34 fa° fa° ±0.04 PENTA 34R/L-J Inserts with 5 Cutting Edges for Parting Tubes, Small and Thin-Walled Parts 4.3 L R Recommended PARTING Dimensions Machining Data f groove Designation W ±0.02 R f a ° D max (1) IC908 (mm/rev) PENTA 34R/L150J06D 1.50 0.07 6.0 18.0 • 0.03-0.09 PENTA 34R/L150J15D 1.50 0.07 15.0 18.0 • 0.03-0.08 PENTA 34R/L200J06D 2.00 0.10 6.0 18.0 • 0.04-0.10 PENTA 34R/L200J15D 2.00 0.10 15.0 18.0 • 0.04-0.09 • For cutting speed recommendations and user guide, see pages 416-422 (1) For grooving and parting depths relative to part diameter, see page 412 For tools, see pages: PCADR/L (268) • PCADR/L 34N-RE (269) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-34 (267) • PCHR/L-34-JHP (267) R W ±0.04 PENTA 34N-PB 34 Parting and Grooving Pentagonal Inserts for Parting Bearing Steel and Other Ductile Materials 4.3 Recommended Dimensions Machining Data f groove Designation W ±0.02 R T max-r (1) IC908 (mm/rev) PENTA 34N150PB015 1.50 0.15 8.50 • 0.03-0.06 PENTA 34N200PB020 2.00 0.20 8.50 • 0.03-0.08 PENTA 34N300PB020 3.00 0.20 9.50 • 0.03-0.10 • For cutting speed recommendations and user guide, see pages 416-422 (1) For grooving and parting depths relative to part diameter, see page 412 For tools, see pages: PCADR/L (268) • PCADR/L 34N-RE (269) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-34 (267) • PCHR/L-34-JHP (267) W R R.H. L.H. ±0.04 PENTA 34R/L-PB faº faº 34 Pentagonal Inserts for Parting Bearing Steel and other Ductile Materials 4.3 Recommended Dimensions Machining Data f groove Designation W R D max f a ° IC908 (mm/rev) PENTA 34R/L150PB-6D 1.50 0.07 18.0 6.0 • 0.03-0.05 PENTA 34R/L200PB-6D 2.00 0.10 18.0 6.0 • 0.03-0.06 PENTA 34R/L300PB-6D 3.00 0.20 20.0 6.0 • 0.03-0.08 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: PCADR/L (268) • PCADR/L 34N-RE (269) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-34 (267) • PCHR/L-34-JHP (267) Dmax as a Function of Parting / Grooving Depth (T) for PENTA 34 Inserts ØDmax Tmax ÿ Dmax W ±0.02 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤8.5 T≤9.0 T≤10.0 1.50 ≤ W ≤ 2.69 - - N.L. 350 165 100 55 2.70 ≤ W ≤ 4.00 55 20 Dmax for parting = 2 x Tmax N.L. = No Limit 414 ISCAR
