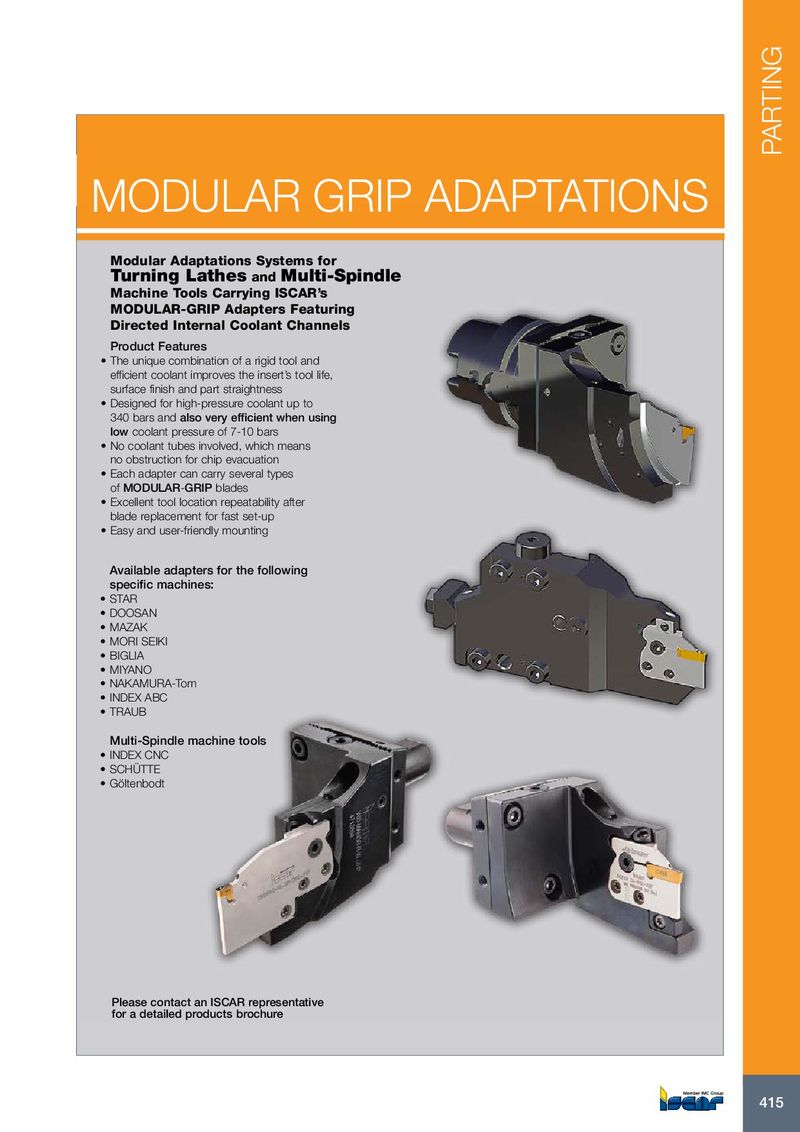

PARTING MODULAR GRIP ADAPTATIONS Parting Modular Adaptations Systems for Turning Lathes and Multi-Spindle Machine Tools Carrying ISCAR’s MODULAR-GRIP Adapters Featuring Directed Internal Coolant Channels Product Features • The unique combination of a rigid tool and efficient coolant improves the insert’s tool life, surface finish and part straightness • Designed for high-pressure coolant up to 340 bars and also very efficient when using low coolant pressure of 7-10 bars • No coolant tubes involved, which means no obstruction for chip evacuation • Each adapter can carry several types of MODULAR-GRIP blades • Excellent tool location repeatability after blade replacement for fast set-up • Easy and user-friendly mounting Available adapters for the following specific machines: • STAR • DOOSAN • MAZAK • MORI SEIKI • BIGLIA • MIYANO • NAKAMURA-Tom • INDEX ABC • TRAUB Multi-Spindle machine tools • INDEX CNC • SCHÜTTE • Göltenbodt Please contact an ISCAR representative for a detailed products brochure 415
