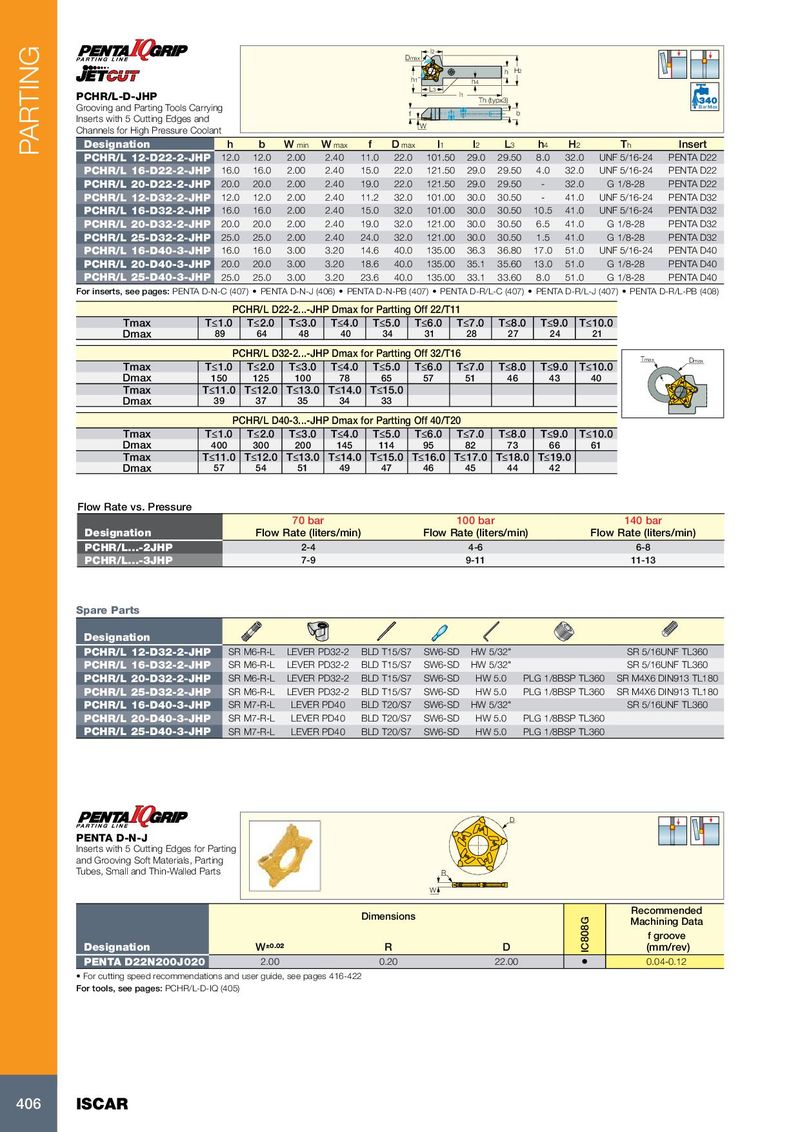

l2 Dmax h H2 h1 h4 L3 PCHR/L-D-JHP l1 Th (typx3) Grooving and Parting Tools Carrying Bar Max f b Inserts with 5 Cutting Edges and W Channels for High Pressure Coolant Designation h b W min W max f D max l 1 l 2 L 3 h 4 H 2 T h Insert PARTING PCHR/L 12-D22-2-JHP 12.0 12.0 2.00 2.40 11.0 22.0 101.50 29.0 29.50 8.0 32.0 UNF 5/16-24 PENTA D22 PCHR/L 16-D22-2-JHP 16.0 16.0 2.00 2.40 15.0 22.0 121.50 29.0 29.50 4.0 32.0 UNF 5/16-24 PENTA D22 PCHR/L 20-D22-2-JHP 20.0 20.0 2.00 2.40 19.0 22.0 121.50 29.0 29.50 - 32.0 G 1/8-28 PENTA D22 PCHR/L 12-D32-2-JHP 12.0 12.0 2.00 2.40 11.2 32.0 101.00 30.0 30.50 - 41.0 UNF 5/16-24 PENTA D32 PCHR/L 16-D32-2-JHP 16.0 16.0 2.00 2.40 15.0 32.0 101.00 30.0 30.50 10.5 41.0 UNF 5/16-24 PENTA D32 PCHR/L 20-D32-2-JHP 20.0 20.0 2.00 2.40 19.0 32.0 121.00 30.0 30.50 6.5 41.0 G 1/8-28 PENTA D32 PCHR/L 25-D32-2-JHP 25.0 25.0 2.00 2.40 24.0 32.0 121.00 30.0 30.50 1.5 41.0 G 1/8-28 PENTA D32 PCHR/L 16-D40-3-JHP 16.0 16.0 3.00 3.20 14.6 40.0 135.00 36.3 36.80 17.0 51.0 UNF 5/16-24 PENTA D40 PCHR/L 20-D40-3-JHP 20.0 20.0 3.00 3.20 18.6 40.0 135.00 35.1 35.60 13.0 51.0 G 1/8-28 PENTA D40 PCHR/L 25-D40-3-JHP 25.0 25.0 3.00 3.20 23.6 40.0 135.00 33.1 33.60 8.0 51.0 G 1/8-28 PENTA D40 For inserts, see pages: PENTA D-N-C (407) • PENTA D-N-J (406) • PENTA D-N-PB (407) • PENTA D-R/L-C (407) • PENTA D-R/L-J (407) • PENTA D-R/L-PB (408) PCHR/L D22-2...-JHP Dmax for Partting Off 22/T11 Tmax T≤1.0 T≤2.0 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0 Dmax 89 64 48 40 34 31 28 27 24 21 PCHR/L D32-2...-JHP Dmax for Partting Off 32/T16 Tmax Dmax Tmax T≤1.0 T≤2.0 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0 Dmax 150 125 100 78 65 57 51 46 43 40 Tmax T≤11.0 T≤12.0 T≤13.0 T≤14.0 T≤15.0 Dmax 39 37 35 34 33 PCHR/L D40-3...-JHP Dmax for Partting Off 40/T20 Tmax T≤1.0 T≤2.0 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0 Dmax 400 300 200 145 114 95 82 73 66 61 Tmax T≤11.0 T≤12.0 T≤13.0 T≤14.0 T≤15.0 T≤16.0 T≤17.0 T≤18.0 T≤19.0 Dmax 57 54 51 49 47 46 45 44 42 Flow Rate vs. Pressure 70 bar 100 bar 140 bar Designation Flow Rate (liters/min) Flow Rate (liters/min) Flow Rate (liters/min) PCHR/L...-2JHP 2-4 4-6 6-8 PCHR/L...-3JHP 7-9 9-11 11-13 Spare Parts Designation PCHR/L 12-D32-2-JHP SR M6-R-L LEVER PD32-2 BLD T15/S7 SW6-SD HW 5/32" SR 5/16UNF TL360 PCHR/L 16-D32-2-JHP SR M6-R-L LEVER PD32-2 BLD T15/S7 SW6-SD HW 5/32" SR 5/16UNF TL360 PCHR/L 20-D32-2-JHP SR M6-R-L LEVER PD32-2 BLD T15/S7 SW6-SD HW 5.0 PLG 1/8BSP TL360 SR M4X6 DIN913 TL180 PCHR/L 25-D32-2-JHP SR M6-R-L LEVER PD32-2 BLD T15/S7 SW6-SD HW 5.0 PLG 1/8BSP TL360 SR M4X6 DIN913 TL180 PCHR/L 16-D40-3-JHP SR M7-R-L LEVER PD40 BLD T20/S7 SW6-SD HW 5/32" SR 5/16UNF TL360 PCHR/L 20-D40-3-JHP SR M7-R-L LEVER PD40 BLD T20/S7 SW6-SD HW 5.0 PLG 1/8BSP TL360 PCHR/L 25-D40-3-JHP SR M7-R-L LEVER PD40 BLD T20/S7 SW6-SD HW 5.0 PLG 1/8BSP TL360 D PENTA D-N-J Inserts with 5 Cutting Edges for Parting and Grooving Soft Materials, Parting Tubes, Small and Thin-Walled Parts R W Recommended Dimensions Machining Data f groove Designation W ±0.02 R D IC808G (mm/rev) PENTA D22N200J020 2.00 0.20 22.00 • 0.04-0.12 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: PCHR/L-D-IQ (405) 406 ISCAR
