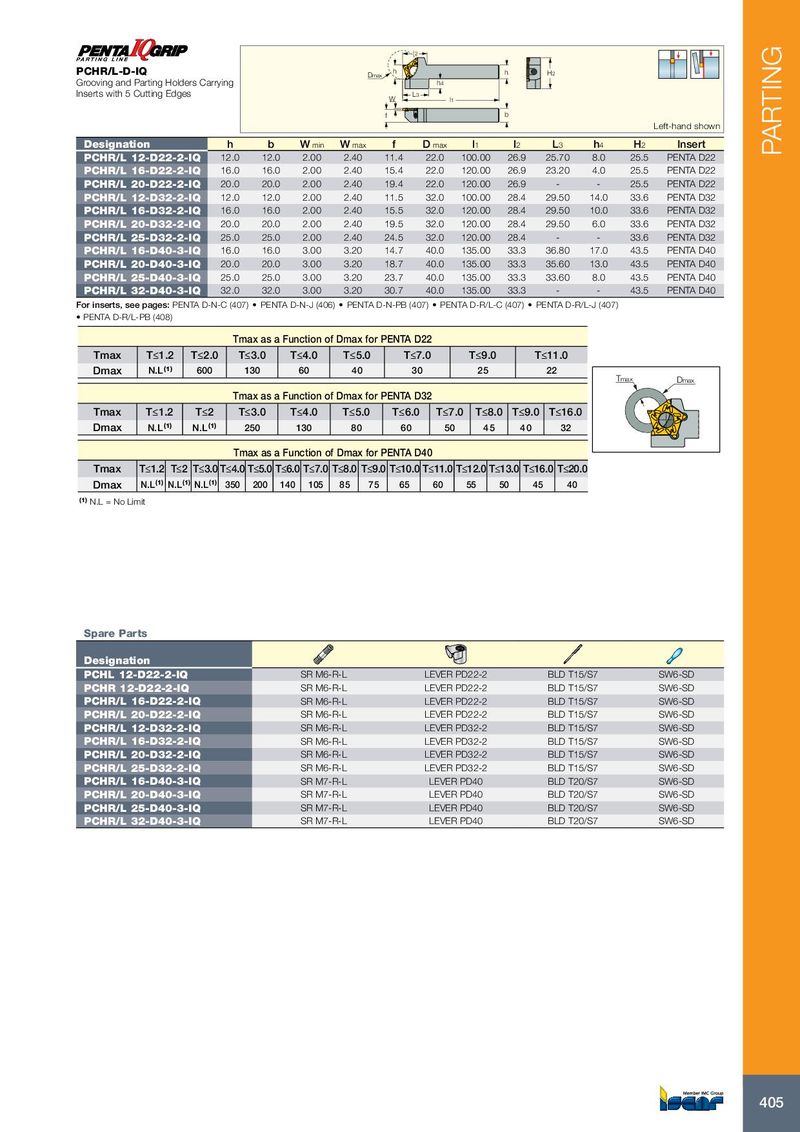

l2 PCHR/L-D-IQ D max h h H2 Grooving and Parting Holders Carrying h4 Inserts with 5 Cutting Edges L3 W l1 f b Left-hand shown Designation h b W min W max f D max l 1 l 2 L 3 h 4 H 2 Insert PARTING PCHR/L 12-D22-2-IQ 12.0 12.0 2.00 2.40 11.4 22.0 100.00 26.9 25.70 8.0 25.5 PENTA D22 PCHR/L 16-D22-2-IQ 16.0 16.0 2.00 2.40 15.4 22.0 120.00 26.9 23.20 4.0 25.5 PENTA D22 PCHR/L 20-D22-2-IQ 20.0 20.0 2.00 2.40 19.4 22.0 120.00 26.9 - - 25.5 PENTA D22 PCHR/L 12-D32-2-IQ 12.0 12.0 2.00 2.40 11.5 32.0 100.00 28.4 29.50 14.0 33.6 PENTA D32 PCHR/L 16-D32-2-IQ 16.0 16.0 2.00 2.40 15.5 32.0 120.00 28.4 29.50 10.0 33.6 PENTA D32 PCHR/L 20-D32-2-IQ 20.0 20.0 2.00 2.40 19.5 32.0 120.00 28.4 29.50 6.0 33.6 PENTA D32 PCHR/L 25-D32-2-IQ 25.0 25.0 2.00 2.40 24.5 32.0 120.00 28.4 - - 33.6 PENTA D32 PCHR/L 16-D40-3-IQ 16.0 16.0 3.00 3.20 14.7 40.0 135.00 33.3 36.80 17.0 43.5 PENTA D40 PCHR/L 20-D40-3-IQ 20.0 20.0 3.00 3.20 18.7 40.0 135.00 33.3 35.60 13.0 43.5 PENTA D40 PCHR/L 25-D40-3-IQ 25.0 25.0 3.00 3.20 23.7 40.0 135.00 33.3 33.60 8.0 43.5 PENTA D40 PCHR/L 32-D40-3-IQ 32.0 32.0 3.00 3.20 30.7 40.0 135.00 33.3 - - 43.5 PENTA D40 For inserts, see pages: PENTA D-N-C (407) • PENTA D-N-J (406) • PENTA D-N-PB (407) • PENTA D-R/L-C (407) • PENTA D-R/L-J (407) • PENTA D-R/L-PB (408) Tmax as a Function of Dmax for PENTA D22 Tmax T≤1.2 T≤2.0 T≤3.0 T≤4.0 T≤5.0 T≤7.0 T≤9.0 T≤11.0 Dmax N.L (1) 600 130 60 40 30 25 22 Tmax Dmax Tmax as a Function of Dmax for PENTA D32 Tmax T≤1.2 T≤2 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤16.0 Dmax N.L (1) N.L (1) 250 130 80 60 50 45 40 32 Tmax as a Function of Dmax for PENTA D40 Tmax T≤1.2 T≤2 T≤3.0 T≤4.0 T≤5.0 T≤6.0 T≤7.0 T≤8.0 T≤9.0 T≤10.0 T≤11.0 T≤12.0 T≤13.0 T≤16.0 T≤20.0 Dmax N.L (1) N.L (1) N.L (1) 350 200 140 105 85 75 65 60 55 50 45 40 (1) N.L = No Limit Spare Parts Designation PCHL 12-D22-2-IQ SR M6-R-L LEVER PD22-2 BLD T15/S7 SW6-SD PCHR 12-D22-2-IQ SR M6-R-L LEVER PD22-2 BLD T15/S7 SW6-SD PCHR/L 16-D22-2-IQ SR M6-R-L LEVER PD22-2 BLD T15/S7 SW6-SD PCHR/L 20-D22-2-IQ SR M6-R-L LEVER PD22-2 BLD T15/S7 SW6-SD PCHR/L 12-D32-2-IQ SR M6-R-L LEVER PD32-2 BLD T15/S7 SW6-SD PCHR/L 16-D32-2-IQ SR M6-R-L LEVER PD32-2 BLD T15/S7 SW6-SD PCHR/L 20-D32-2-IQ SR M6-R-L LEVER PD32-2 BLD T15/S7 SW6-SD PCHR/L 25-D32-2-IQ SR M6-R-L LEVER PD32-2 BLD T15/S7 SW6-SD PCHR/L 16-D40-3-IQ SR M7-R-L LEVER PD40 BLD T20/S7 SW6-SD PCHR/L 20-D40-3-IQ SR M7-R-L LEVER PD40 BLD T20/S7 SW6-SD PCHR/L 25-D40-3-IQ SR M7-R-L LEVER PD40 BLD T20/S7 SW6-SD PCHR/L 32-D40-3-IQ SR M7-R-L LEVER PD40 BLD T20/S7 SW6-SD 405
